Specifications:
- Natural Gas Batch Oven (Propane Is Optional)
- Combination of 12-24 Gauge Stainless Sheeting Inside and Out
- 12 Gauge Stainless Steel Floor
- Welded 3" C-Channel Construction

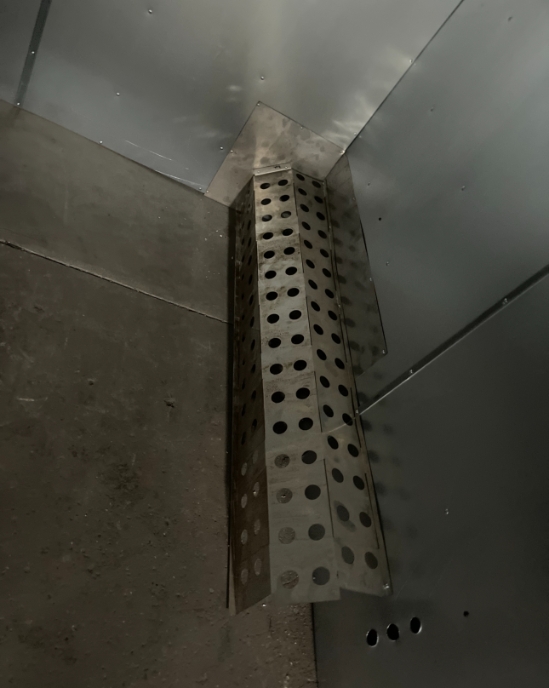

- Stainless Steel Liner and Shroud Around Burner
- Flame Retardant 1300F Rockwool Installation
- Ceramic Fiber Blanket Behind The Stainless Liner
- 3" Walls with 3" Rock Wool Insulation

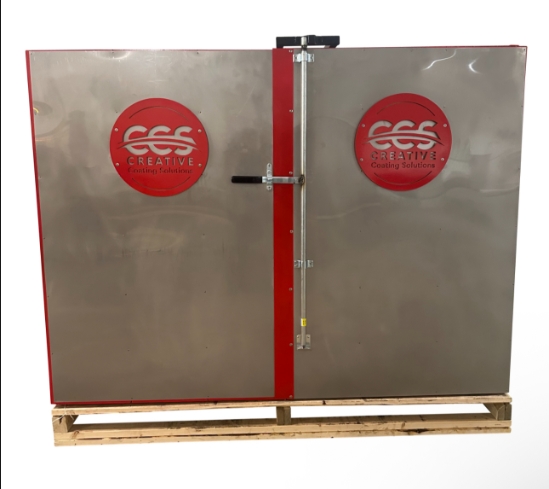

- Single Door Opening Left To Right As You Are Facing Door
- 120v Single Phase
- 20A Draw
- 3 1/2" Exhaust

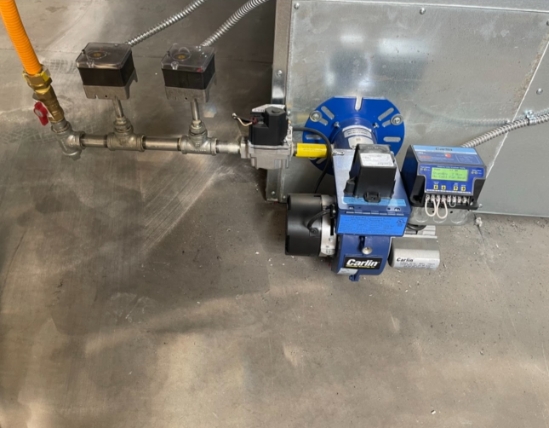

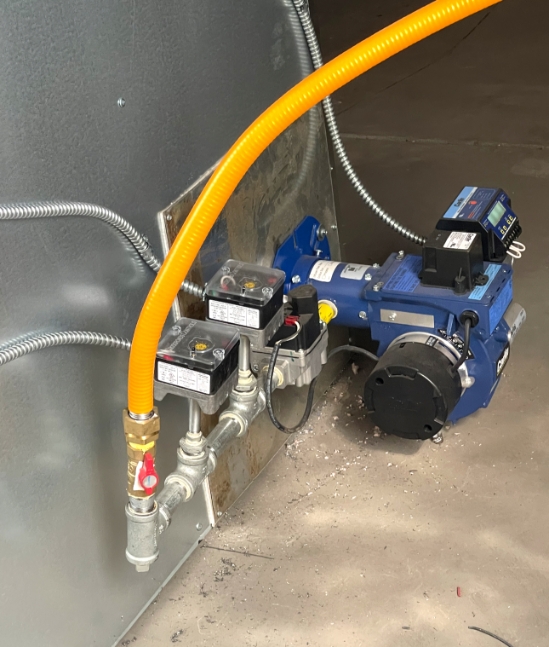

- 50,000 - 275.000 BTU Burner preset to the size of the oven (this needs installed and tuned by a licensed mechanical contractor)
- OD - 6'w X 6'd X 6't
- ID - 5’6”w x 5’9”d x 5’9”t
- Natural Gas or Propane
Our ovens are integrated with all safety Interlocks and requirements Which Tite Them As A Class A Oven:
- High and Low Gas Pressure Safety Interlocks
- Circulation Safety Interlocks
- Exhaust Safety Interlocks
- Explosion Compliant Door Latches
- Airflow Switch Safety Interlock
Additional Options:
- Custom Built Roll In Rack
- Shelf Kit (includes 2 shelves and 4 brackets)
- Shipping
- Liftgate available for units 4' x 4' x 7'and smaller only ($150.00)
- Additional fee for a residential delivery ($150.00)

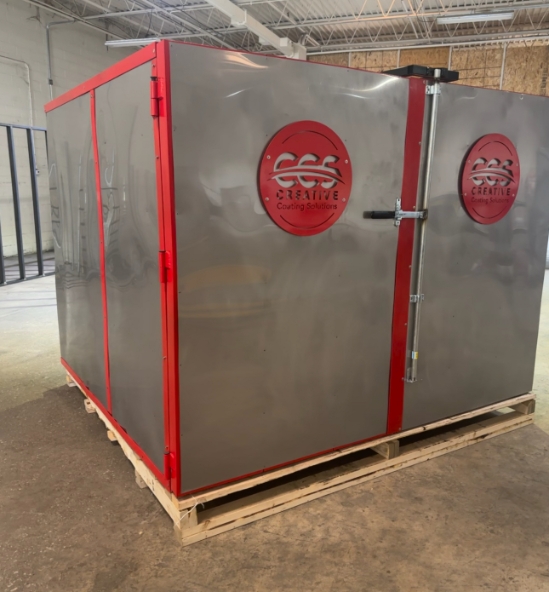

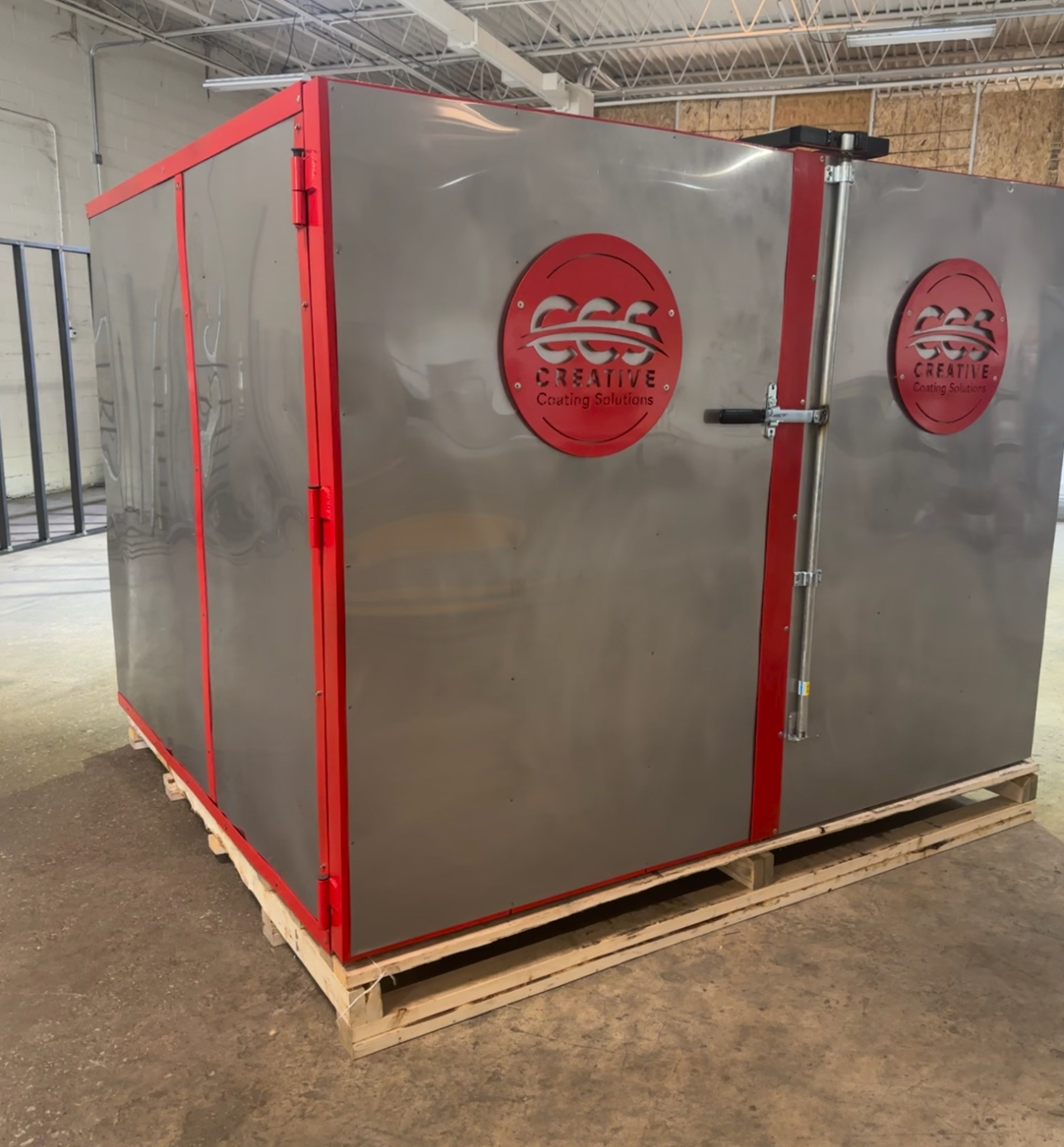

****Photos In The Listing Is Only A Depiction****
