3x3x6 Economy Electric Powder Coat Curing Oven for Small Production

Name: 3x3x6 Economy Electric Powder Coat Curing Oven for Small Production
Brand: Creative Coating Solutions

Price: $4,121.00

Quantity:

About This Item

Extended-Depth 3x3x6 Electric Powder Coat Oven Overview

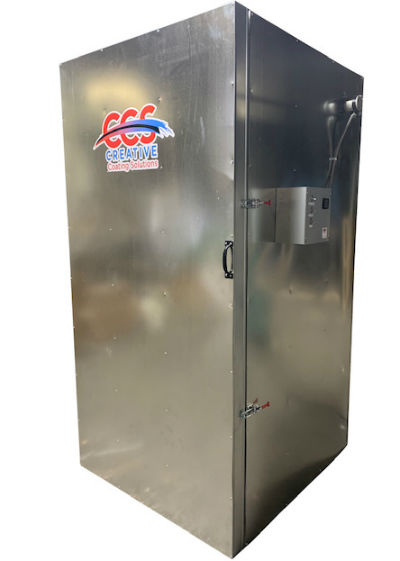

The 3' x 3' x 6' Economy Electric Powder Coat Oven

is constructed with welded square tube and steel track and stud framework.

OD 3’w x 3’d x 6’t

ID 2’4”w x 2’8”d x 5’8”t

Double walled with G90 galvanized sheeting inside and out

12 Gauge flooring, heavy enough to protect the flooring underneath, thin enough to still be able to roll a cart in and out of easily.

Fiberglass tadpole gasket door seal

Operates at up to 500F

Insulated with 6# density mineral wool insulation rated at 2100F.

Easy to use temperature control, displays set temperature as well as actual temperature inside the oven.

4 Wire hookup, 2 hot legs, neutral and a ground.

Single phase 240v 26a electric

Additional Oven Sizes and Pricing:

-CONTACT US FOR CUSTOM BUILT SIZES IF REQUIRED-

*Pictures are only a representation of the current units sold, We are constantly improving and moving parts (burners, probes etc.) to improve efficiency and circulation so parts placement in pictures may deviate from current models.*

**There has been a temporary price increase due to the rapid increase in steel and component prices

Recessed Element Option:

https://www.creativecoatingsol...

Circulation Fan Option:

http://www.creativecoatingsolutions.com/circulation-fan-installation-for-electric-
ovens.aspx

Shelf Option:

http://www.creativecoatingsolutions.com/removable-shelf-installation-for-electric-ovens.asp

Hanging Grid system Option:

https://www.creativecoatingsol...

Burner Element Cover:

https://www.creativecoatingsol...

Control Panel Upgrade:

https://www.creativecoatingsol...

Powder Coating: The complete Finishers Handbook

https://www.creativecoatingsol...

Description

The 3x3x6 Economy Electric Powder Coat Curing Oven delivers reliable, consistent cure temperatures in a compact 3 ft x 3 ft x 6 ft interior, purpose-built for small production shops and job-shop operators. Featuring a robust electric heating system, this oven reaches and holds cure temperatures typically between 300°F and 450°F, ensuring full powder flow and cross-linking on metal parts. The welded steel construction and high-density insulation minimize heat loss and energy costs, making it an efficient entry-level solution. Compatible with all standard thermosetting powder coatings, it is ideal for automotive parts, hardware, racking, and custom fab work. Available from Creative Coating Solutions, a veteran-owned B2B supplier of powder coating equipment across the U.S.

Specifications

Rollin Rack: $450 and up depending on oven sizes listed above(four post with expanded metal top offering many hanging locations).

Shelves: $195 per kit, includes 4 brackets and 2 shelves 1”x 1” square tube frame, topped with expanded metal for maximum hanging points.

Return Policy - You have 10 calendar days from the date you receive your item to return your merchandise. All items should be returned in the original packaging and condition. An (RMA) form should be filled out prior to returning any items. Creative coating solutions will issue a refund after merchandise is received and inspected, less any shipping & handling charges. A 15% restocking fee applies to any returned items.

Additional Information

Q: What is it insulated with?

A: 6# density mineral wool with a 2100F rating.

Q: How hot does the exterior get?

A: Exterior does not exceed 120F after an 8 hour cycle.

Q: How long does it take to reach 400F?

A: These are designed to reach 400F in under 15 minutes.

Q: Can I wire this into my shop myself?

A: All terminals inside the control panel are clearly labeled, however, a qualified electrician should be used.

Q: What is the voltage? Can you do 3 phase?

A: The standard Voltage is 240V single phase, we can substitute for 3 phase up to 240V at no additional charge.

Q: Are the measurements listed interior dimensions or exterior?
