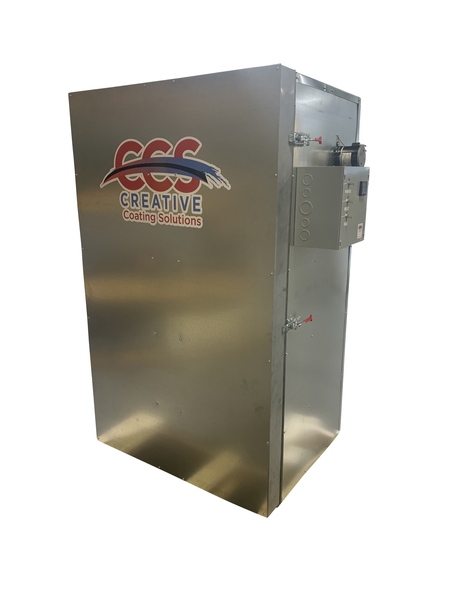

4’ x 6’ x 6’ Electric Powder Coat Oven

The 4' x 6' x 6' Electric Powder Coat Oven is constructed with a durable steel stud framework and double-wall G90 galvanized steel panels for long-lasting performance and efficient heat retention. The oven is insulated with 4-inch walls containing 6 lb density mineral wool rated to 2100°F and operates at temperatures up to 500°F.

A heavy-duty 12-gauge steel floor supports carts and equipment while allowing easy loading and unloading. The easy-to-use temperature controller displays both the set temperature and the actual oven temperature for accurate process monitoring.

Features:

Steel stud framework construction
Double-wall G90 galvanized steel interior and exterior
Maximum operating temperature: 500°F
4" insulated walls with 6 lb density mineral wool (2100°F rated)
Heavy-duty 12-gauge steel floor
Fiberglass tadpole gasket door seal
Temperature controller displays set and actual temperatures
4-wire electrical hookup (2 hot legs, neutral, and ground)
Single-phase 240V, 52A operation

Specifications:

Outside Dimensions: 4' W × 6' D × 6' H
Inside Dimensions: 3'4" W × 5'8" D × 5'8" H
Power: 240V, Single Phase, 52A
Maximum Temperature: 500°F

Optional Accessories:

Circulation Fan
Removable Shelf
Hanging Grid System
Burner Element Cover
Recessed Element Upgrade
Control Panel Upgrade

Additional Information:
Custom oven sizes available upon request.
Product images are representative and may differ from current production models as components are periodically updated to improve performance and circulation.
Pricing may vary due to changes in steel and component costs.
