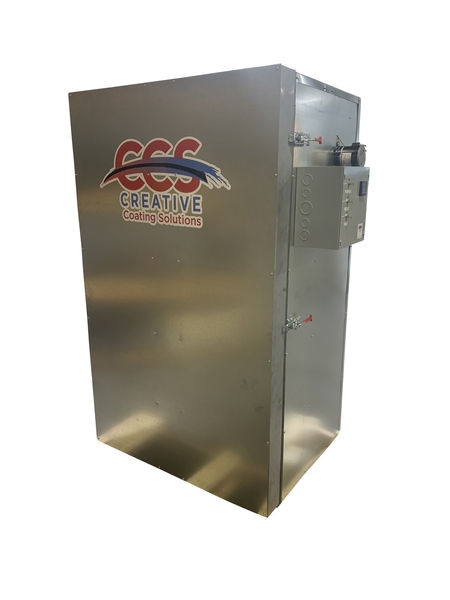

5’ x 5’ x 5’ Electric Powder Coat Oven

Price: $4,017.00

Electric Option:

Update price

Quantity:

About This Item

The 5x5x5 electric powder coat oven is built with double-wall G90 galvanized steel and 6-lb mineral wool, 2100F-rated insulation to maintain accurate temperatures at up to 500F. The 12 Gauge steel floor is heavy-duty enough to protect the floor beneath while allowing easy cart access. Operating on 240V, 52A, single phase, it fits standard single-phase electrical service with no 3-phase infrastructure. The digital PID dual-display provides precise setpoint management and the fiberglass tadpole gasket maintains chamber integrity across full production loads.

Suitable for mid-size production batches including tube frames, door panels, rack-loaded hardware, and medium fabricated assemblies. The recirculating fan keeps temperature variation under 10F across the entire working area for consistent cure quality on every part. Used by custom fabricators, job shops, and production coaters running 3-6 full cure cycles per shift.

Specifications:

Max temperature: 500F
Power: 240V, 52A, single phase
Construction: double-wall G90 galvanized steel
Floor: 12 Gauge steel floor
Insulation: 6-lb mineral wool, 2100F-rated
Door seal: fiberglass tadpole gasket, full perimeter
Controller: digital PID dual-display (set temp + live temp)
Airflow: recirculating fan for even heat distribution

Comes with a circulation Fan
Comes with Element Covers
Shelf Option: http://www.creativecoatingsolutions.com/removable-shelf-installation-for-electric-ovens.aspx
Hanging Grid System Option: https://www.creativecoatingsolutions.com/hanging-grid-system.aspx
Recessed Element Option: https://www.creativecoatingsolutions.com/store/Search.aspx?SearchTerms=Recessed%20Elements%20Installation
Control Panel Upgrade:https://www.creativecoatingsolutions.com/control-panel-upgrade-for-custom-builtnoven.aspx

Additional Information

Additional Options Include:

Rolling Rack: $450 and up depending on oven sizes listed above(four post with expanded metal top offering many hanging locations).

Shelves: $195 per kit, includes 4 brackets and 2 shelves 1”x 1” square tube frame, topped with expanded metal for maximum hanging points.

Return Policy - You have 10 calendar days from the date you receive your item to return your merchandise. All items should be returned in the original packaging and condition. An (RMA) form should be filled out prior to returning any items. Creative coating solutions will issue a refund after merchandise is received and inspected, less any shipping & handling charges. A 15% restocking fee applies to any returned items.

Reviews

Frequently Asked Questions

What is the 5x5x5 electric powder coat oven used for?

What electrical supply does the 5x5x5 electric powder coat oven require?

What is the maximum curing temperature of the 5x5x5 electric powder coat oven?

What part sizes fit inside the 5x5x5 electric powder coat oven?

Where can I order the 5x5x5 electric powder coat oven and what does it cost?
