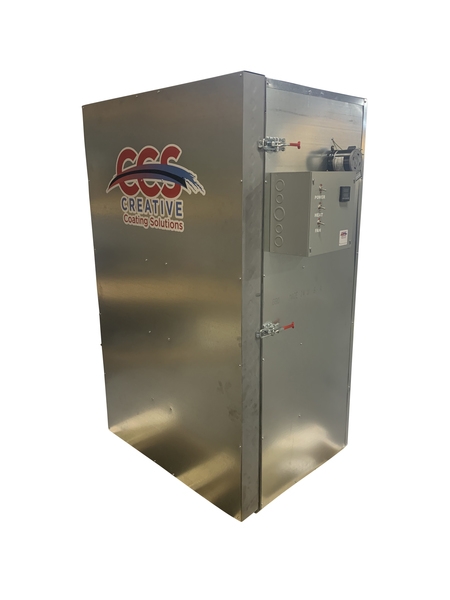

The 6' x 6' x 6' Electric Powder Coat Oven
is constructed with steel stud framework.
OD - 6’w x 6’t x 6’d
ID - 5’4”w x 5’8”t x 5’8”d
Double walled with G90 galvanized sheeting inside and out
12 Gauge flooring, heavy enough to protect the flooring underneath, thin enough to still be able to roll a cart in and out of easily.
Fiberglass tadpole gasket door seal
Operates at up to 500F
4” walls and Insulated with 6# density mineral wool insulation rated at 2100F.

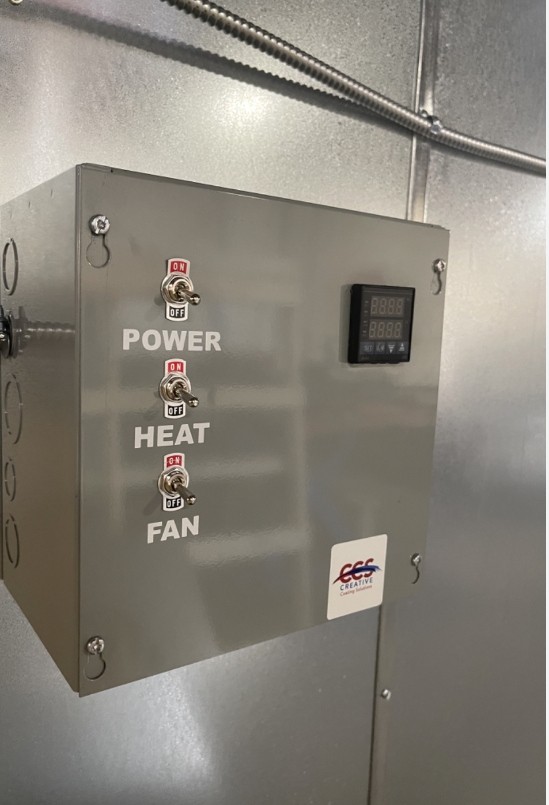

Easy to use temperature control, displays set temperature as well as actual temperature inside the oven.
4 Wire hookup, 2 hot legs, neutral and a ground.
Single phase 240v 78a electric
Comes with a circulation Fan

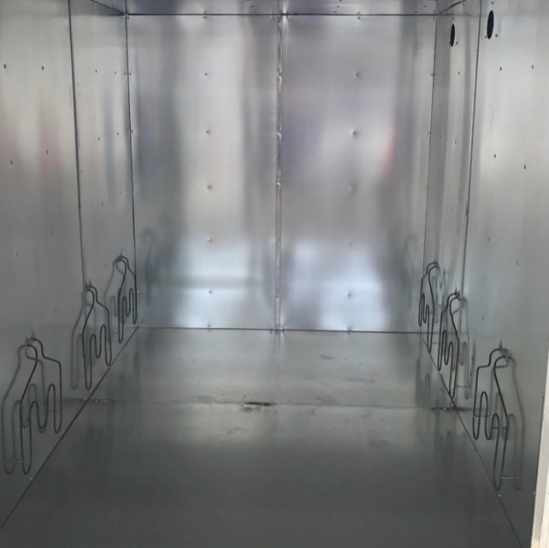

Comes with Element Covers
Additional Oven Sizes and Pricing:
-CONTACT US FOR CUSTOM BUILT SIZES IF REQUIRED-
**There has been a temporary price increase due to the rapid increase in steel and component prices**
*Pictures are only a representation of the current units sold, We are constantly improving and moving parts (burners, probes etc.) to improve efficiency and circulation so parts placement in pictures may deviate from current models.*
