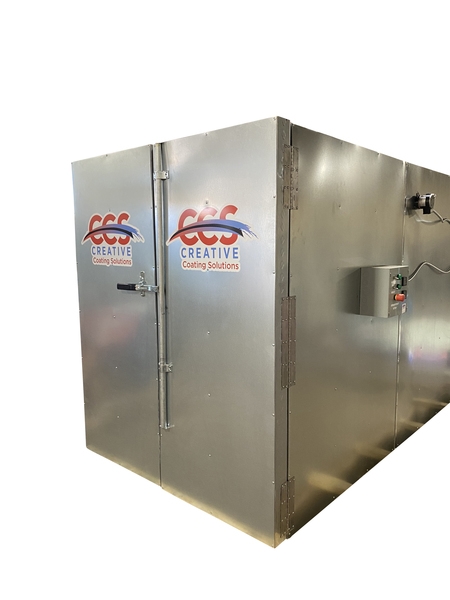

8' X 8' X 12' Gas Industrial Powder Coat Curing Oven

8'×8'×12' Gas Powder Coat Curing Oven - Large Industrial Welded Frame

Q: What is the 8x8x12 Gas Powder Coat Curing Oven and who is it designed for?

The 8x8x12 Gas Powder Coat Curing Oven is a commercial-grade gas-fired powder coating curing oven built for production shops, job shops, and industrial finishers. It delivers uniform heat distribution at temperatures up to 450°F, curing powder coatings on steel, aluminum, and other substrates efficiently and consistently.

Q: What are the interior dimensions of the 8x8x12 Gas Powder Coat Curing Oven?

This oven offers an interior workspace of 8' W x 8' D x 12' H (width x depth x height), providing ample space for large parts, frames, wheels, and fabricated components. The generous interior supports hanging racks, shelves, and conveyor-fed loading configurations.

Q: What type of frame construction does the 8x8x12 Gas Powder Coat Curing Oven use?

The 8x8x12 Gas Powder Coat Curing Oven features a welded tube steel frame with heavy-gauge steel panel walls and high-density mineral wool insulation. The robust construction minimizes heat loss, reduces gas consumption, and ensures the oven maintains structural integrity under continuous daily use.

Q: How is temperature controlled on the 8x8x12 Gas Powder Coat Curing Oven?

Temperature is regulated by a PID (Proportional-Integral-Derivative) controller that monitors and adjusts the gas burner output in real time. This ensures precise, repeatable cure cycles, eliminates hot and cold spots, and protects parts from over-bake or under-cure conditions.

Q: How does a gas oven compare to an electric powder coat oven for production?

Gas ovens typically offer lower operating costs per BTU compared to electric resistance ovens at production volumes. Gas models heat up faster, recover temperature more quickly after door opening, and are preferred in shops where natural gas or propane is readily available and electricity rates are high.

Q: Where can I order the 8x8x12 Gas Powder Coat Curing Oven for my facility?

The 8x8x12 Gas Powder Coat Curing Oven is sold exclusively through Creative Coating Solutions, a veteran-owned industrial supplier specializing in powder coating equipment. Visit creativecoatingsolutions.com or contact the sales team for freight quotes, lead times, and installation guidance.

Q: What warranty and support are available for the 8x8x12 Gas Powder Coat Curing Oven?

Creative Coating Solutions provides technical support for all gas curing ovens, including burner setup, PID calibration, and replacement parts assistance. The welded steel construction is built to last, and the team is available to assist with any operational questions after delivery and installation.

Item #: EGF8812

Price: $18,200.00

Electric Option:

Update price

Quantity:

About This Item

Specifications:

Natural Gas Bach Oven
G90 Galvanized Sheet Metal Inside and Out
12 Gauge Plate Steel Floor
Stainless Steel Liner and Shroud Around Burner
Flame Retardant 1300F Rockwool Installation
Ceramic Fiber Blanket Behind The Stainless Liner
120v Single Phase
13A Draw
3 1/2" Exhaust
OD - 8'w X 8't X 12'd
ID - 7’4”w x 7’8”t x 11’8”d
Natural Gas and Propane
50,000 - 275.000 BTU Burner preset to the size of the oven (this needs installed and tuned by a licensed mechanical contractor)

Our ovens are integrated with all safety Interlocks and requirements Which Tite Them As A Class A Oven:

High and Low Gas Pressure Safety Interlocks
Circulation Safety Interlocks
Exhaust Safety Interlocks
Explosion Compliant Door Latches
Airflow Switch Interlock

Additional Options:

Window
Light
Custom built Rack
Shelf Kit (contains 2 shelves and 4 brackets)
Double doors

Shipping:

Liftgate available for units 4' x 4' x 7'and smaller only ($150.00)
Additional fee for a residential delivery ($150.00)

Other Items To Consider:

Powder Coating: The complete Finishers Handbook

https://www.creativecoatingsol...

Description

The 8'x8'x12' Gas Powder Coat Curing Oven is a large-format industrial curing oven for production powder coating of frames, structural steel, and heavy equipment. Delivers 768 cubic feet of cure capacity.

Key features:

8' x 8' x 12' cure chamber (768 cu. ft.) for oversized loads
Welded tube steel frame for heavy production environments
Gas-fired heating optimized for high-BTU continuous operation
Digital temperature control with uniform air circulation

Ideal for commercial fabricators, automotive OEM suppliers, and large industrial coating operations. Available at Creative Coating Solutions - veteran-owned, shipping nationwide.
