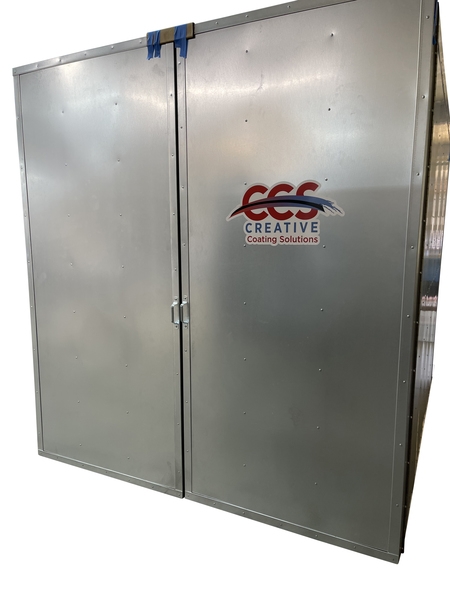

8' x 8’ x 15' Electric Powder Coat Oven

The 8' x 8' x 15' Natural Gas Batch Oven is designed for industrial batch heating and curing applications. It features G90 galvanized sheet metal construction inside and out, a heavy-duty 12-gauge steel floor, and a stainless steel liner and burner shroud for durability in high-temperature environments.

The oven is insulated with flame-retardant 1300°F Rockwool insulation and a ceramic fiber blanket behind the stainless liner to improve thermal efficiency. It operates on either natural gas or propane and includes integrated Class A safety interlocks for safe operation.

Features:

Natural gas or propane operation

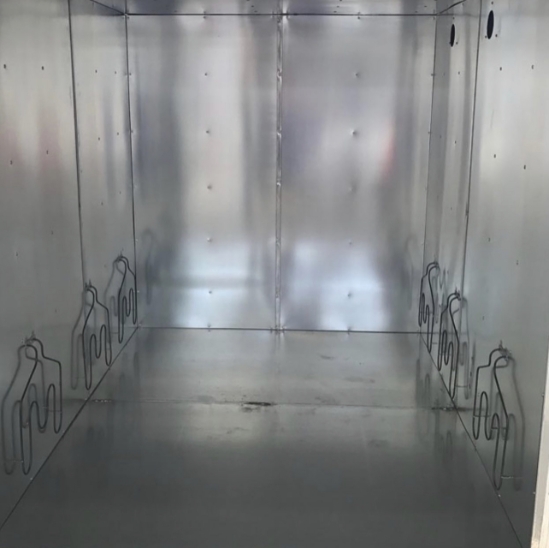

G90 galvanized steel interior and exterior
Heavy-duty 12-gauge steel floor
Stainless steel burner liner and shroud
1300°F flame-retardant Rockwool insulation
Ceramic fiber blanket insulation
120V single-phase electrical
13A electrical draw
3½" exhaust
(2) 50,000–275,000 BTU burners (factory sized to oven)

Specifications:

Outside Dimensions: 8' W × 8' H × 15' D
Inside Dimensions: 7'4" W × 7'4" H × 14'8" D
Fuel: Natural Gas or Propane
Electrical: 120V Single Phase
Electrical Draw: 13A
Exhaust: 3½"
Burners: (2) 50,000–275,000 BTU (installation by a licensed mechanical contractor)

Integrated Safety Features
High and Low Gas Pressure Safety Interlocks
Circulation Safety Interlocks
Exhaust Safety Interlocks

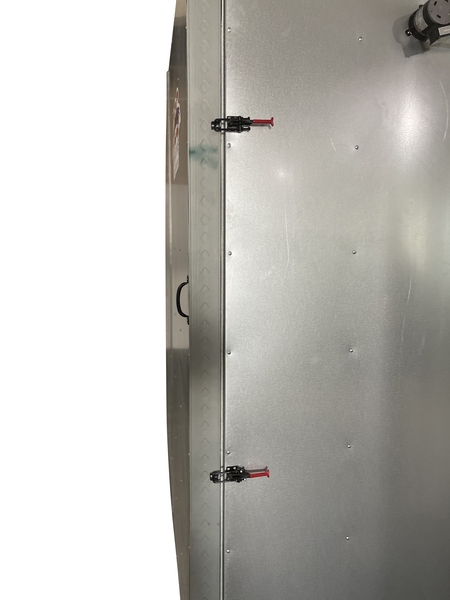

Explosion-Compliant Door Latches
Airflow Switch Interlock
Class A Oven Safety Design

Optional Upgrades:

Window
Interior Light
Custom Rack
Double Doors

Shipping Notes
Liftgate service available for 4' × 4' × 7' ovens and smaller.
Additional residential delivery charges may apply.
