CFP 15K Fire Suppression System with Pressure Switch

Item #: CFP 15K
Price: $2,205.00
    The product is in stock Availability: Manufactured Item
    Usually ships In 4-5 Weeks

    About This Item

    **The CFP 15K Is currently in the testing phase and being UL Listed and should be available in the summer of 20227**

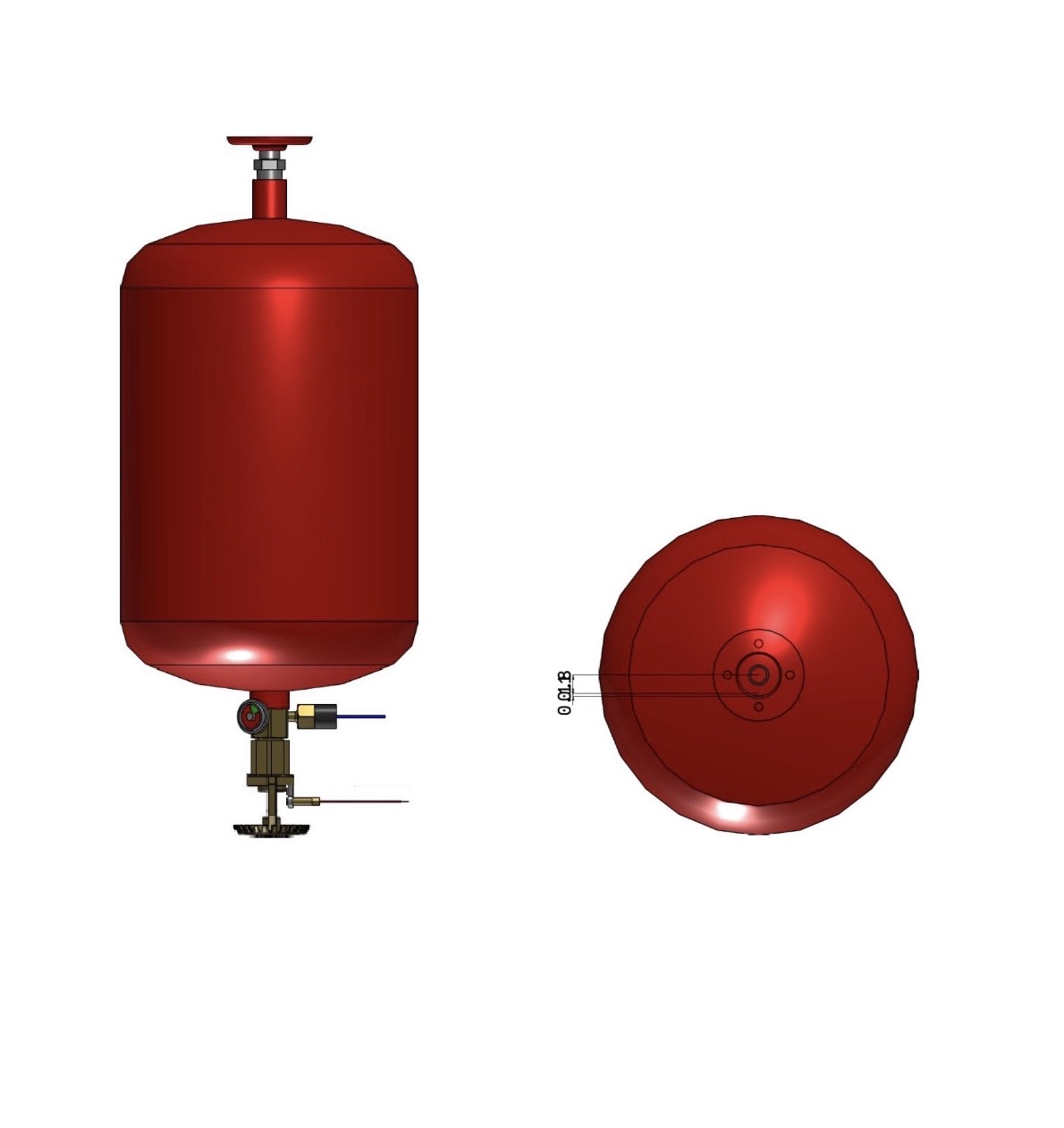

    CFP 15K Fire Suppression System With Pressure Switch

    The CFP 15K uses the same ampount of CT-33 as our 3375LP / CFP6750 as well as sharing the same tank. The primary difference is the sprinkler head which allows for a further throw and high max ceiling. The coverage for this unit is 17.2' x 17.5' x 50'.

    Scecifications:

    • Maximum Total Flood Volume:  17.5’x17.5’x50’ = 15,312.50ft3 / 5.334mx5.334mx15.24m = 433.60m3
    • Reach Coverage Area: 17.5’x17.5’ = 30.25ft2 / 5.334mx5.334m = 28.45m2
    • Temperature Rating: -20°F to 120°F / -29°C to 49°C
    • Cylinder: Manchester 30# / Worthington 69# / Flameking 69.7#
    • Diameter: 12.25” / 31cm
    • Height: 21.7”+6.75”Coupling Assembly / 55.12cm+17.15cm Coupling Assembly
    • Capacity: 50lbs / 22.68kg
    • Unit Weight: 85lbs / 38.56kg
    • Ship Weight: 88lbs / 39.92kg
    • Propellent: High Purity Compressed Dry Nitrogen
    • Standard System Activation: 155°F / 68.3°C
    • Alternative System Activation: 135°F, 175°F, 200°F, 286°F, 360°F / 57.22°C, 79.44°C, 93.33°C, 141.11°C, 182.22°C

    Frequently Asked Questions

    What is the CFP 15K fire suppression system designed for?

    +

    What is the coverage area of the CFP 15K system?

    +

    How much does the CFP 15K fire suppression system cost?

    +

    What industries use the CFP 15K fire suppression system?

    +

    Can multiple CFP 15K systems be installed in one facility?

    +
