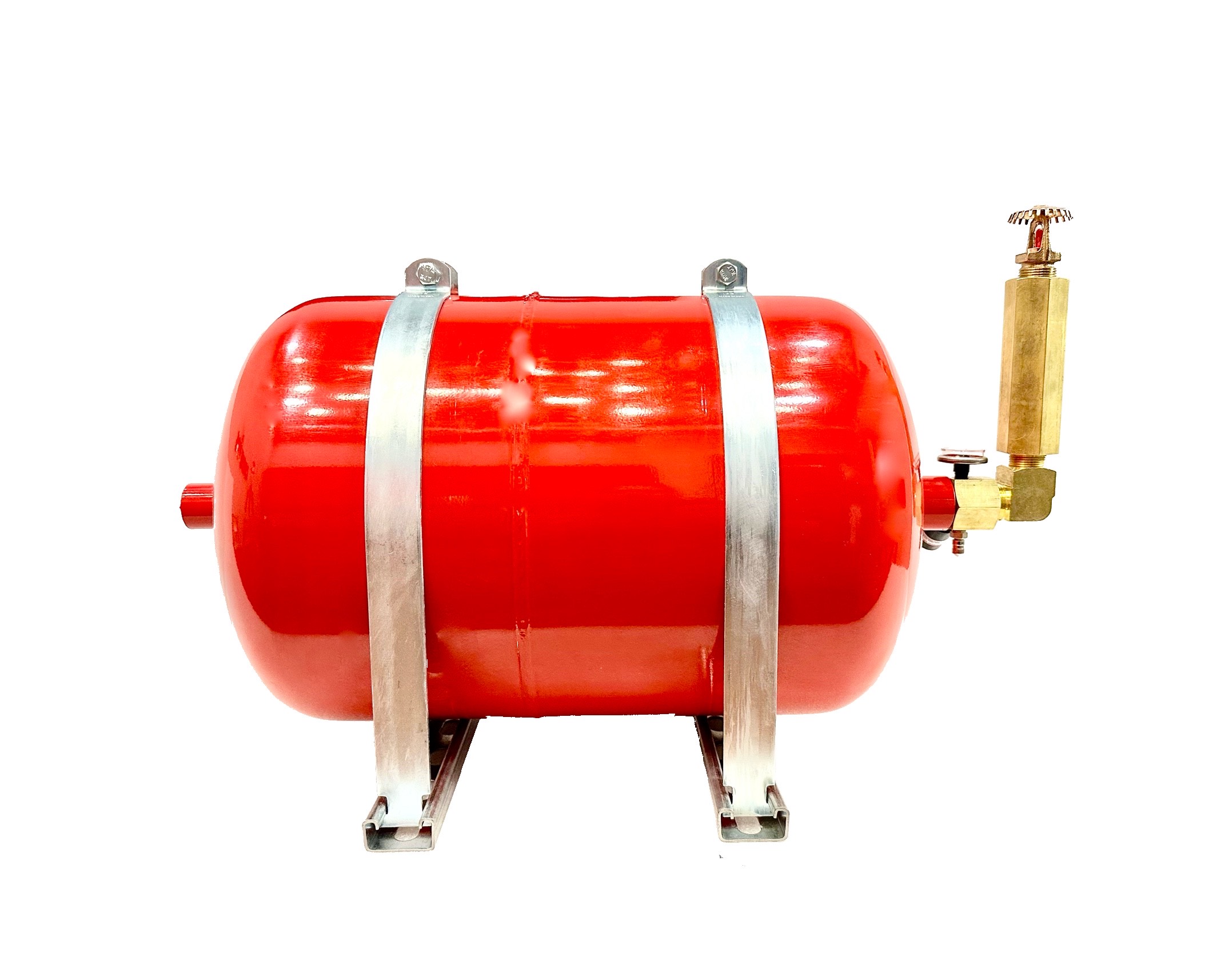

CFP 3375LP Low Profile Fire Suppression Bottle
The CFP 3375LP bridges the difficult gap between small spaces and mid-sized spaces. It has all the same attributes as the CFP 3375, but uses a low profile mounting system. Designed to be installed horizontally, and to protect any space that is 15' x 15' x 15' or smaller. Great for modular structures, portable shelters, storage rooms, quiet spaces, as well as spaces with height restrictions, challenges, or bottlenecks. Our CF-33 dry chemical agent is non-corrosive, non-conductive & non-toxic, making it a safe option for nearly any application.
This Unit is self-activating. Each unit is designed to initiate automatically by means of a sprinkler head rated at 20°F to 120°F / -29°C to 49°C. The temperature rating for each sprinkler head is stamped on the star shaped deflector in both Fahrenheit and Celsius measurements. The temperature of the sprinkler head is fixed and must be designated at the time of purchase. When the temperature rise to activate the Cease Fire® unit, the sprinkler head opens automatically and dispenses the entire contents in less than 10 seconds onto the fire and throughout the enclosure being protected. If the unit is equipped with the optional pressure switch, a signal is sent at the time of discharge to activate accessory equipment, such as an alarm.
Specifications:
Maximum Total Flood Volume: 15'x15'x15' = 3375ft³ / 4.57mx4.57mx4.57m = 95.44m³
Reach Coverage Area: 15'x15' = 225ft² / 4.57mx4.57m = 20.88m²
Temperature Rating :-20°F to 120°F / -29°C to 49°C
Cylinder Manchester: 30# / Worthington 69#
Diameter: 12.25" / 31cm
Height: 19.56"+3.50 / Coupling Assembly: 50cm+8.90cm
Capacity: 50lbs / 13.61kg
Unit Weight: 87lbs / 27.67kg
Ship Weight: 90lbs / 29.48kg
Approvals: UL, ULC, CSFM, NYC #5754
Propellant: High Purity Compressed Dry Nitrogen
Standard System Activation: 155° Fahrenheit / 68.3° Celsius
****Please contact us for SDS Sheets, Approvals and Documentation****
Contact Us For A Current Freight Quote On This Item
Shipping Options: ( Standard shipping runs 4- 5 weeks due to each unit is custom built per order)
RUSH Is 2-3 Weeks and Expedited RUSH at 1 Week Or Sooner - Please Contact Us For Pricing
