CFP 3375LPBH Fire Suppression System with Pressure Switch

CFP 3375LPBH Low Profile Fire Suppression Bottle

The CFP 3375 is designed to be installed horizontally and to protect any space 15' x 15' x 15' or 8' x 40' x 8.83'. The CFP 3375LP is built with 50lbs of CF-33 dry chemical capable of extinguishing any class A,B or C hazard within its footprint. The unit is rated for ambient temperature ranges of -20 to 120°F within a maximum temperature ranges of -40 to 1800°F when properly equipped. The CFP 3375LPBH is a nearly identical version of the existing CFP 3375LP with the exception of a much larger sprinkler head / for further reach. This variant was specifically designed for protection of connex boxes and trailer enclosures.

This Unit is self-activating. Each unit is designed to initiate automatically by means of a sprinkler head rated at 20°F to 120°F / -29°C to 49°C. The temperature rating for each sprinkler head is stamped on the star shaped deflector in both Fahrenheit and Celsius measurements. The temperature of the sprinkler head is fixed and must be designated at the time of purchase. When the temperature rise to activate the Cease Fire® unit, the sprinkler head opens automatically and dispenses the entire contents in less than 10 seconds onto the fire and throughout the enclosure being protected. If the unit is equipped with the optional pressure switch, a signal is sent at the time of discharge to activate accessory equipment, such as an alarm.

Specifications:

• Maximum Total Flood Volume: 3375ft3 / 17.56m3 15’x15’x15’ or 8’x40’x8.5’ / 4.57mx4.57mx4.57m / 2.44mx12.19mx2.59m
• Temperature Rating: -20°F to 120°F / -29°C to 49°C
• Cylinder Manchester: Worthington 69# / Manchester 30# / Flame king 69.7#

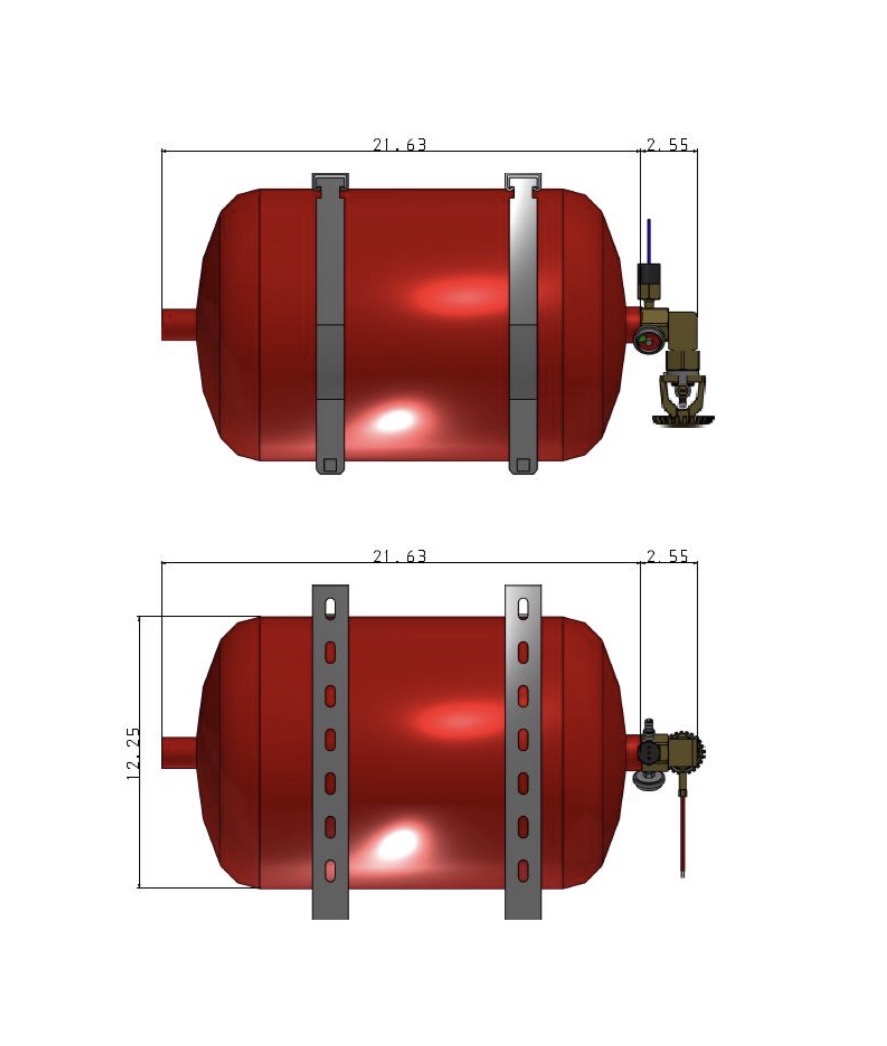

• Diameter: 12.25" / 31cm
• Height: 12.25” / 18.19cm (Head Does Not Protrude Below Tank for Container Use Only)
• Capacity: 50lbs / 22.68kg
• Unit Weight: 85lbs / 38.56kg
• Ship Weight: 90lbs / 40.82kg
• Propellant: High Purity Compressed Dry Nitrogen
• Standard System Activation: 155° Fahrenheit / 68.3° Celsius
• Alternative System Activation: 135°F, 175°F, 200°F, 286°F, 360°F / 57.22°C, 79.44°C, 93.33°C, 141.11°C, 182.22°C

****Please contact us for SDS Sheets, Approvals and Documentation****

Contact Us For A Current Freight Quote On This Item

Shipping Options: ( Standard shipping runs 4- 5 weeks due to each unit is custom built per order)

RUSH Is 2-3 Weeks and Expedited RUSH at 1 Week Or Sooner - Please Contact Us For Pricing
