Circulation Fan Installation For Electric Ovens

Circulation Fan Installation Kit for Electric Powder Coat Ovens | Add-On Upgrade

Q: What does a circulation fan do in a powder coat oven?

A circulation fan moves heated air continuously throughout the oven chamber, ensuring uniform temperature distribution across all surfaces. This convection effect eliminates hot and cold spots, allowing parts to cure evenly and reducing defects like orange peel, undercure, and color variation.

Q: Is this circulation fan compatible with all Creative Coating Solutions electric ovens?

This circulation fan installation is designed specifically for Creative Coating Solutions electric powder coat ovens. It is available as an add-on at time of purchase and is pre-engineered to fit the oven's chamber dimensions for optimal airflow and performance.

Q: How much does a circulation fan improve cure uniformity?

A properly installed circulation fan can reduce temperature variation across the oven chamber from 30-50°F (static) to within 5-10°F. This tighter temperature band is especially important for large batches, thick parts, or powder coatings with narrow cure windows.

Q: Can a circulation fan be added to an oven after purchase?

This listing is for a factory-installed circulation fan add-on selected at time of oven purchase. Retrofitting a fan into an existing oven requires custom metalwork and wiring. For best results and warranty compliance, select this option when ordering your new electric oven.

Q: Does a circulation fan increase energy consumption in an electric oven?

A circulation fan adds minimal electrical load while significantly improving heat transfer efficiency. Because parts reach cure temperature faster and more uniformly, total cure cycle time often decreases, which can offset the fan's energy consumption in high-volume production environments.

Q: What size oven should have a circulation fan?

Any oven larger than 4x4x4 feet benefits meaningfully from forced air circulation. Larger chambers develop more significant temperature gradients without a fan. For production-volume powder coating with consistent quality requirements, a circulation fan is strongly recommended regardless of oven size.

Q: Does the circulation fan require any special maintenance?

The circulation fan motor should be inspected periodically for powder buildup on the blades, which can reduce airflow efficiency. Bearings should be checked annually and lubricated or replaced as needed. Under normal production conditions, circulation fans are very low-maintenance components.

Price: $455.00

Quantity:

About This Item

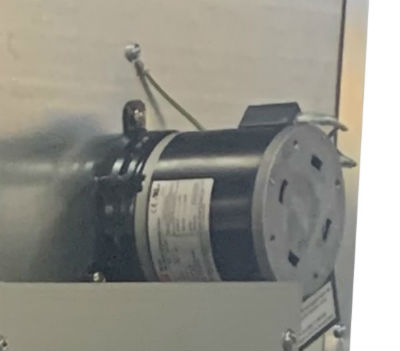

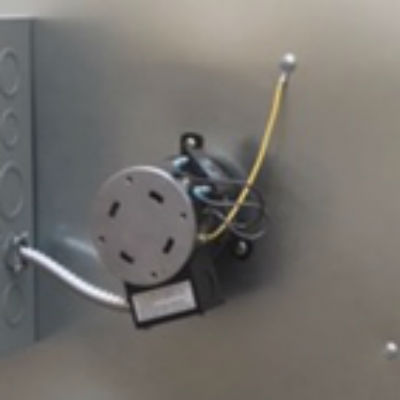

Installation of the Circulation fan:
The circulation fan is 150 cfm and is suggested but not required. The main purposes of this fan is for better and more uniform heat circulation throughout the oven chamber. This fan also enables the oven to reach temp faster by way of heat distribution. Comes with a protective louvered cover.

Description

The Circulation Fan Installation for Electric Ovens is a factory add-on that adds 150 CFM forced-air recirculation to Creative Coating Solutions electric powder coat ovens.

Key features:

150 CFM high-temp fan improves heat uniformity across the oven chamber
Reduces temperature variance from 30-50°F static down to 5-10°F
Accelerates time-to-temperature by distributing heat faster
Includes protective louvered cover and factory wiring
Pre-engineered to fit Creative Coating Solutions electric oven chambers

Ideal for production powder coaters running mixed part loads, powders with narrow cure windows, or any oven larger than 4x4x4 where even cure is mission-critical.
