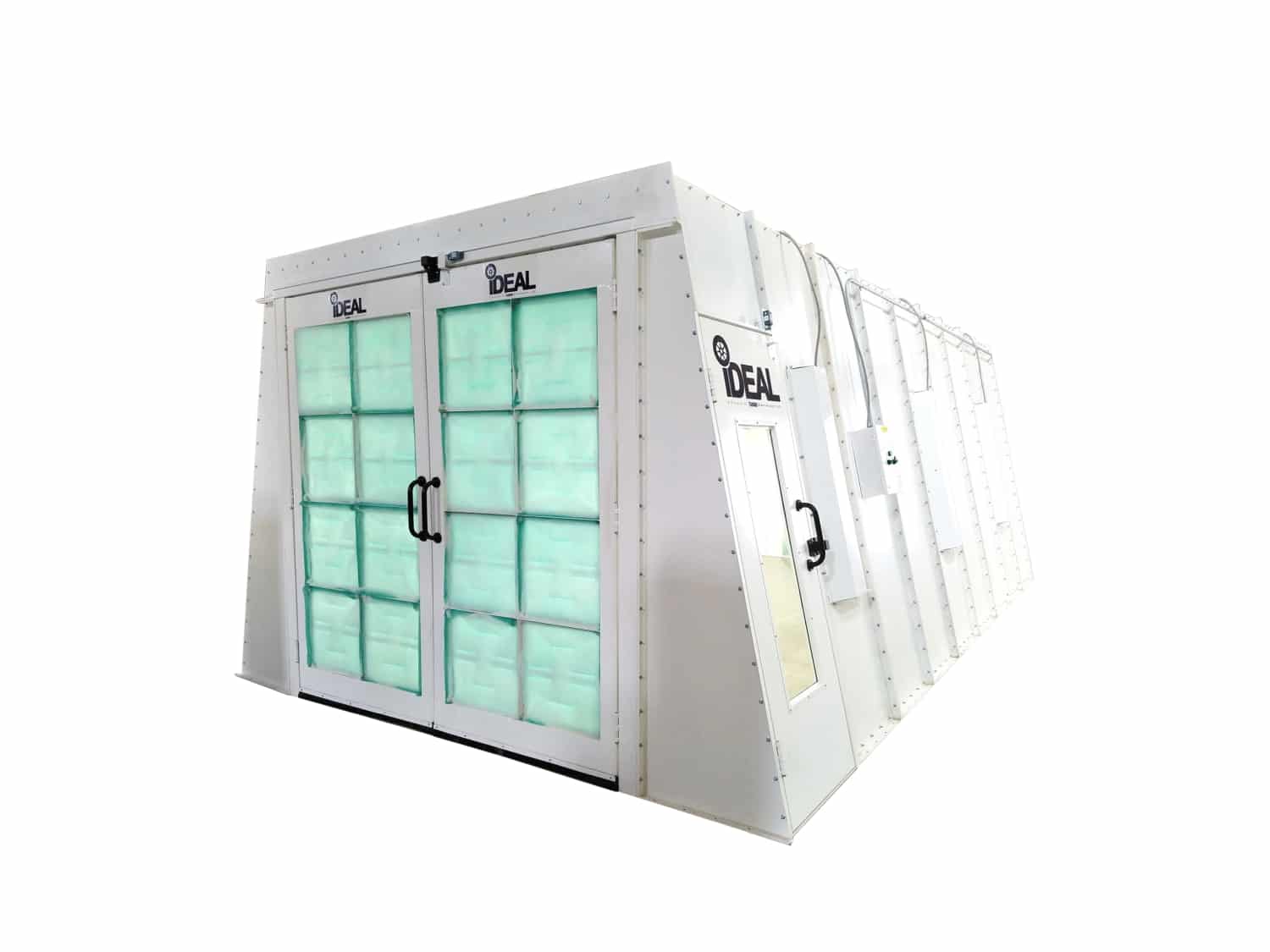

Commercial Cross Flow Draft Paint Spray Booth - (1 Phase/ 3 Phase)

Item #: PSB-AFCF23B-1PH
Price: $18,290.00
    The product is in stock Availability: In Stock - Ship time Varies
    Usually ships In In Stock - 2-4 days


    Update price

    About This Item

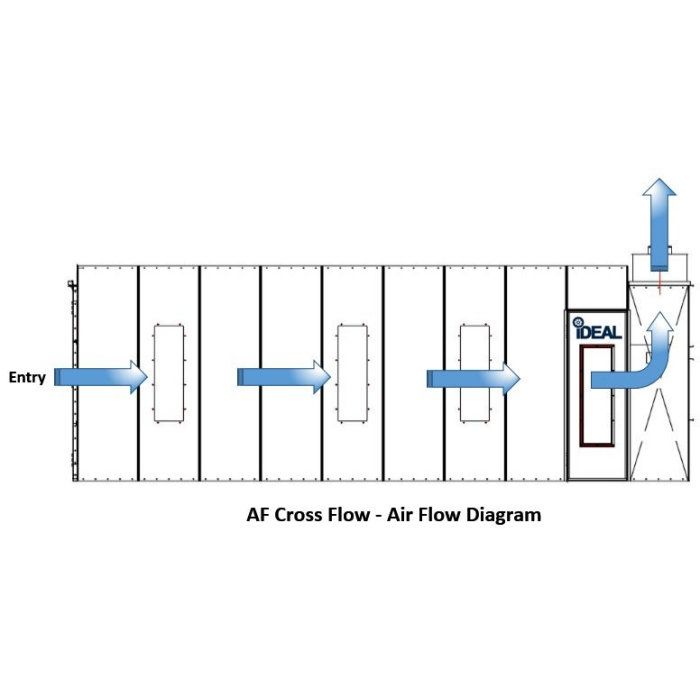

    Our 'A-Frame' Cross Flow Paint Spray Booth is an economic, commercial grade paint spray booth designed to provide superior lighting with optimal 'cross draft' air flow to produce a high-quality paint finish in a safe and controlled ventilated work area. The iDEAL Cross Flow Spray Booth is great for small to mid-sized automobiles along with being an ideal solution for industrial or wood finishing applications. The exhaust fan draws clean filtered air through the front entry door's intake filters and flows towards the rear of the booth into the filtered exhaust chamber and then discharged upwards through the exhaust fan and ducting. The included bright white powder coat finish, deluxe control panel, plenum filters and high quality tube-axial exhaust fan complete the package for a premium, high quality paint Spray Booth giving your finish a superior look as this booths performance with set you apart from the competition, All of this at a great value for the cost.

    • Typically ships within 48 hours

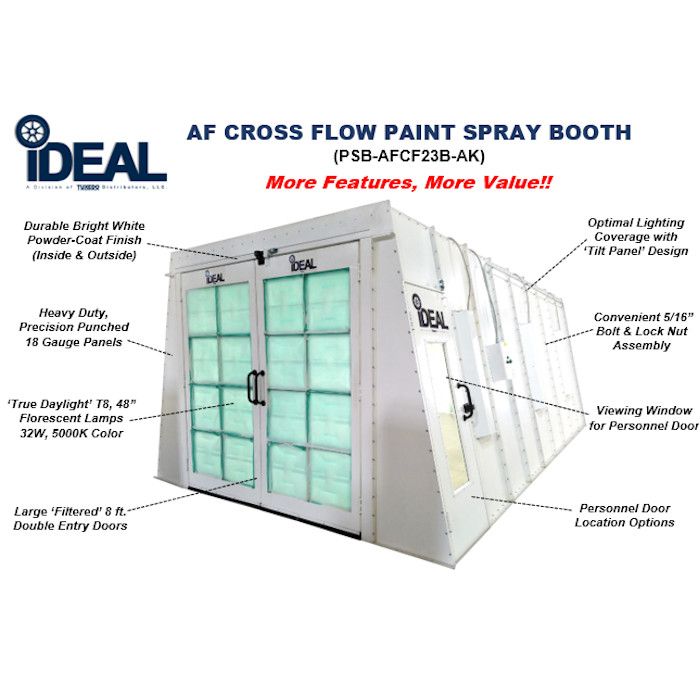

    • Heavy duty precision punched 18 gauge panel construction
    • Optimal 'cross draft' air flow w/ CFM 9,500 @ .5 Static Pressure

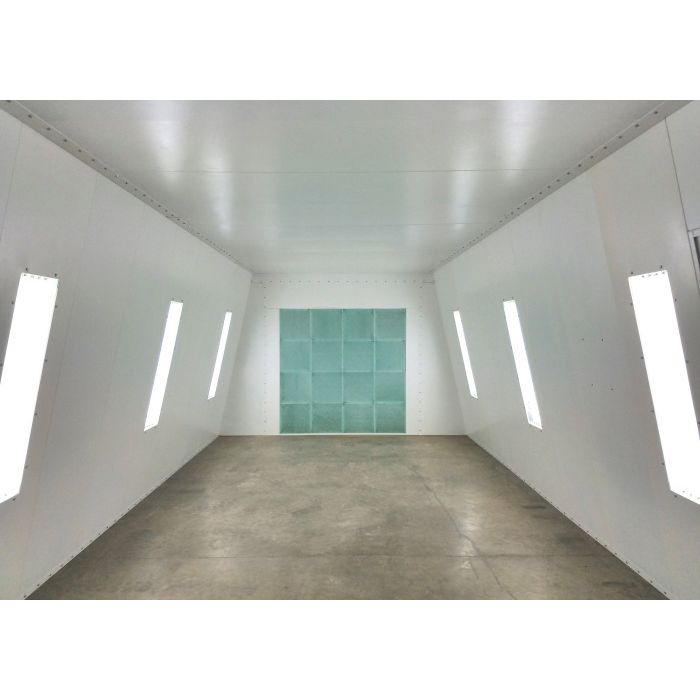

    • Tilt panel design for optimal lighting coverage
    • Inside dimensions: 22'6"L x 13'W x 8'6"H
    • Convenient 5/16" Bolt and Nut assembly

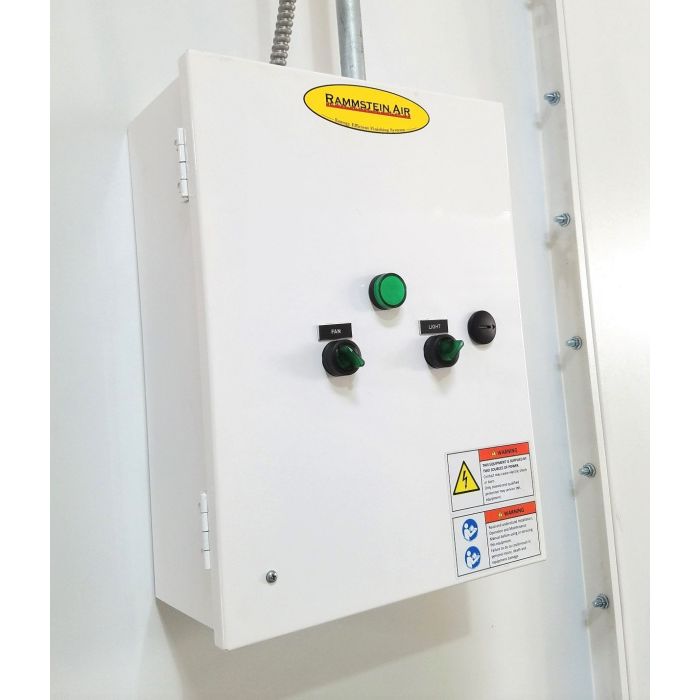

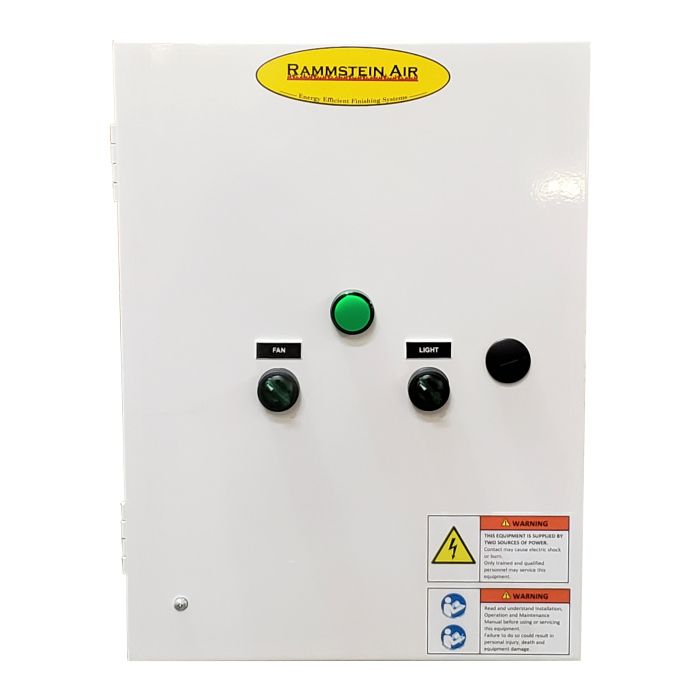

    • Deluxe control panel included
    • White powder coat finish - Inside and outside
    • manometer, Solenoid Valve, Hardware and sealant included
    • UL Listed Dayton 24" tube-Axial fan w/spark resistant fan blades
    • NEMA rated 3HP - 3 Phase - 230/460Hz motors standard
    • Premium AFC intake and exhaust filters

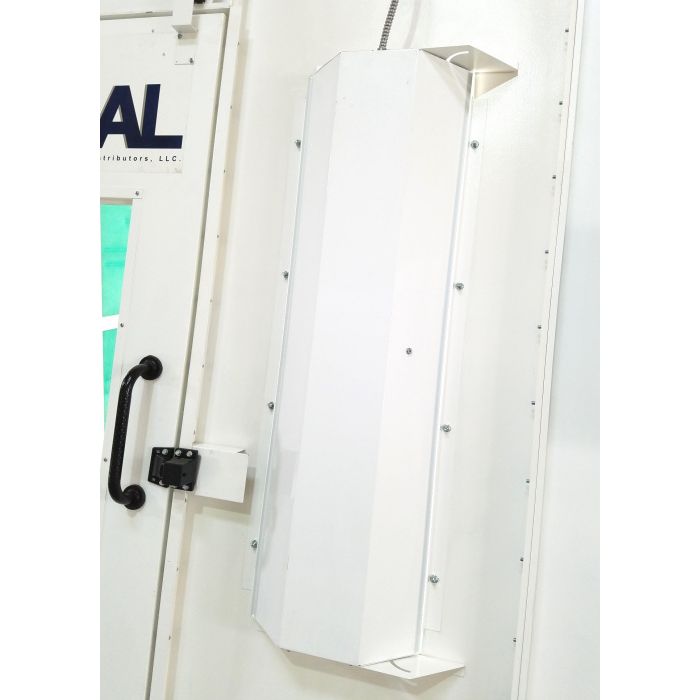

    • (6ct) LPDI Industrial Lighting T-8 'Vertical' light fixtures - 4 lamps required for each fixture
    • (24ct) GE T8 Florescent lamps - 32W, 5000K 4' in length

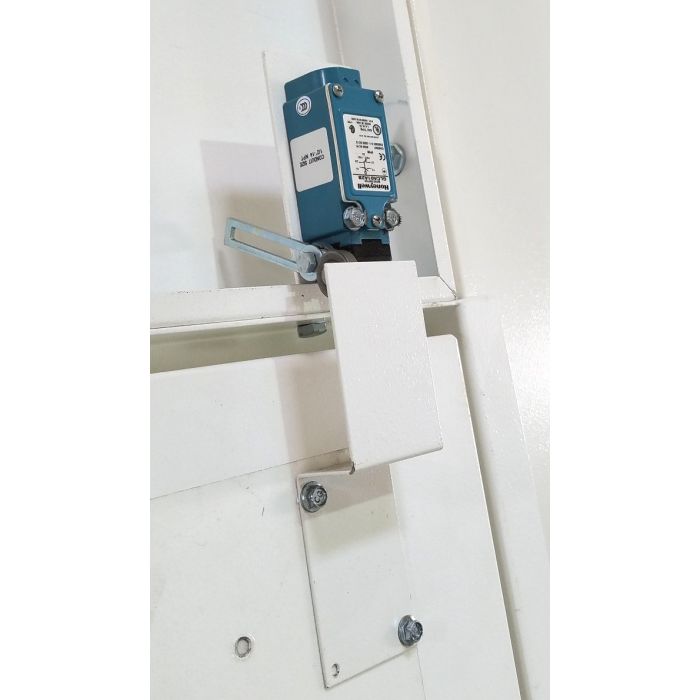

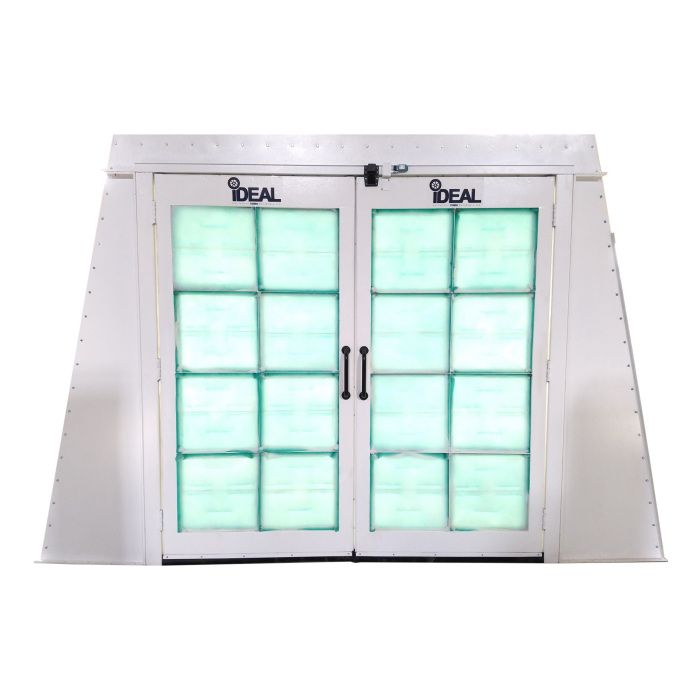

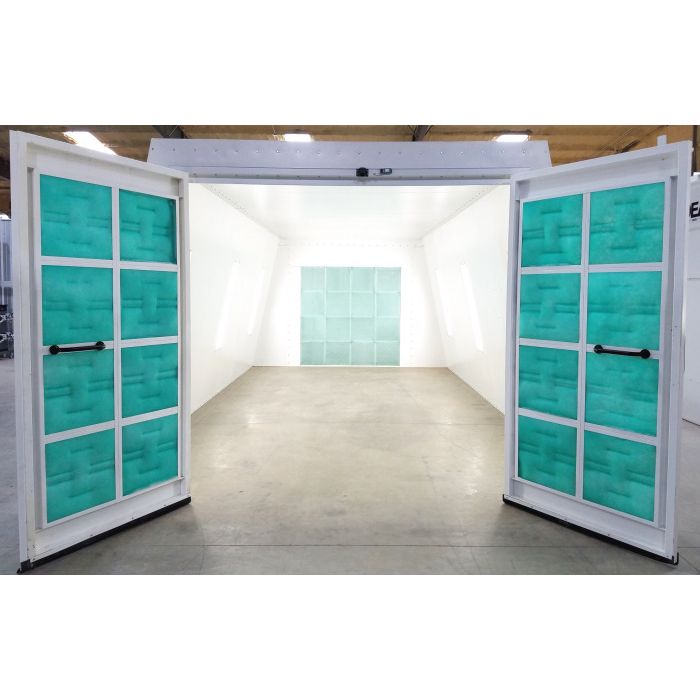

    • Double entry doors w/ Viewing window and shutoff switch
    • Optional 1 phase electrical, Personal Man door kit and booth extension kits available

    Upgrade Options

    LED Lighting:

    https://www.creativecoatingsol...

    Extension Kit:

    https://www.creativecoatingsol...

    Side Personnel Door:

    https://www.creativecoatingsol...

    Solid 30" Extension Kit:

    https://www.creativecoatingsol...

    Stand Alone Pint Mixing Room

    https://www.creativecoatingsol...

    Equipment is shipped Via LTL carrier of a 48' Semi Truck, Things to be noted as your making your purchase:

    • the customer is responsible for unloading the truck as the driver will not unload this for you.
    • Lift gate can not facilitate these items so it will not be available.
    • The customer is responsible for providing a forklift or means of removing your items or skids from the truck.
    • If there are issues with facilitating a lift or skid steer we can have this delivered to the nearest terminal at your request and you can pick up at the terminal with a trailer.
    • You are responsible for contacting the the freight company to set up a delivery schedule as we do not know your hours or schedule. We can provide the freight companies contact information if requested.
    • We are not responsible for additional freight charges for re-delivery if the customer is not available when the truck arrives

    When your item ships allow for 3-14 days of shipping time depending on your location.

     Specifications

    • Model: PSB-AFCF23B-AK

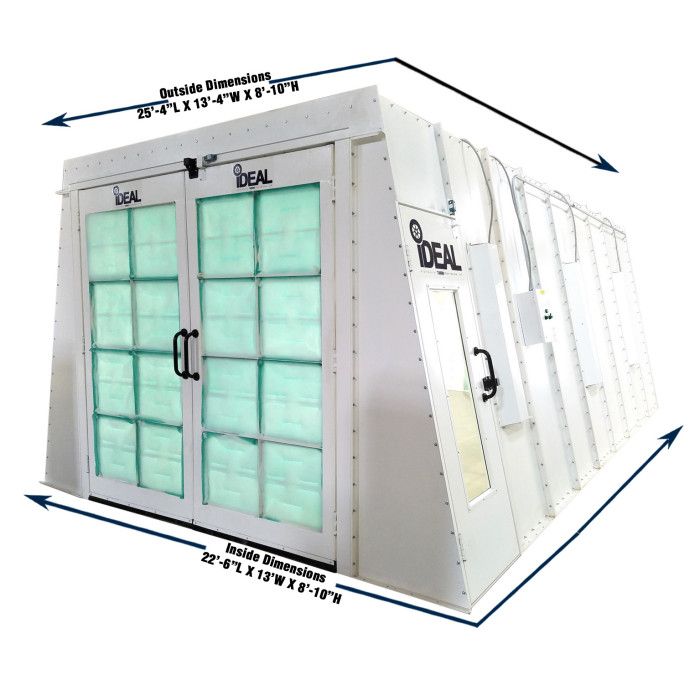

    • Inside Dimensions: 22'6"L x 13-W x 8.6"H
    • Outside Dimensions: 25'4"L x 13'4"W x 8'10"H3
    • Fan Motor: 24" Tube-Axial Fan, 3HP - 3Ph - 230/460VAC- 60HZ, Non-Spark Fan Blades, NEMA Rated
