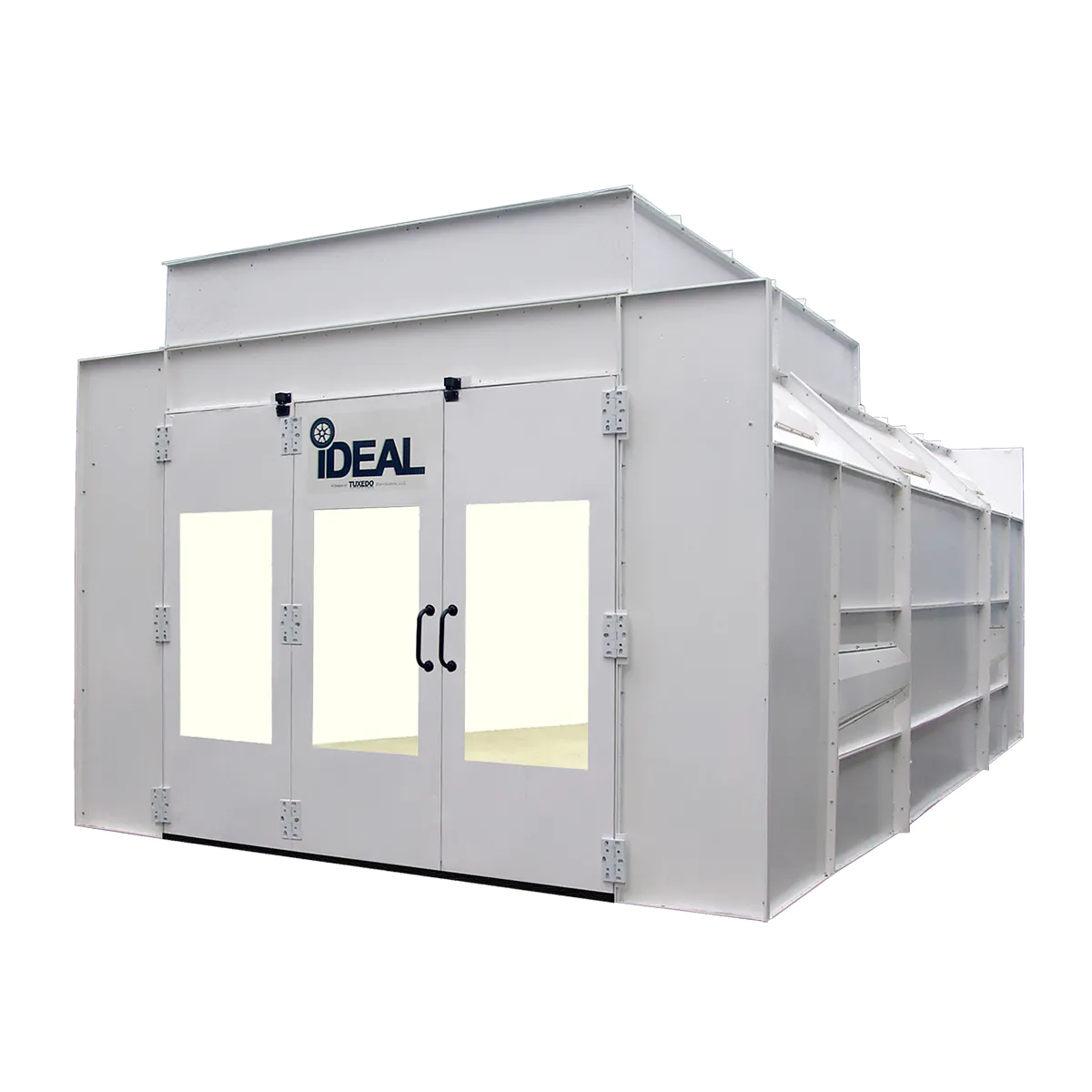

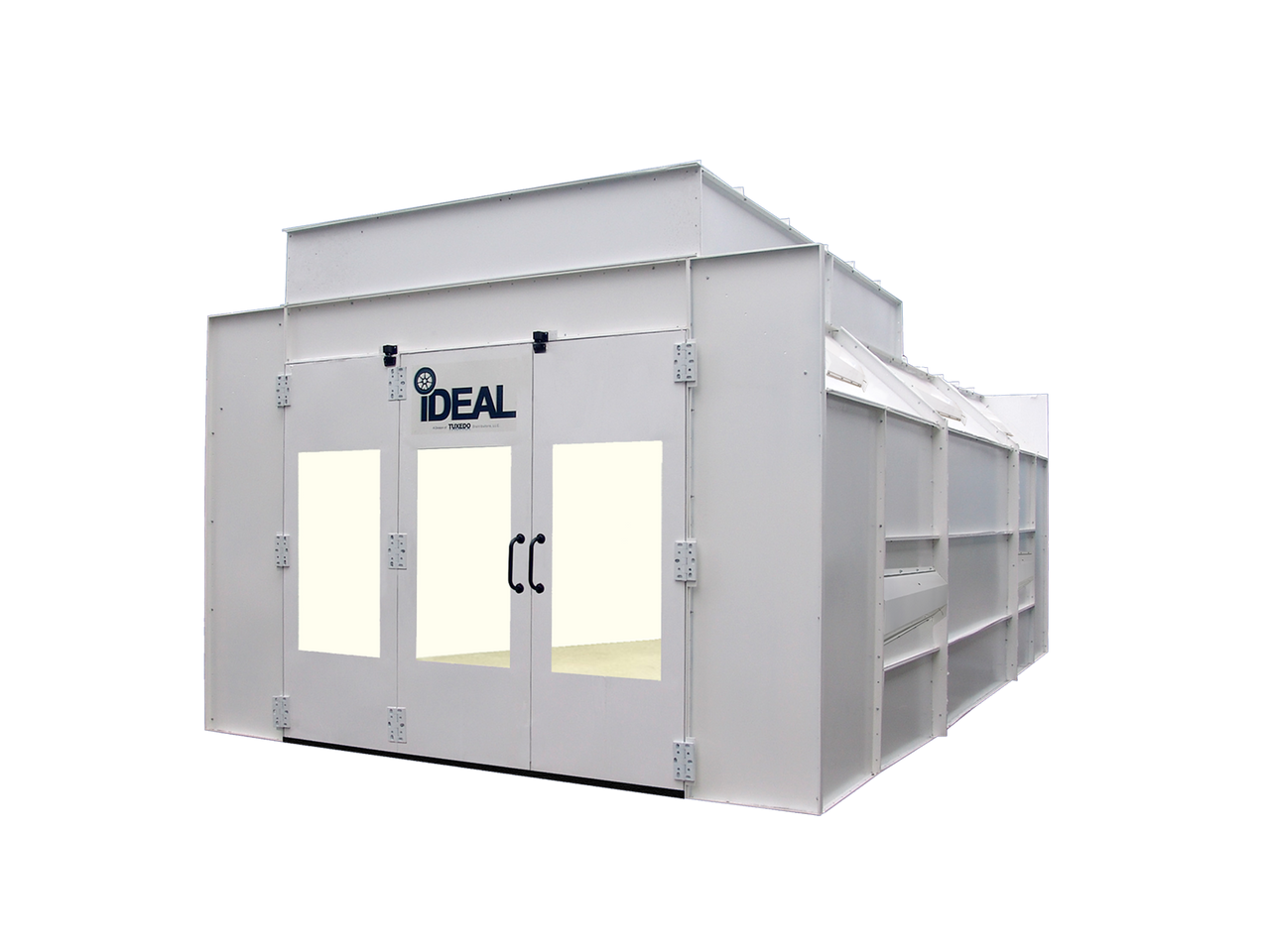

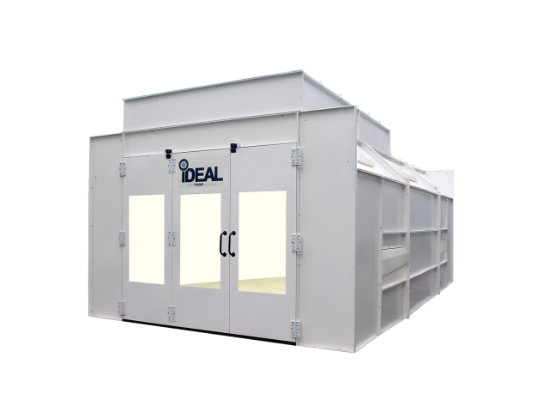

Commercial Semi Down Draft Paint Spray Booth (Assy) - 3 Phase

Commercial Semi Down Draft Paint Spray Booth - (1 Phase/ 3 Phase)

Item #: PSB-SEMIDD26B-AK
Price: $23,900.00
    The product is in stock Availability: In Stock - Ship time Varies
    Usually ships In In Stock - 2-4 days


    Update price

    About This Item

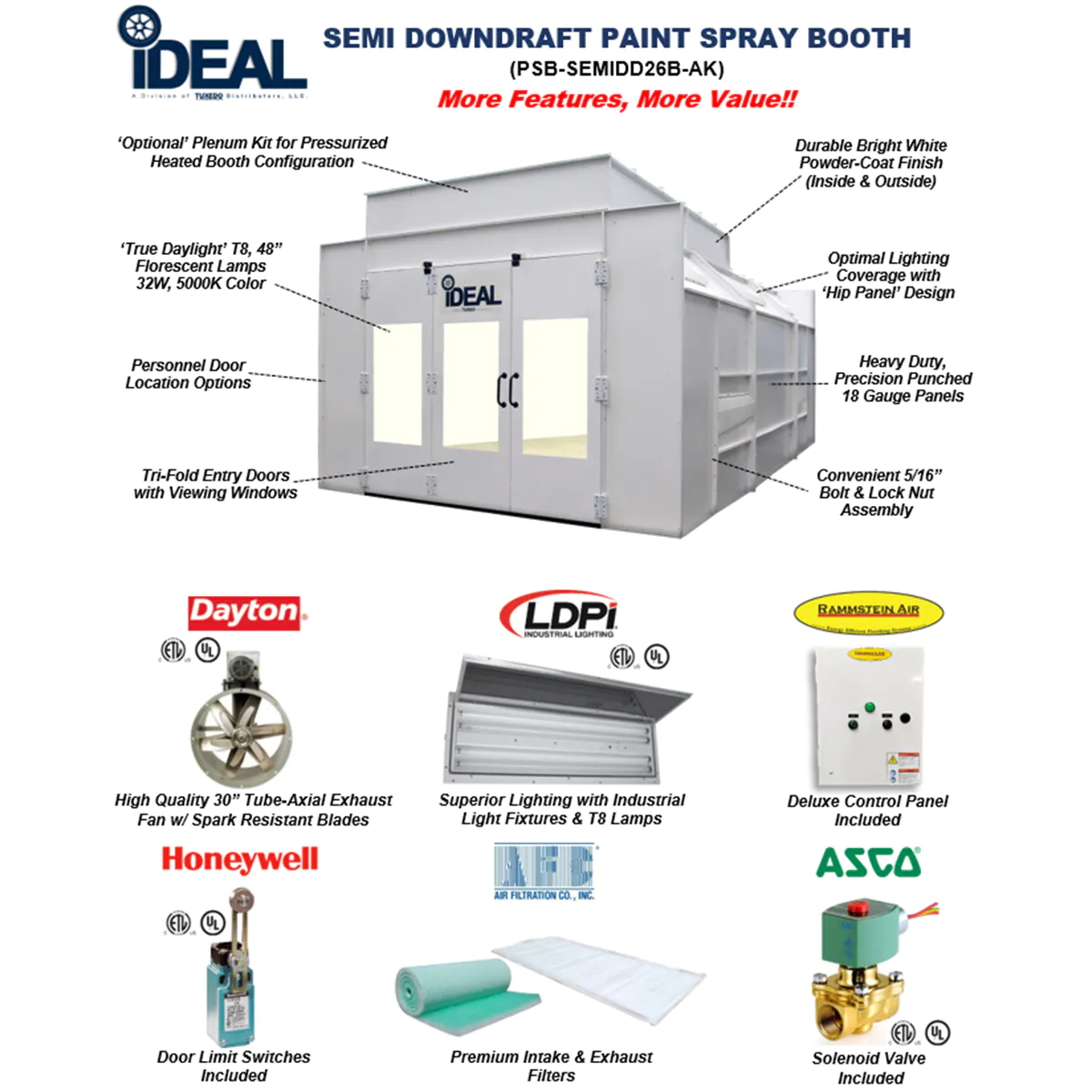

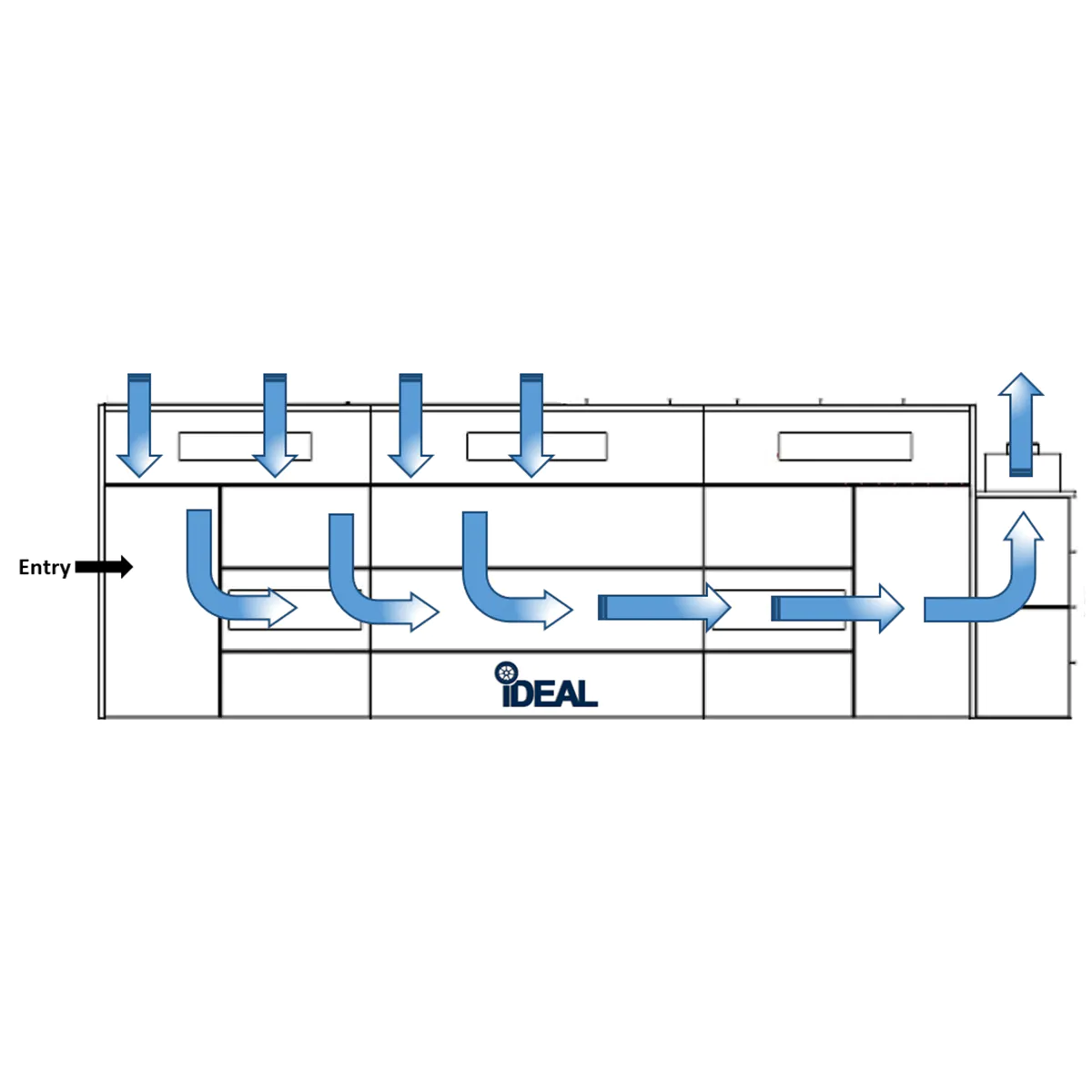

    These downdraft paint spray booths is a premium, commercial grade paint spray booth designed to provide superior lighting with optimal 'Semi-Downdraft' air flow to produce a high-quality paint finish quickly and efficiently. The iDEAL Semi Downdraft Booth is a great solution for automotive, Industrial and Wood Finishing applications while providing a safe and controlled ventilated work area. The exhaust fan draws filtered air through front ceiling intake filters and flows down toward the rear of the booth into a filtered exhaust chamber, Then discharged upwards through an exhaust fan and ducting. This includes a bright white powder coated finish (inside and outside walls), deluxe control panel, premium filters and high quality tube-axial exhaust fan complete the package for a premium, high quality paint spray booth that well set your quality and product superiority above your competitors. All at a great value and at an affordable cost.

    •  Typically ships within 48 hours
    • Heavy duty precision punched 18 gauge panel construction
    • Optimal air flow w/ CFM 12,200 @ .5 static pressure
    • Commercial grade 'hop panel' design for optimal lighting coverage
    • Inside Dimensions: 26'l x 14'W x 9'3"H
    • Convenient 5/16" bolt and nut construction
    • Deluxe control panel included
    • White powder coated panel finish (interior and exterior walls)
    • Manometer, Solenoid Valve, Hardware and Sealant included
    • UL Listed Dayton 30" tube-axial exhaust fan w/spark resistant fan blades
    • NEMA rated 3HP - 3ph - 230/460VAC - 60HZ motors standards
    • Premium AFC intake and exhaust filters
    • (10ct) LPDI Industrial lighting T-8 vertical light fixtures (4 lamps each)
    • (40ct) GE T-8 Fluorescent lamps - 32W, 5000K 4" length

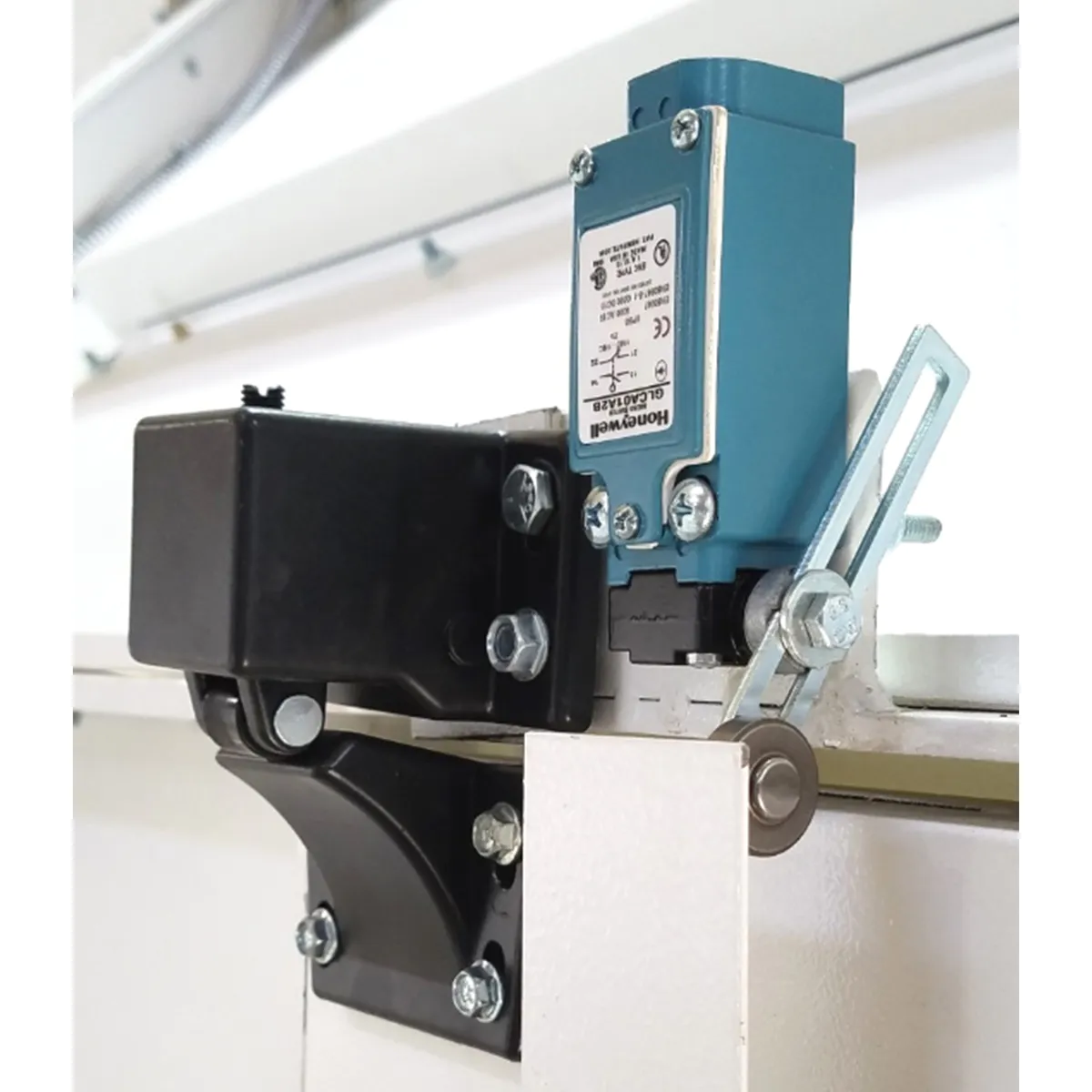

    • Tri-Fold entry doors w/viewing windows and shutoff switch

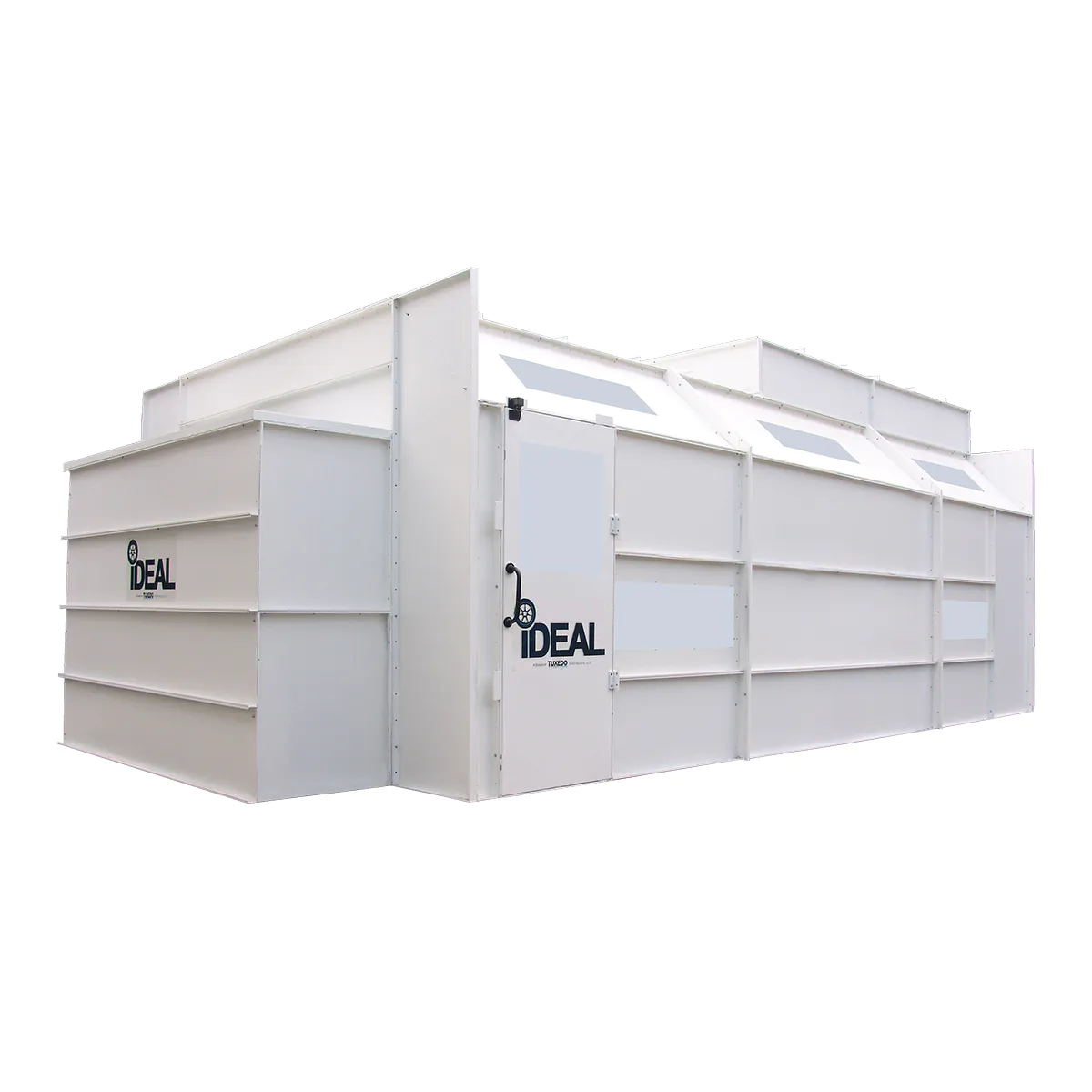

    • Personnel door w/ viewing window and shutoff switch
    • Meets NFPA 33 Standards

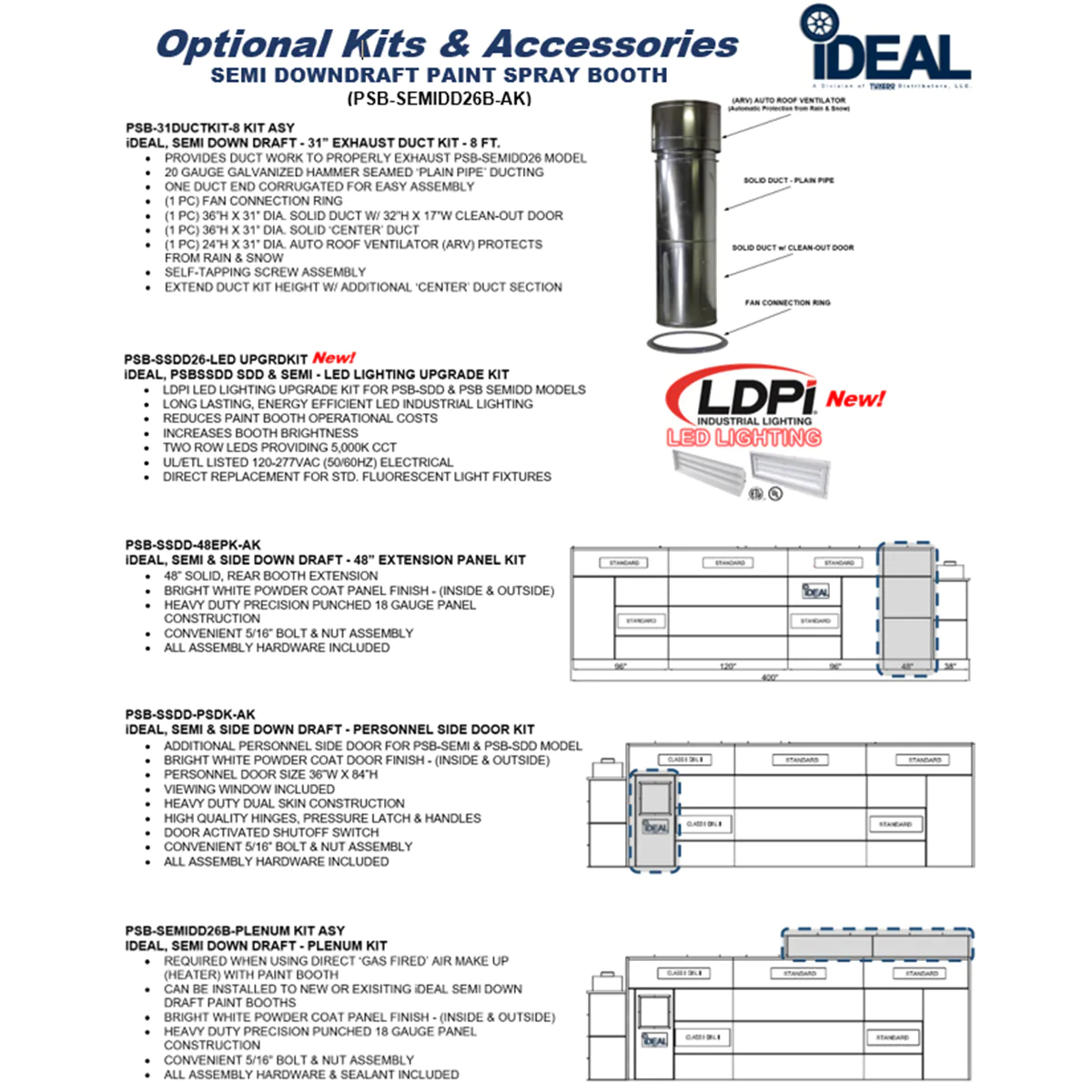

    • Optional; 1 Phase Electrical, Plenum Kit, Personnel door kit and booth extension kit


    Upgrade Options

    LED Lighting:

    https://www.creativecoatingsol...

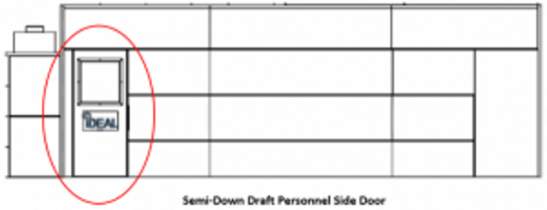

    Side Personnel Door:

    https://www.creativecoatingsol...

    Stand Alone Paint Mixing Room

    https://www.creativecoatingsol...

    Heater/Makeup Unit:

    https://www.creativecoatingsol...

    iDEAL's Semi Down Draft Paint Spray Booth is precision constructed with heavy duty 18 Gauge galvanized steel panels, Powder coated both inside and outside. This booth is designed in accordance with NFPA codes and OSHA national specifications. Our semi-Down Draft booth offers superior airflow performance granting you a clean work environment for a great finish.

    High quality, heavy duty precision construction, coupled with premium quality components and features, All working together to give you the iDEAL difference.

    • Ships typically within 48 hours

    Specifications

    • Model: PSB-SEMIDD26B-AK

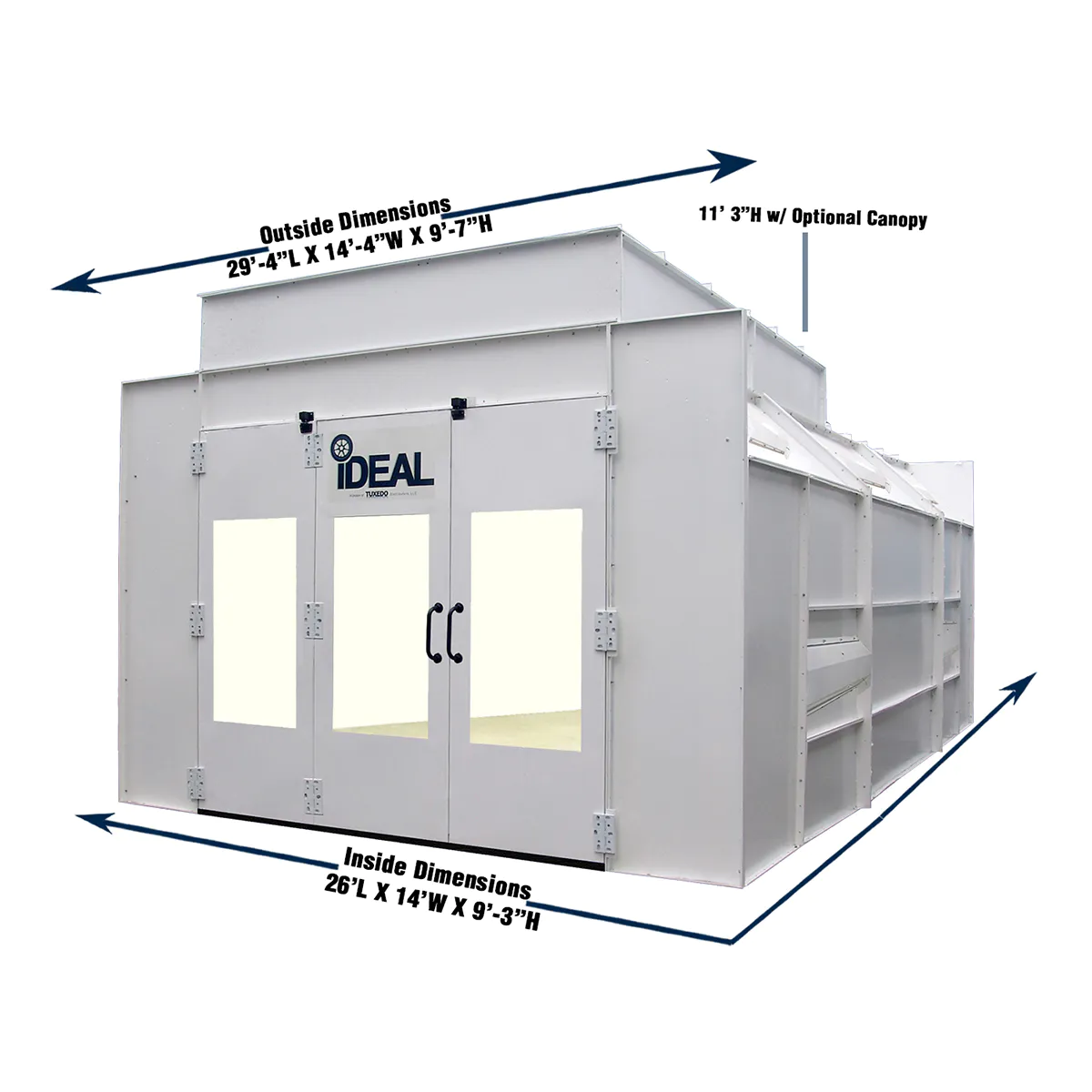

    • Inside Dimensions: 26'L x 14'W x 9'-3"H
    • Outside Dimensions: 29'-4"L x 14'-4"W x 9'-7"H
    • Fan/Motor: 30" Tube-Axial Fan, 3HP - 3PH - 230/460VAC - 60HZ, Non-Sparking Blades - NEMA Rated
    • CFM: 12,200 @ .5 Static Pressure
    • Lighting: (10ct) T-8 Fixtures, 4 Bulbs Per Fixture

    Equipment is shipped Via LTL carrier of a 48' Semi Truck, Things to be noted as your making your purchase:

    • the customer is responsible for unloading the truck as the driver will not unload this for you.
    • Lift gate can not facilitate these items so it will not be available.
    • The customer is responsible for providing a forklift or means of removing your items or skids from the truck.
    • If there are issues with facilitating a lift or skid steer we can have this delivered to the nearest terminal at your request and you can pick up at the terminal with a trailer.
    • You are responsible for contacting the the freight company to set up a delivery schedule as we do not know your hours or schedule. We can provide the freight companies contact information if requested.
    • We are not responsible for additional freight charges for re-delivery if the customer is not available when the truck arrives

    When your item ships allow for 3-14 days of shipping time depending on your location.
