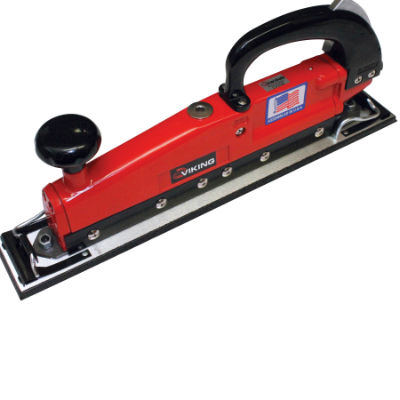

Dual Straight Line Air Sander with Sanding Shoe - Professional Pneumatic Body File

A dual straight line air sander is used for block sanding, panel straightening, and surface leveling in automotive body work. The straight-line stroke removes high spots, levels body filler, and prepares surfaces for primer without leaving the circular swirl patterns associated with DA orbital sanders.

The "shoe" refers to a rigid sanding pad or backing plate attached to the sander's base. The shoe distributes sanding pressure evenly across a flat surface, functioning similarly to a hand-held sanding block. It helps maintain a flat, level sanding plane on large auto body panels.

Most pneumatic straight line sanders operate at 90 PSI at the inlet. A minimum 3–5 CFM air supply is typically required. Always refer to the specific tool specifications and connect a properly rated air compressor to ensure optimal performance and tool longevity.

A straight line sander moves in a back-and-forth linear motion, ideal for leveling body filler and flattening large panels without swirl marks. A DA (dual action) orbital sander moves in a random elliptical pattern, better suited for finish sanding and paint prep. Straight line sanders are preferred for bodywork blocking and metal straightening.

For initial body filler leveling, start with 40–80 grit. Progress to 120–180 grit for feathering and blending, then 220–320 grit for final surface prep before primer. The sanding shoe accepts standard strip-cut or roll sandpaper in the appropriate size for the shoe width.

Yes, in most cases. The dual straight line air sander replicates the flat, controlled action of hand block sanding at a much higher speed, significantly reducing labor time on large panel areas. It is the preferred tool for production body shops and professional restoration work.

The Dual Straight Line Air Sander with Shoe is available directly from Creative Coating Solutions at $272.50. It ships within 2–4 business days and is in stock. Order online at creativecoatingsolutions.com or contact their customer service team for assistance.
