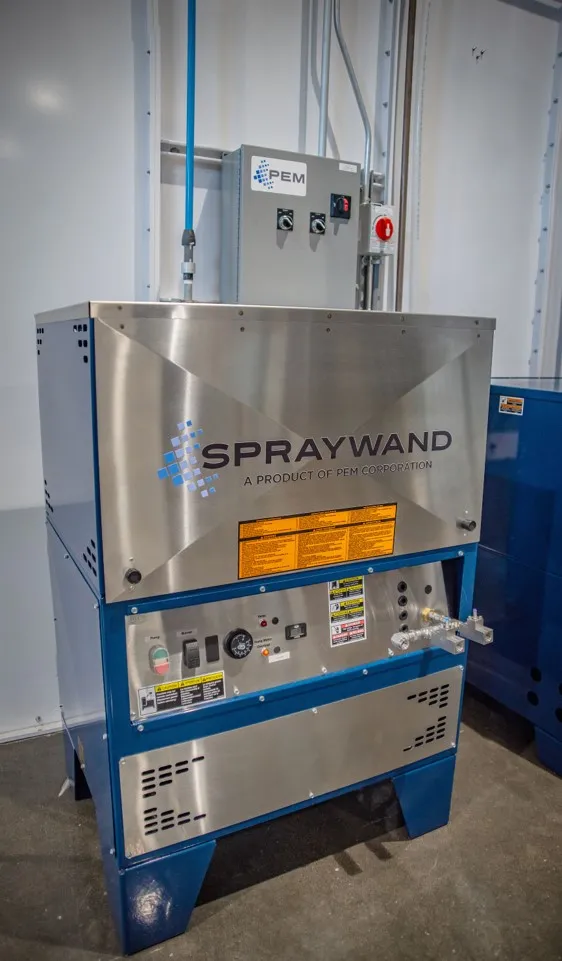

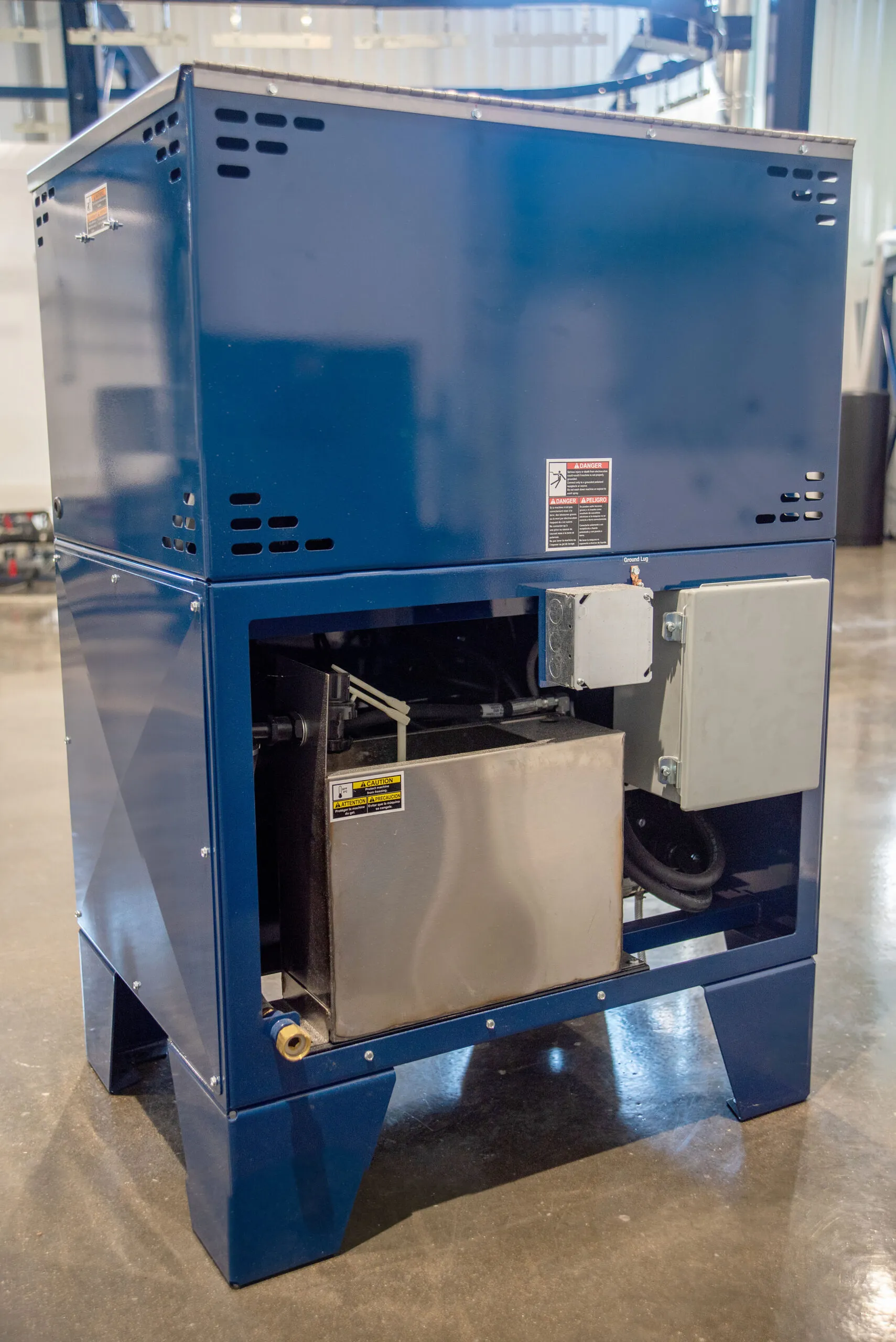

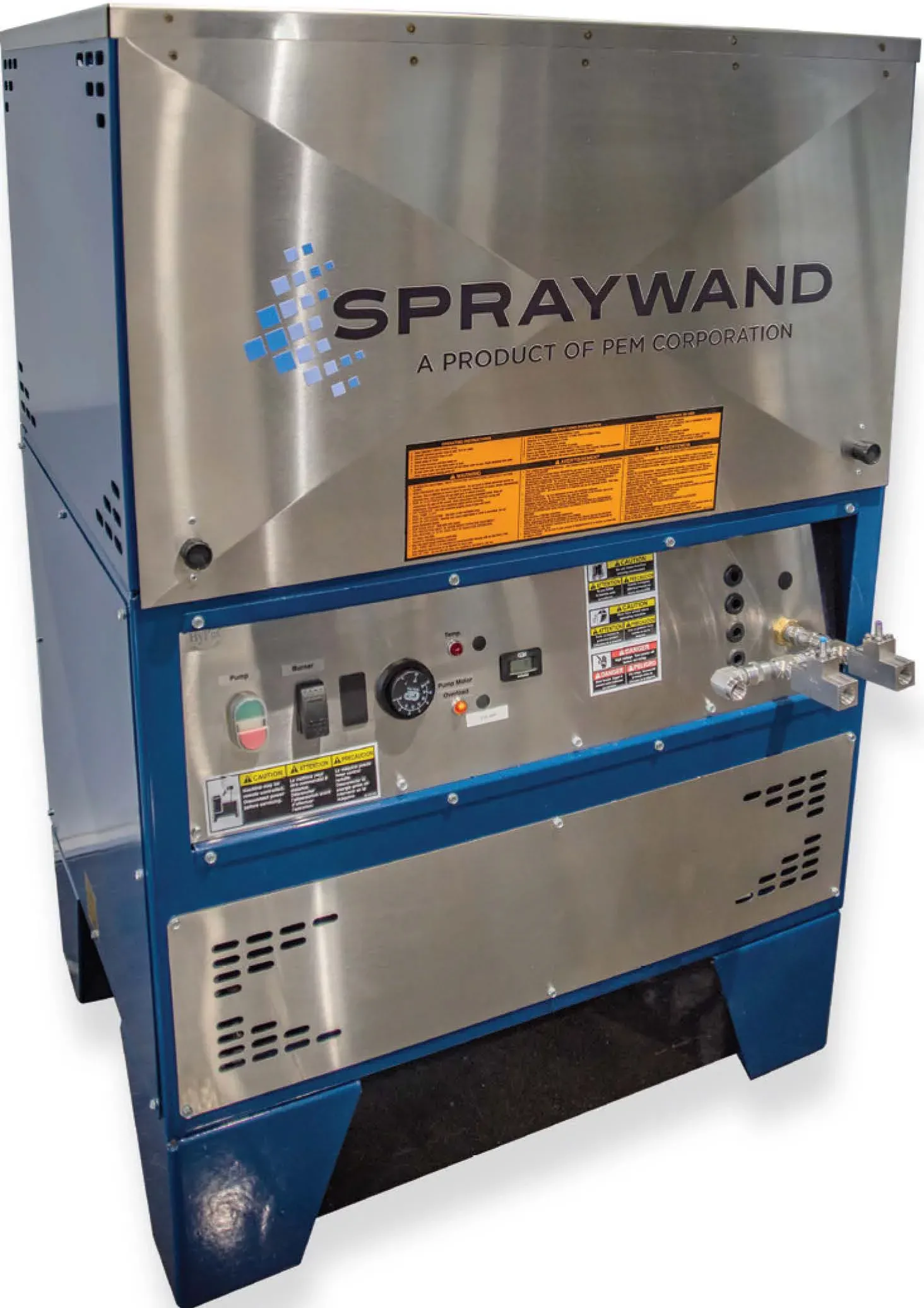

E-300 Manual Pretreatment Application System
The E-300 SprayWand system will deliver the same quality pretreatment application process and popular downstream injection system with an alternative to natural gas or liquid propane burners. The E-300 delivers electrically heated water which does not require a coil or stacked exhaust, resulting in low cost and quicker installations.
The E-300 SprayWand is manufactured with the same quality components and features - Volume, pressure and precisions as all the other SprayWand family products. It is designed for any OEM, Fabricator or job shop that has the need for efficient metal cleaning and pretreatment process such as the application of degreasers, alkaline, phosphates, zirconium and seals.
Advantages:
Faster InstallationNo ExhaustFixed Orifice Injectors Deliver Precise Chemical Metering For Maximum Performance and Savings Minimum Wear and Tear, Provides Reliable Performance and Long Product LifeEliminate Burner and Coil MaintenanceReduced EmissionsETL and CSA ListedFixed Orifice InjectorsAdjustable Wash TemperaturesRedundant Safety FeaturesDownstream Injection Provides Better, Faster Cleaning-Pump Components Are Not Exposed To ChemicalsEasy-To-Read Diagnostic PanelVersatile Design Offers Easy Setup For Any Pretreatment NeedNEMA Motors and CAT PumpsEasy InstallationBeta Pumps For pH adjust and Coil Conditioner Options
Specifications:

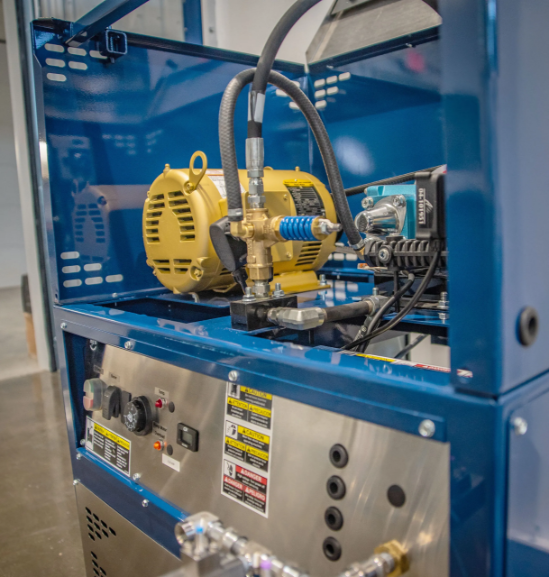

- Horsepower: 7.5
- Electrical: 460V 3 Phase/ 90A Service
- Connection: 4 Wire Through Junction Box
- GPM: 5
- Pressure (PSI): Pretreatment 1500 PSI, Rinse 1500 PSI
- Water Connection: Standard Garden Hose, Female Swivel
- Nozzles: 1-15085 x 1/4" NPT
- Dimensions: 32"L x 24"W x 48"H
- Weight: Dry 500 LBS., Shipping 475 LBS
Please Print, Fill Out and Return The Specification Sheet Below For A Formal Quote
*** Accessory and Add -On Options ***
PEM offers a variety of SprayWand options to help operators easily and efficiently prepare large and complex parts and assemblies for final metal finishing.

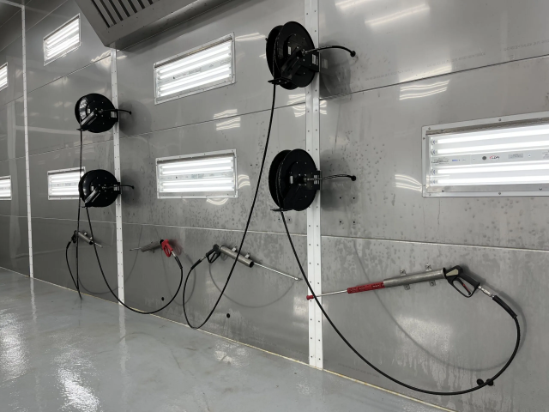

86020 OPTIONAL: HOSE REELS - 50' Hose max, SS Fittings
85063 OPTIONAL: JUMPER HOSE, 15' SS 3/8" Hose & Fittings, Injector to Hose Reel

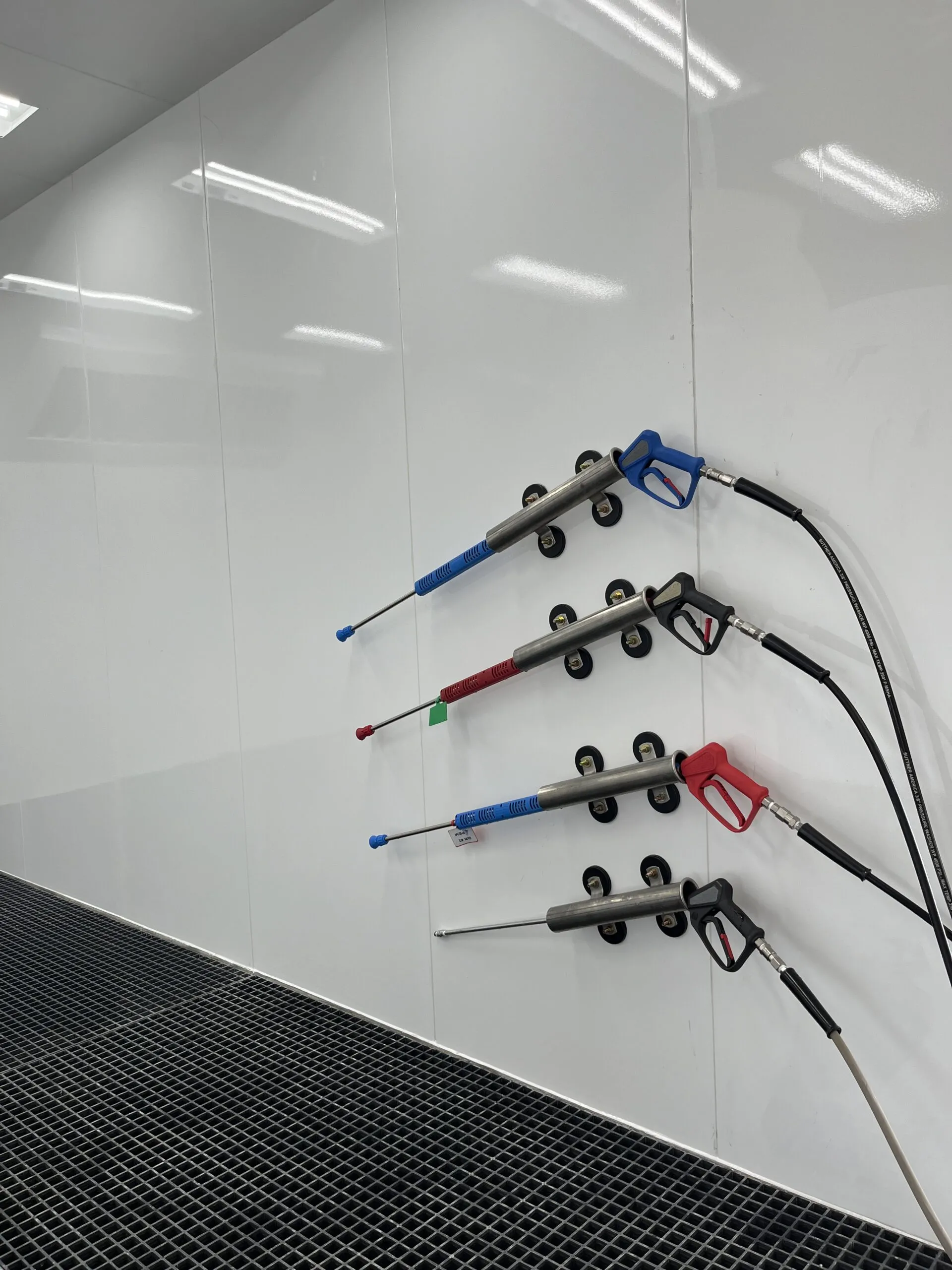

86003 OPTIONAL: GUN HOLDERS, SS
86017 OPTIONAL: BACKDRAFT, AUTO DAMPER, 24V

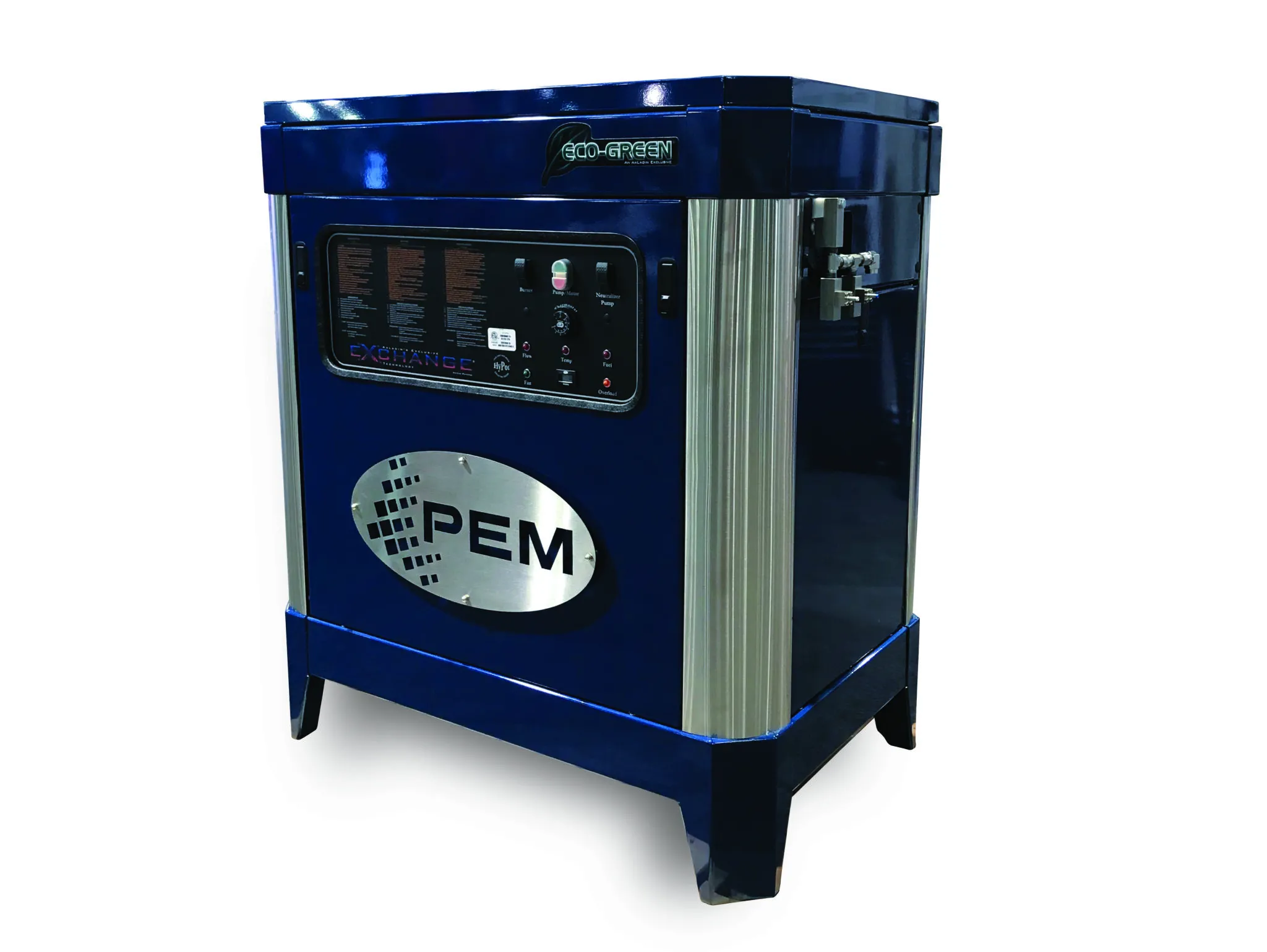

93213 OPTIONAL: P-300 SprayWand with 1/2" STAINLESS STEEL 2 STAGE COIL
