Electric Paint Booth Heating System (208V-3 Phase-optional 230v)

Electric Paint Booth Heating System (208V-3 Phase-optional 230v)

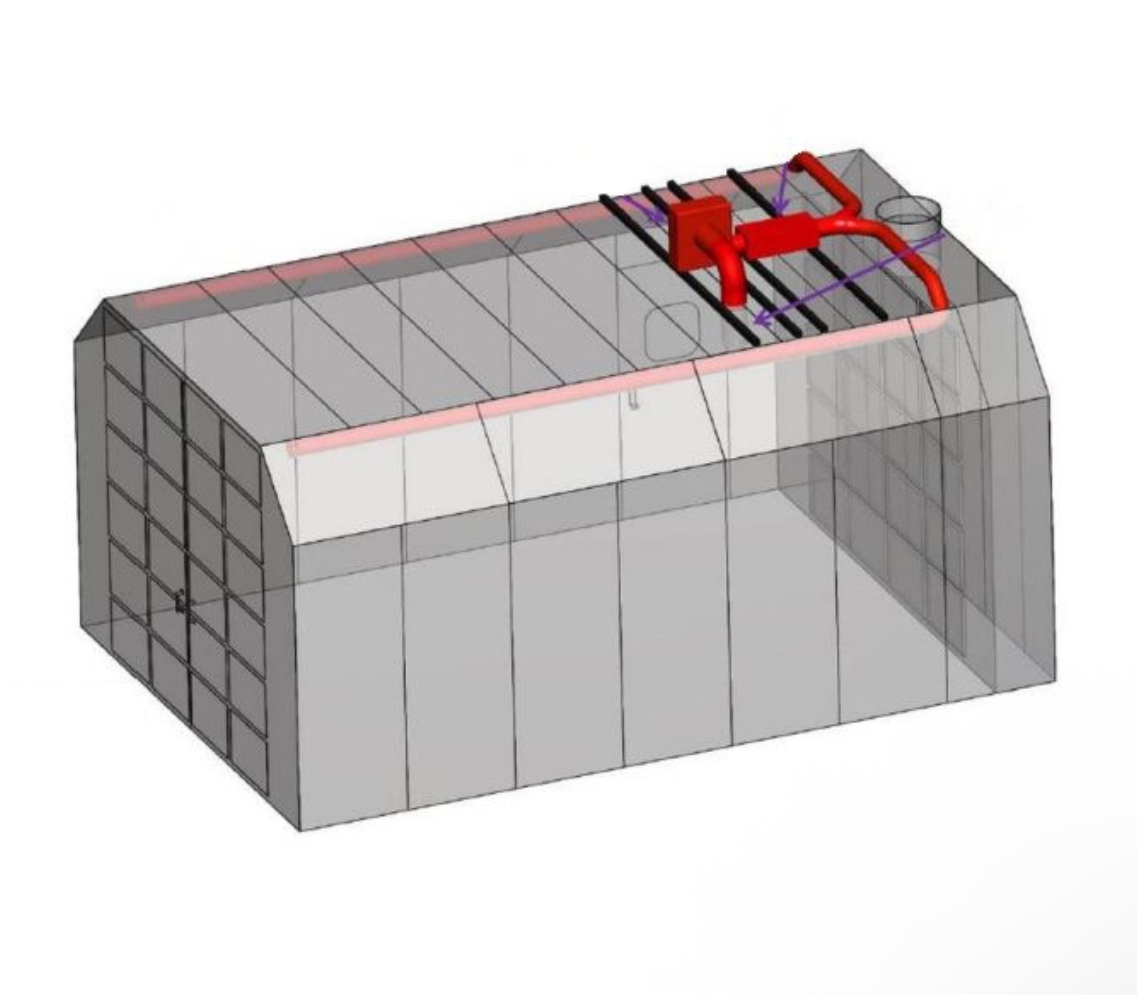

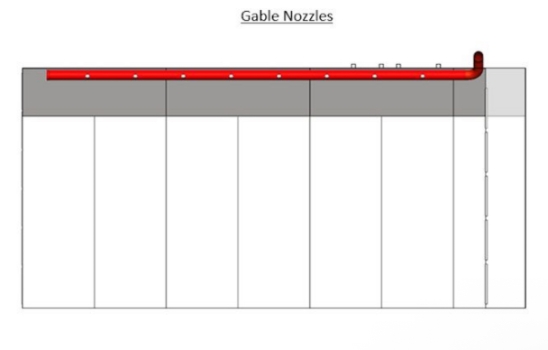

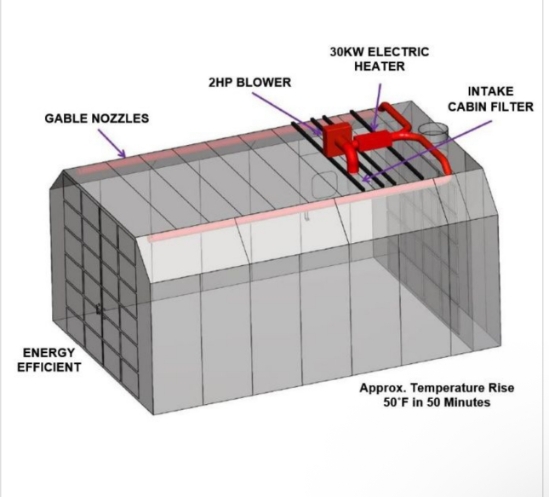

This electric Air Makeup Unit is a combined electric heater and waterborne paint drying system. The system operates by pulling air f from the booth through the blower and the heater delivering the heated air back into booth via gable mounted air nozzles. The RS-3001 has four easily selected user: Pre-Heat, Spray, Heat Flash-Off, Bake

The RS-3001 electric paint booth heater is less expensive to install and operate than our RS-1001 Gas fired paint booth heater. A typical 30KW electric paint booth heater costs an average $2..00 per cycle (using $0.12/KWH)s which is significantly less than a similar gas fired paint booth heater while providing 45°F-50°Ftemperature increase in approximately 50 minutes. This increase allows the booth to reach the desired flash off temperature for waterborne finishes and to reach a temperature high enough to bake finish coat

***This is a Special Order Item Only - There Will Be A Delay In Shipping***

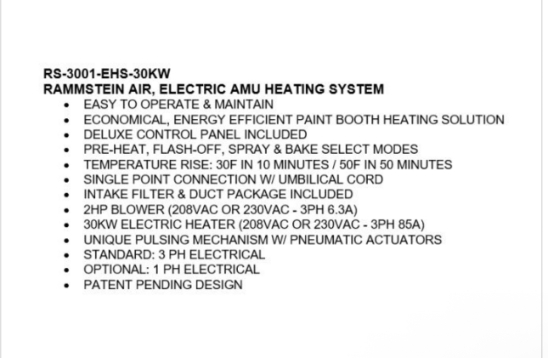

Features:

• Easy to operate
• Energy efficient heating

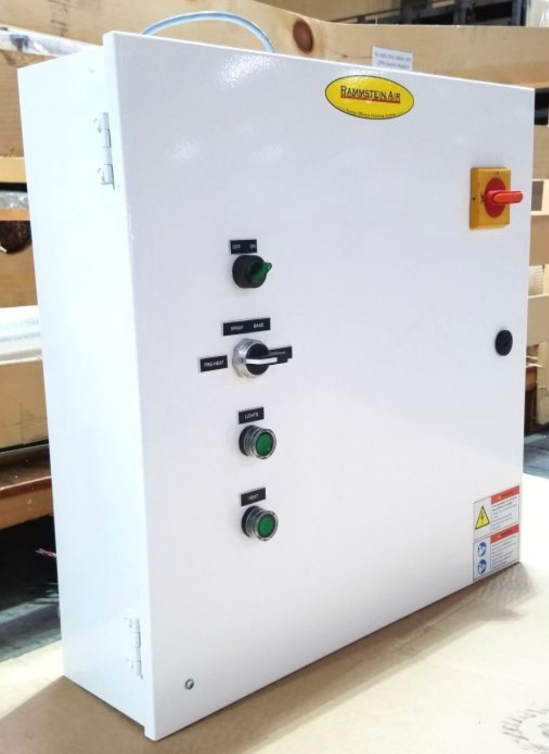

• Control panel included
• Selected Modes: Pre-Heat, Flash-Off, Spray and Bake
• Temperature Rise: 30°F in 10 minutes / 50°F in 50 minutes
• Single point connection with umbilically cord
• Intake filter and duct package included
• 2HP blower motor
• 30KW Electric heater
• Patent pending design

Specifications:

• Blower Motor: 2HP / 208VAC or 230VAC / 6.3A @208V 3Ph
• Heating Element: 30KW / 208VAC or 230VAC / 85A @ 208V
• Temperature Rise: 30F in 10 Minutes / 50F in 45 Minutes
• Control Panel: 0.5A @ 110

For use with iDEAL Side Down Draft, Semi Down Draft, and Cross Flow Paint Spray Booths.
