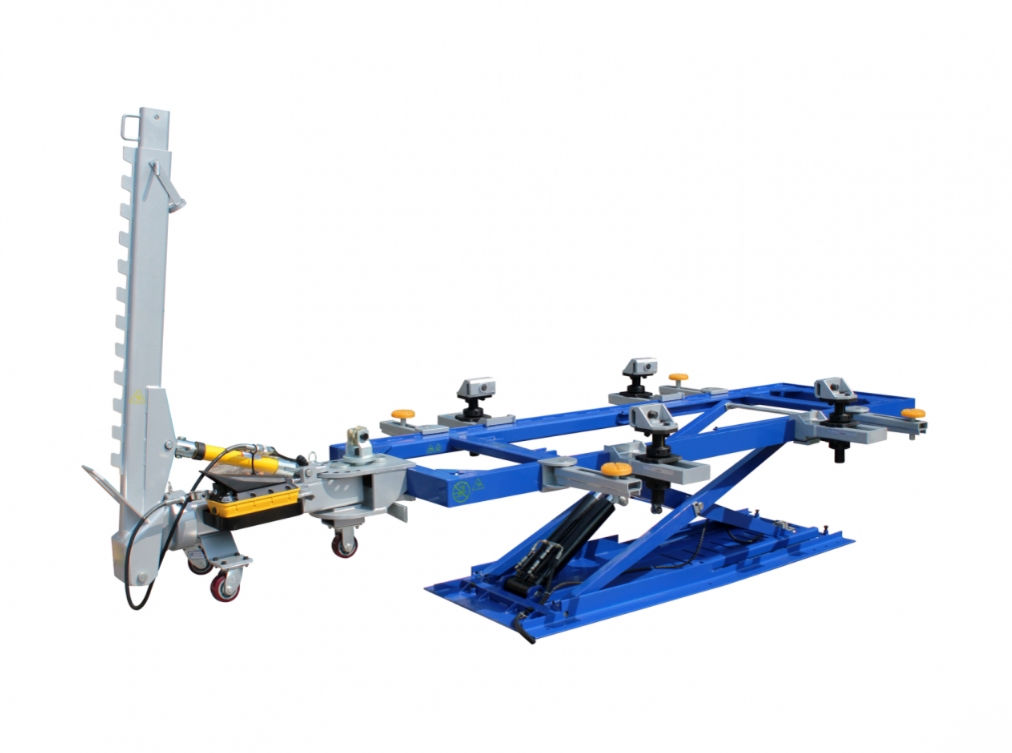

FR-55 Scissor Frame Rack Machine

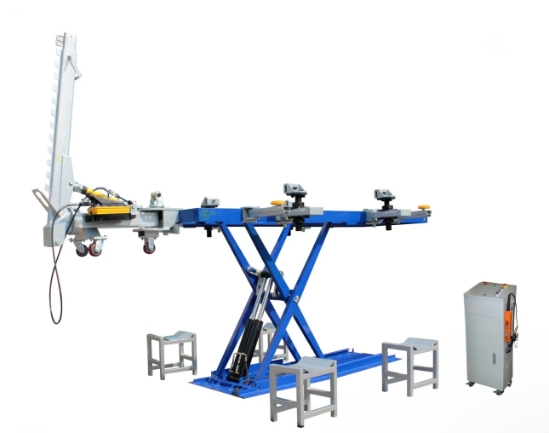

The FR-55 Scissor Lift and Frame Rack Is unique, compact and a highly versitile design. This high quality, compact frame straightening machine with the versatility of an automotive lift, designed to service Full-Frame or Uni-Body tyoe of vehicles with its 5,500 lb. lifting capacity. The FR-55 incorporates a 10 Ton 'multi-angle/adjustable height' Pull Tower with 360degree pulling capability along with adjustable height clamping assemblies and universal positioning Swivel Arms and Lift Pads. The FR-55 also comes standard with Pull Chain with Hook and Wheel Stands.
Key Features:

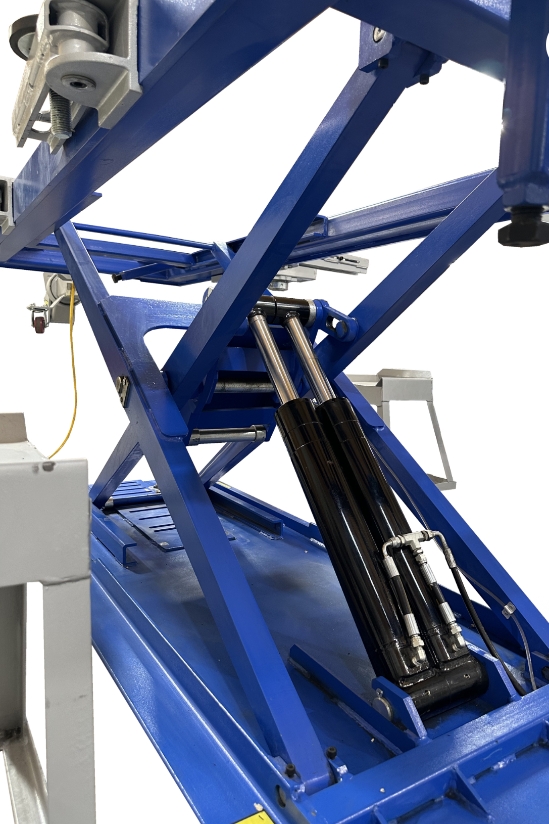

- Scissor type operation with 5,500lbs of capacity

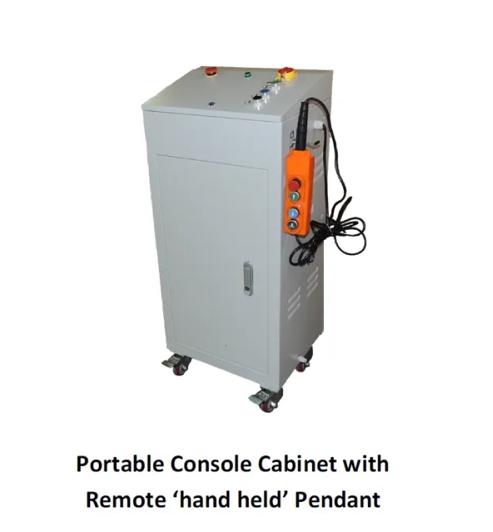

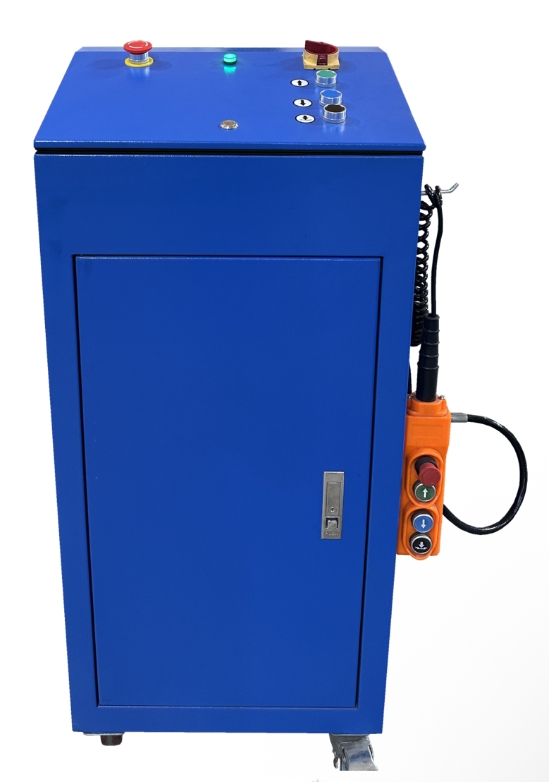

- Simple console operations for raising and lowering

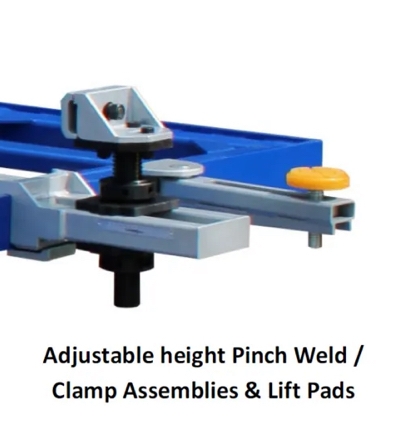

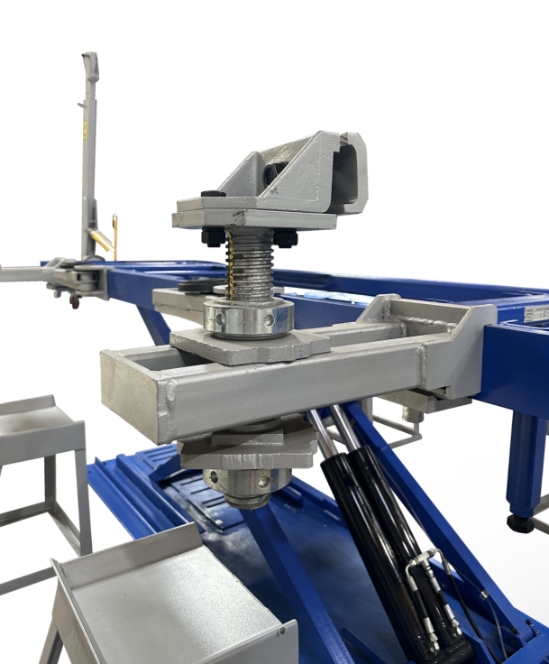

- Universal anchoring system with adjustable height pinch weld assemblies

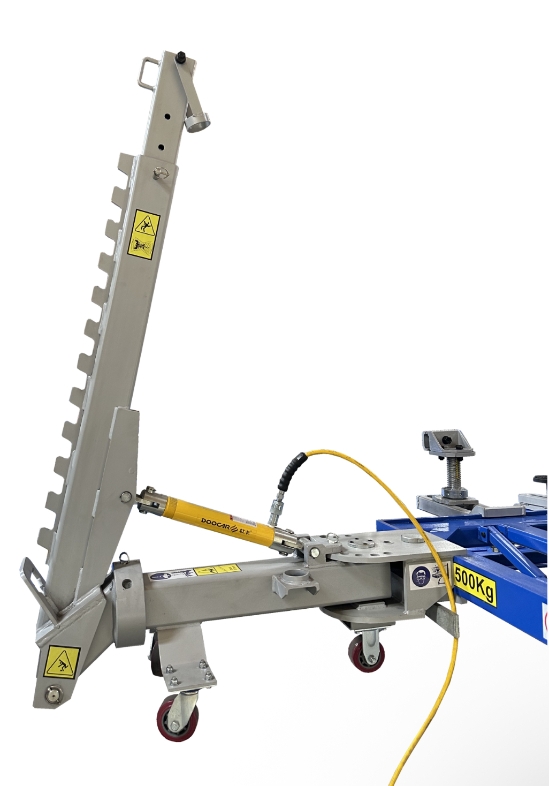

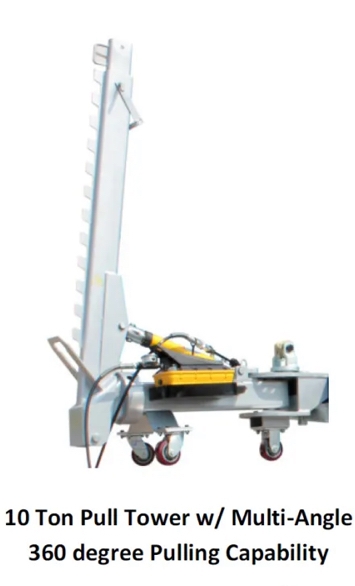

- 10 ton pulling tower with down roller
- Quick disconnect hydraulic fittings
- 10' pulling chain with hook
- High quality air/hydraulic pump with pressure gauge
- Universal wheel stands
- Powder coated finish

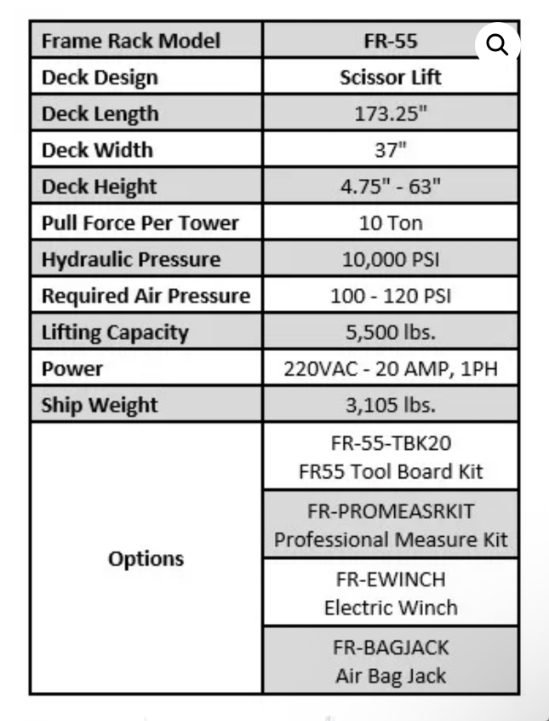

Specifications:
- Deck Design: Scissor Lift

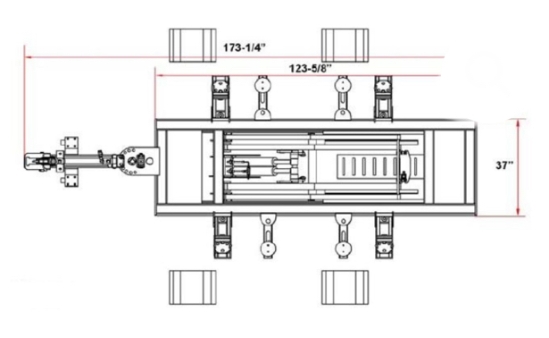

- Deck Length: 173.25"
- Deck Width: 37"

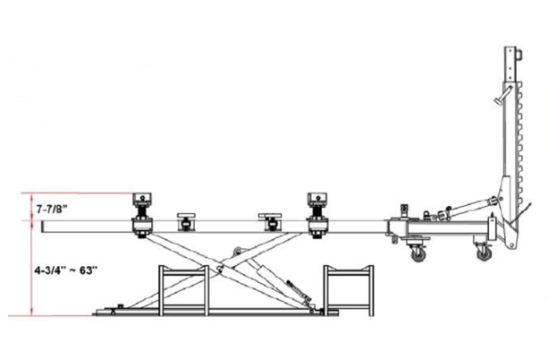

- Deck Height:4.75" x 63"
- Pull Force Per Tower: 10 Ton
- Hydraulic Pressure:10,000 PSI
- Required Air Pressure: 100-120 PSI
- Lifting Capacity: 5,500 LBS
- Power: 220VAC - 20 AMP, 1PH
- Ship Weight: 3,105 LBS
