Gas Paint Booth Heater / Air Makeup Unit (3 Phase)

Gas Paint Booth Heater / Air Makeup Unit (3 Phase)

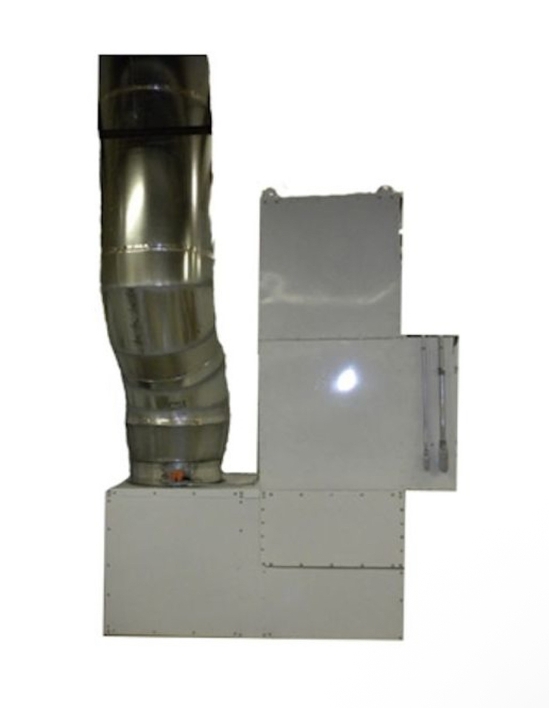

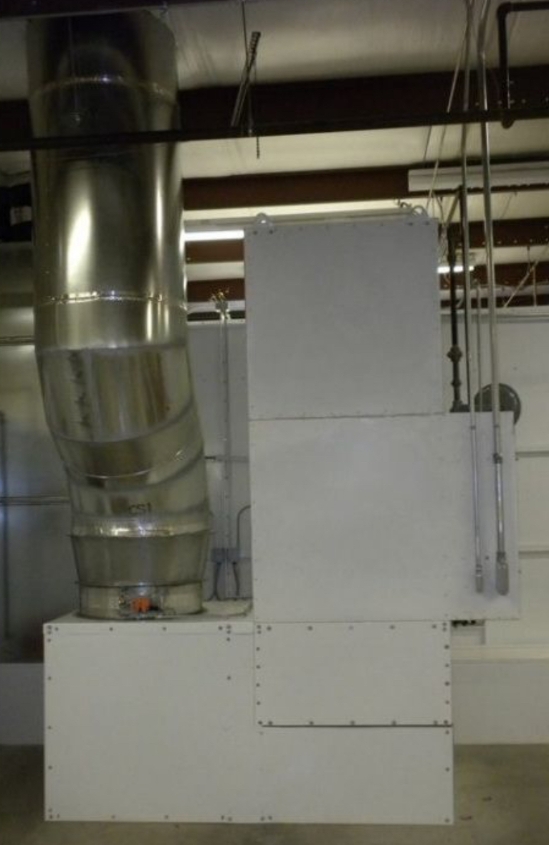

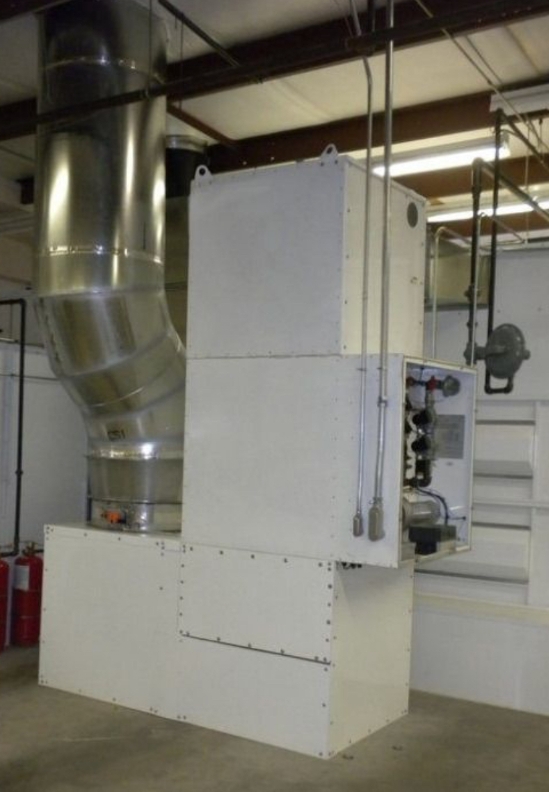

This RS-1001 10 HP Gas Paint Booth Heater is a high grade professional paint booth heater that provides 13,000 BTU's of direct-fired heat from either Natural Gas or Propane. This heater can be installed in a vertical or side discharge configuration. This unit features Rammstein Air ELT Listed deluxe control panel and truly variable Variflow Technology. The RS-1001 comes standard with a Vertical Stand, Filter Box and Filters.

Features:

• Easy to operate
• High quality professional grade paint booth heater
• Operates on natural gas or propane

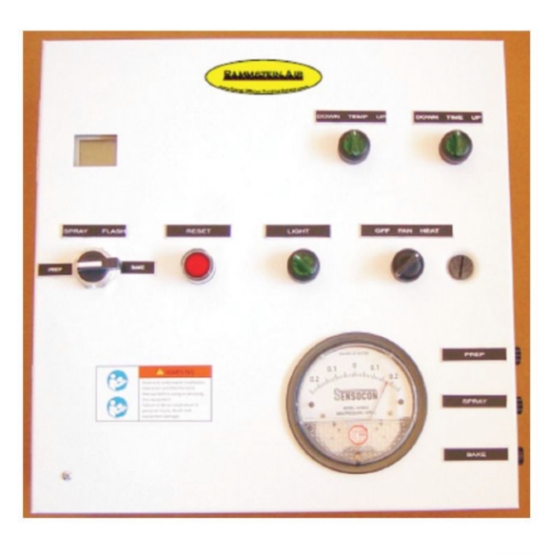

• Deluxe control panel with hour meter and status message
• Time displays for cycle time and elapsed time
• Truly variable Veriflow Technology
• Exhaust VFD fused and wired
• Vertical/ Side discharge configuration
• Durable white powder coated inside and outside

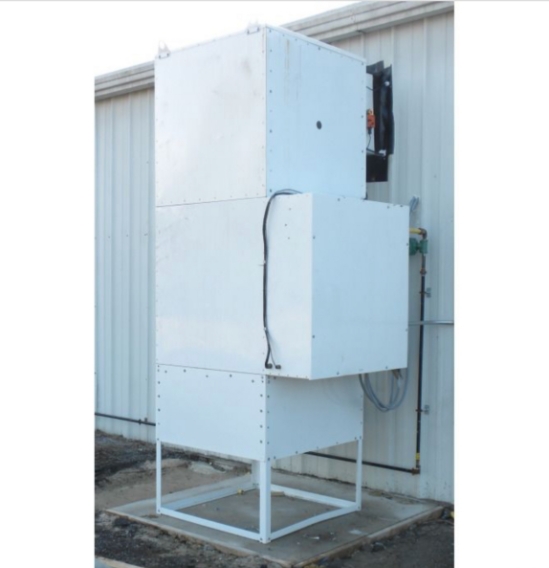

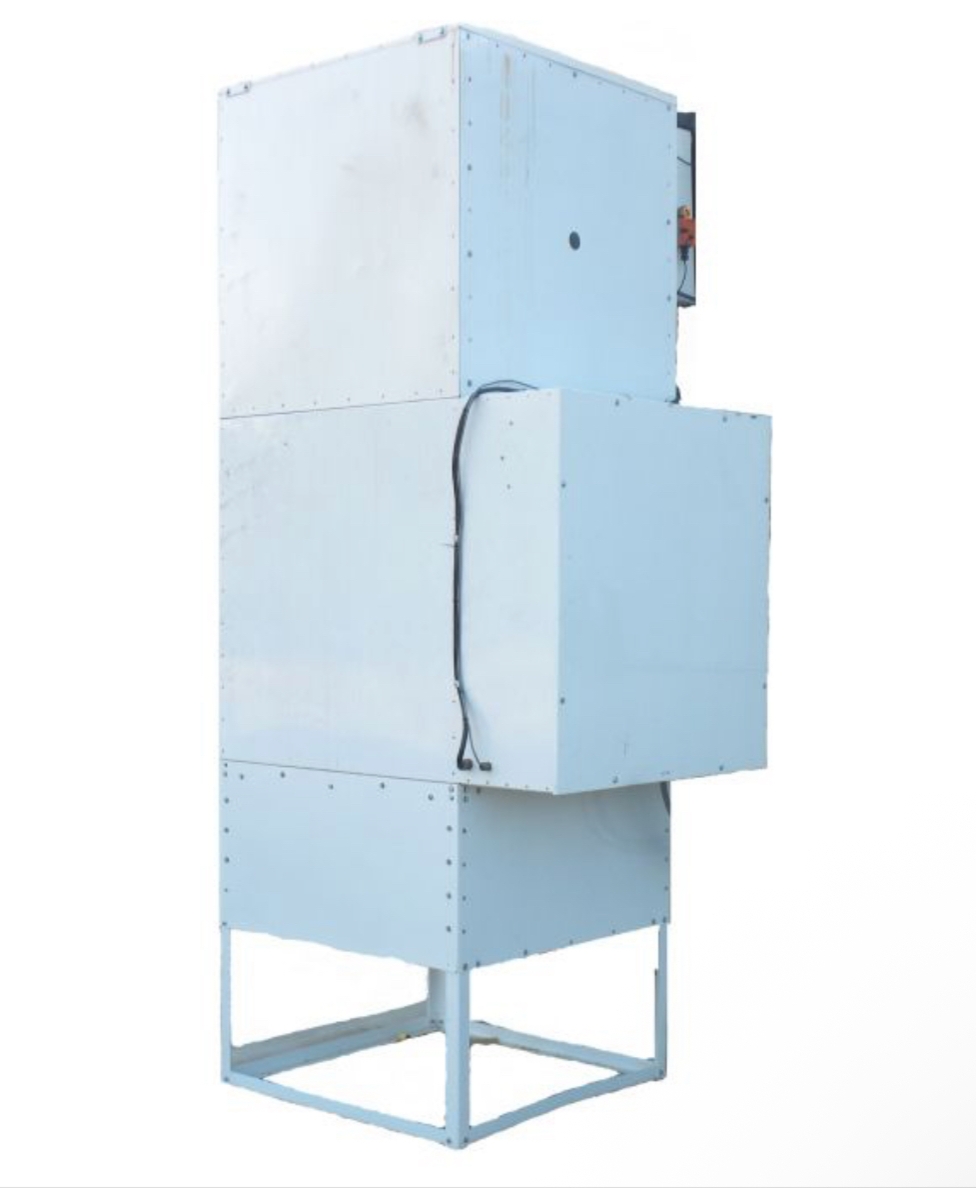

• Vertical stand, filter box and filters included
• Interlock status indicator lights
• 30' umbilical cord
• Single point connection
• ETL Listed control panel
• Standard 3 phase/Optional single phase (1 phase)

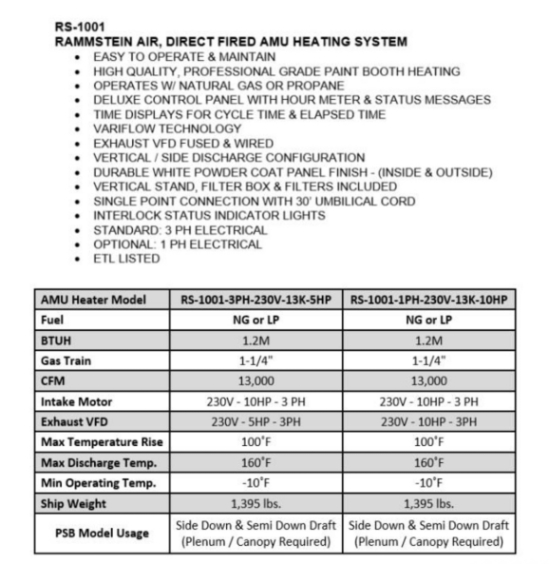

Specifications:

• Fuel: Natural Gas or Propane
• Max BTUH: 1.2M
• Gas Train: 1-1/2"
• CFM: 13000
• Intake Motor: 10HP, 230V, 3 Phase
• Exhaust VHD: 5HP, 230V, 3 Phase
• Max Temp Rise: 100°F

• Max Discharge Temp: 160°F

• Min Operating Temp: 10°F

• Shipping Weight: 1395 Lbs.

• Shipping Dimensions: 908"L x 65"W x 54"H

• PSB Model Usage: Side Down and Semi-Down Draft Models

•


For Use With iDEAL Side Down & Semi Down Draft
Paint Spray Booth models:

PSB-SDD26B-1PH (2 Exhaust Duct Kits Required)
PSB-SDD26B-3PH (2 Exhaust Duct Kits Required)
PSB-SEMIDD26B-1PH
PSB-SEMIDD26B-3PH

*Plenum / Canopy Kit Required For Use With Side Down & Semi Down Draft Paint Booths.
