Hanging Grid System for Powder Coat Ovens - Maximize Load Capacity

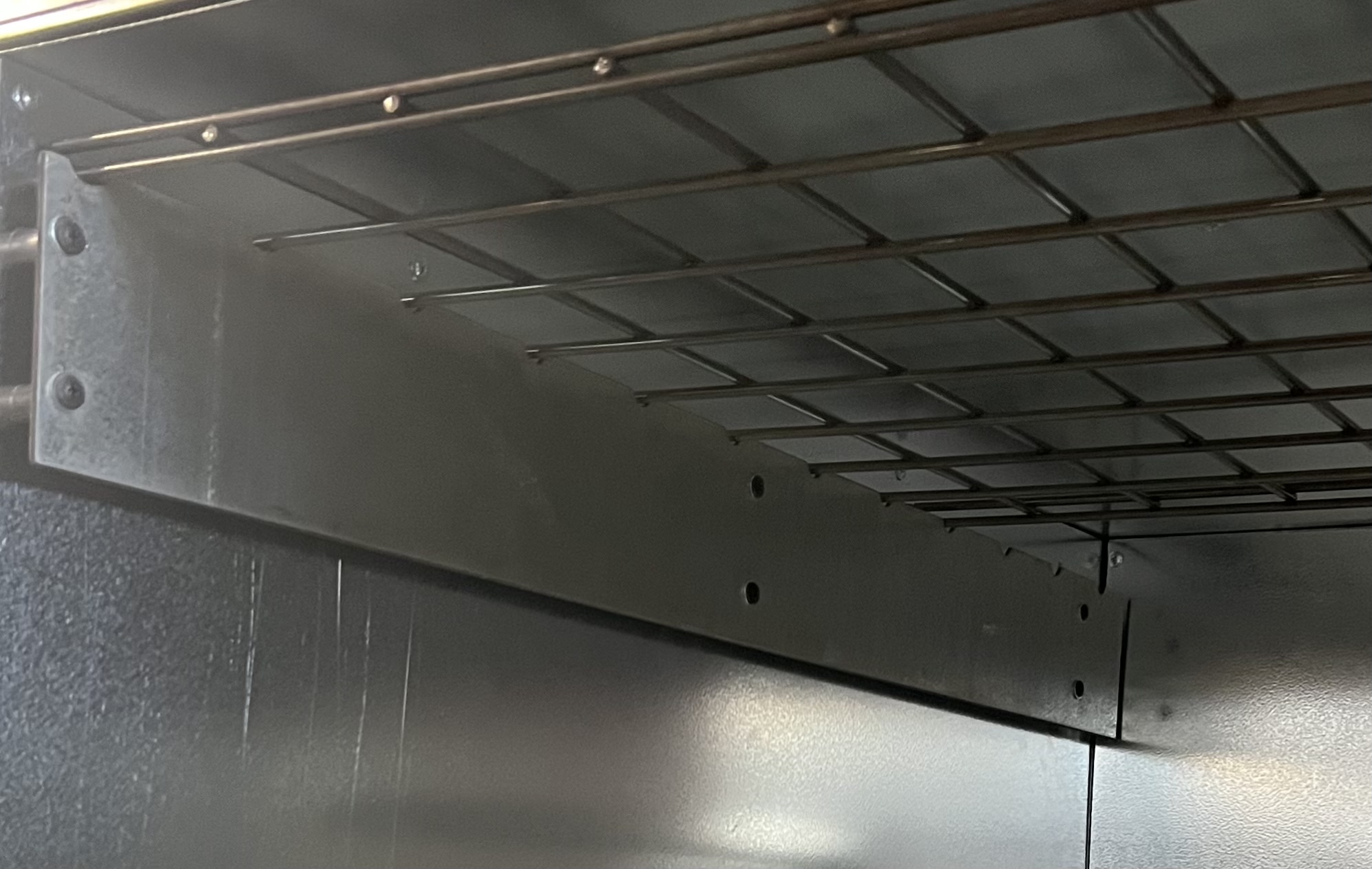

The Hanging Grid System is a modular hanging rack designed for use inside powder coating batch ovens and spray enclosures. It suspends parts from a grid of hanging points, ensuring all surfaces are exposed to even airflow and powder spray for a consistent, high-quality finish.

The Hanging Grid System is designed to integrate with Creative Coating Solutions batch ovens and powder spray enclosures. It is configured to fit standard interior dimensions and can be adapted for use in both electric and gas-fired powder coat curing ovens.

The grid system accommodates a wide range of parts including automotive components, fabricated steel parts, aluminum extrusions, wheels, frames, and brackets. Parts are suspended using hooks and racks, allowing full coating coverage on all sides without contact points that could cause bare spots.

Suspending parts on a hanging grid ensures 360-degree access for the powder spray gun and uniform airflow during curing. This eliminates rack marks, ensures even powder deposition, and reduces the need for touch-up or re-coating caused by part-to-surface contact during processing.

Yes. The modular design of the Hanging Grid System allows hooks, rails, and grid positions to be adjusted for different part geometries and batch sizes. This flexibility makes it suitable for shops that coat a diverse range of components with varying shapes and weights.

The Hanging Grid System is available at Creative Coating Solutions at creativecoatingsolutions.com. Contact the sales team for compatibility details with your oven model and for guidance on hooks, racks, and accessories to complete your setup.

Creative Coating Solutions provides expert after-sale support for all racking and grid products. If you need help with installation, hook selection, or load capacity questions, the technical support team is available to ensure your grid system performs as expected.
