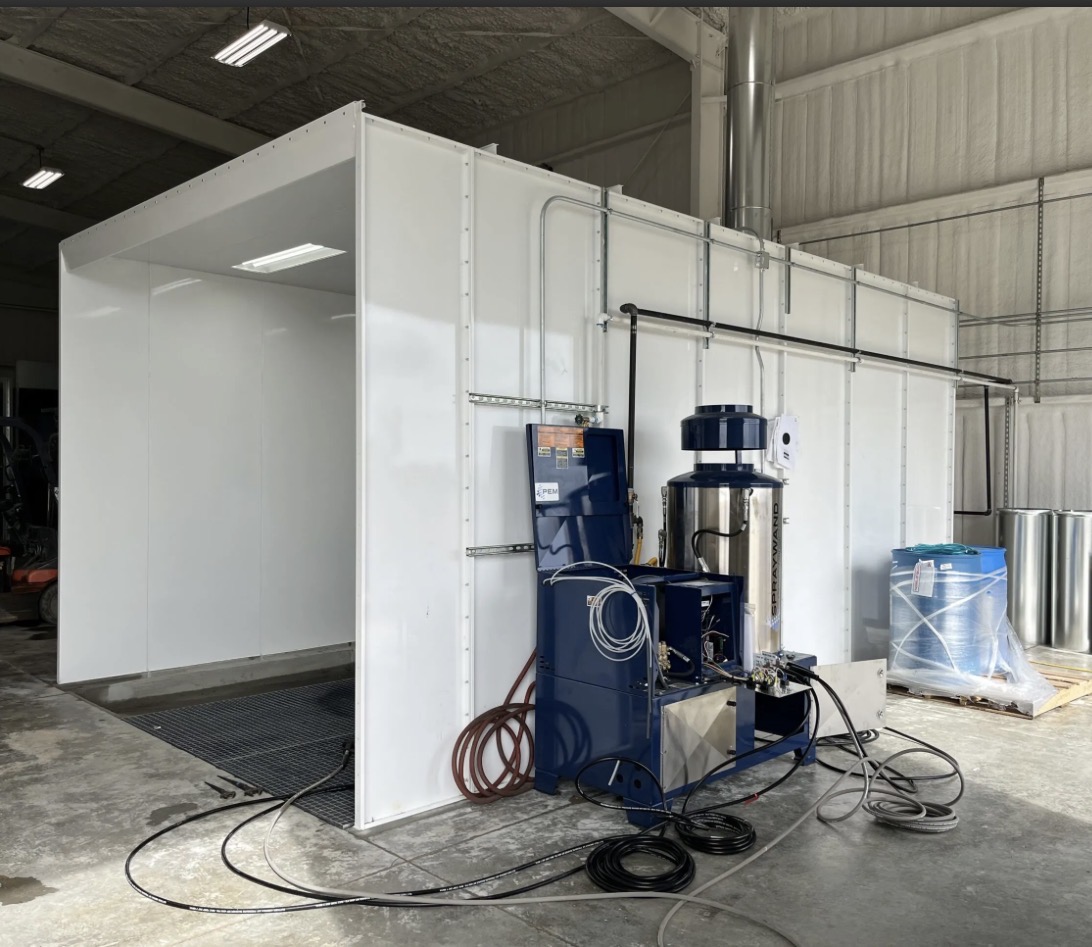

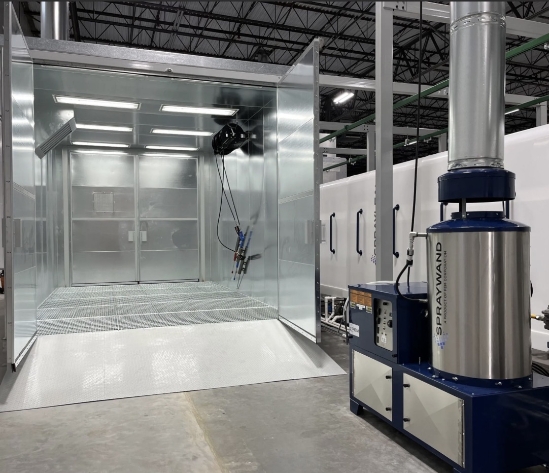

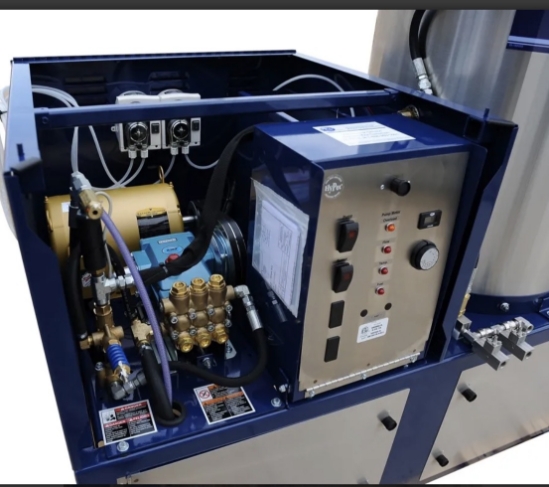

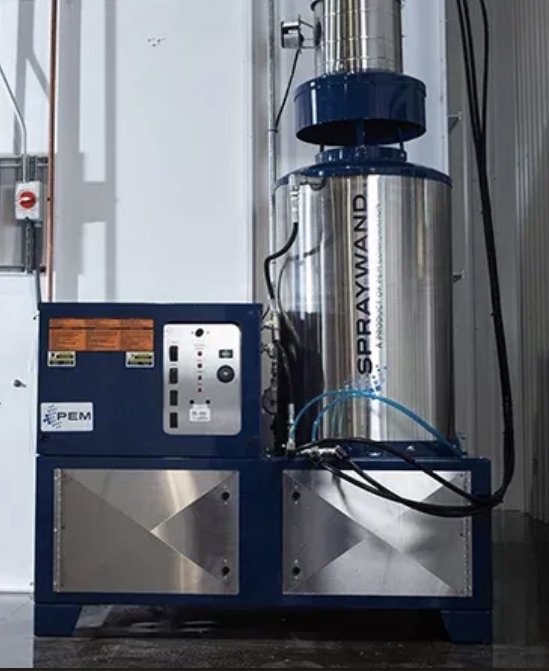

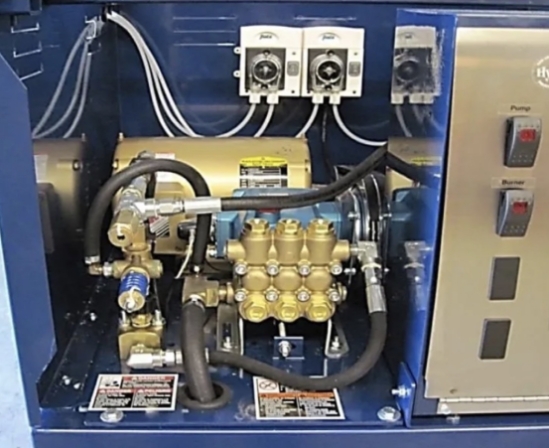

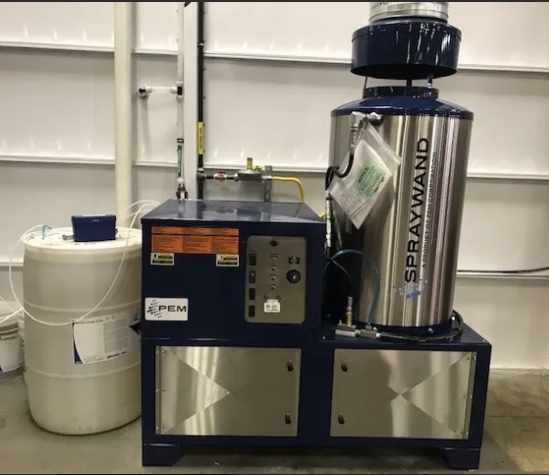

P-300 Pretreatment Application System
The SprayWand brand is designed for any OEM and job shop that has an ongoing need for metal cleaning and metal pretreatment. It produces the same superior results of high end, multi-stage pretreatment systems at a fraction of the cost. You will lower you production costs and drastically improve the quality through better paint adhesion and corrosion protection. The P-300 is the best performing system in the industry that can deliver your pretreatment chemicals as required injected downstream. It can also apply chemicals at either heated or ambient temperatures and high pressure for maximum cleaning.
The freedom of movement offered by the SprayWand enables the operator to easily and efficiently prepare large and complex parts and assemblies for final metal finishing or coating.
Quick Startup and direct application of chemicals, with minimal waste, makes the system a cost effective way to professionally pretreat medium and small quantities of parts.
Specifications:
- Horsepower - 7.5
- Electrical - 208/230v single phase, 208-230/460v Three Phase
- Connection - 4 wire through junction box
- GPM - 5
- Pressure (PSI) - Pretreatment 1500 PSI / Rinse 1500 PSI
- Burner Input - 550,000 BTU
- Gas Connection - 1" NPT
- Fuel Consumption - Natural Gas 7.9" WC or 11" WC LP Gas
- Stack Size - 11"
- Water Connection - Standard Garden Hose, Female Swivel
- Nozzles - 1-15085 x 1/4" NPT
- Dimensions - 56"L x 28"W x 64"H, 1050 LBS (Ship Weight)
- Weight - Dry 900 lbs, Shipping 1100 lbs.
Please Print, Fill Out and Return The Specification Sheet Below For A Formal Quote
*** Accessory and Add -On Options ***
PEM offers a variety of SprayWand options to help operators easily and efficiently prepare large and complex parts and assemblies for final metal finishing.

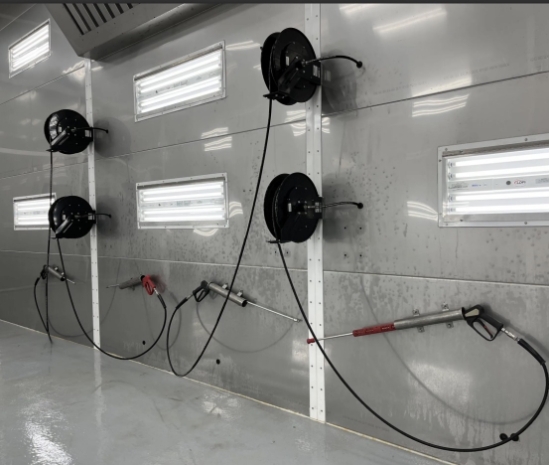

86020 OPTIONAL: HOSE REELS - 50' Hose max, SS Fittings
85063 OPTIONAL: JUMPER HOSE, 15' SS 3/8" Hose & Fittings, Injector to Hose Reel
86003 OPTIONAL: GUN HOLDERS, SS

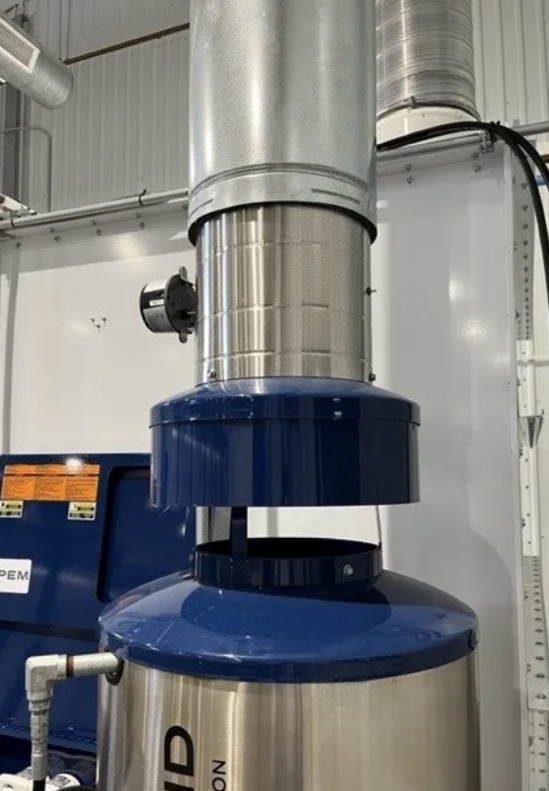

86017 OPTIONAL: BACKDRAFT, AUTO DAMPER, 24V
93213 OPTIONAL: P-300 SprayWand with 1/2" STAINLESS STEEL 2 STAGE COIL
