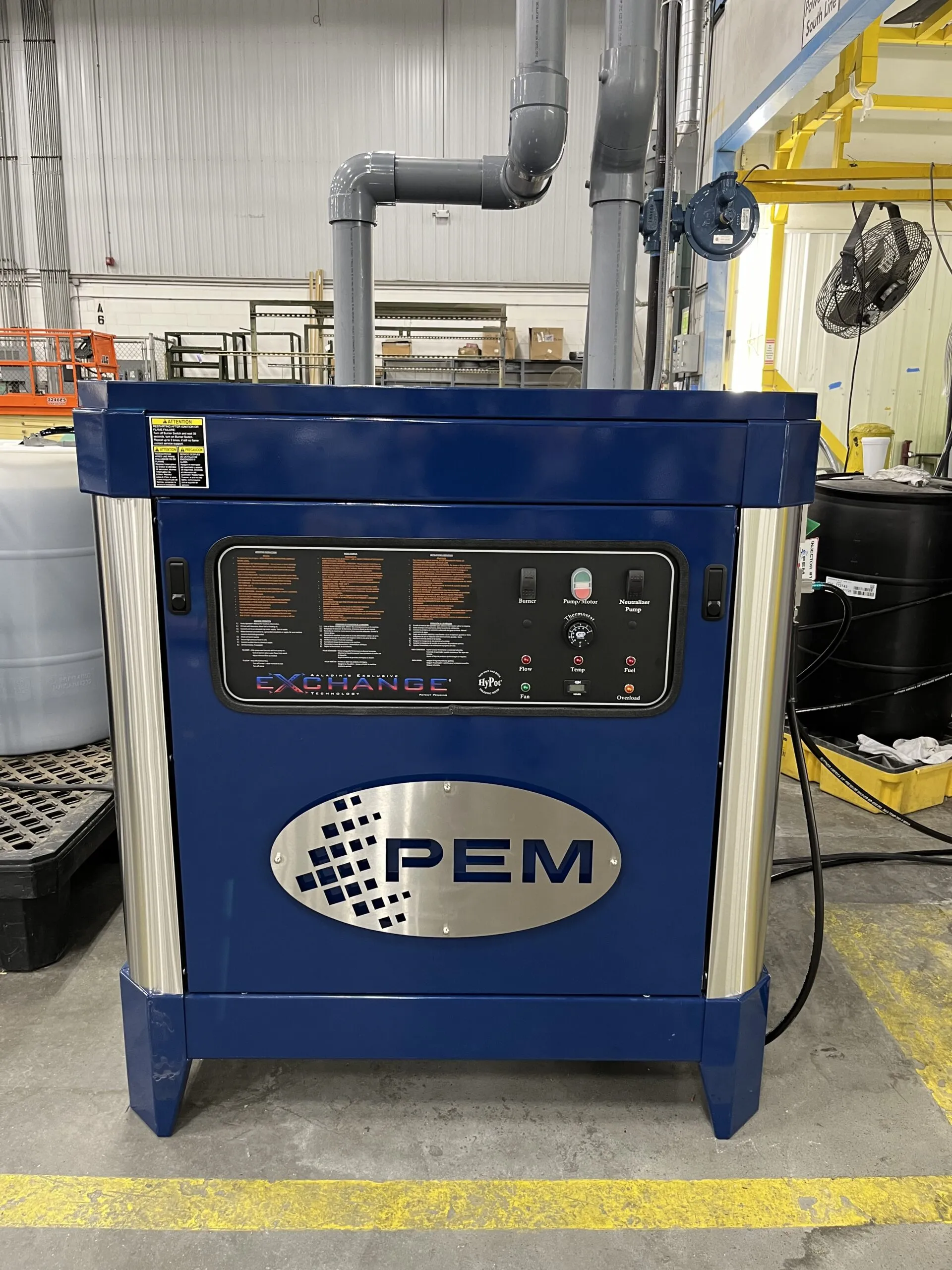

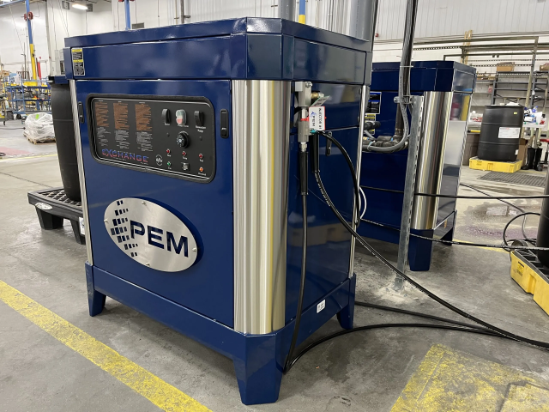

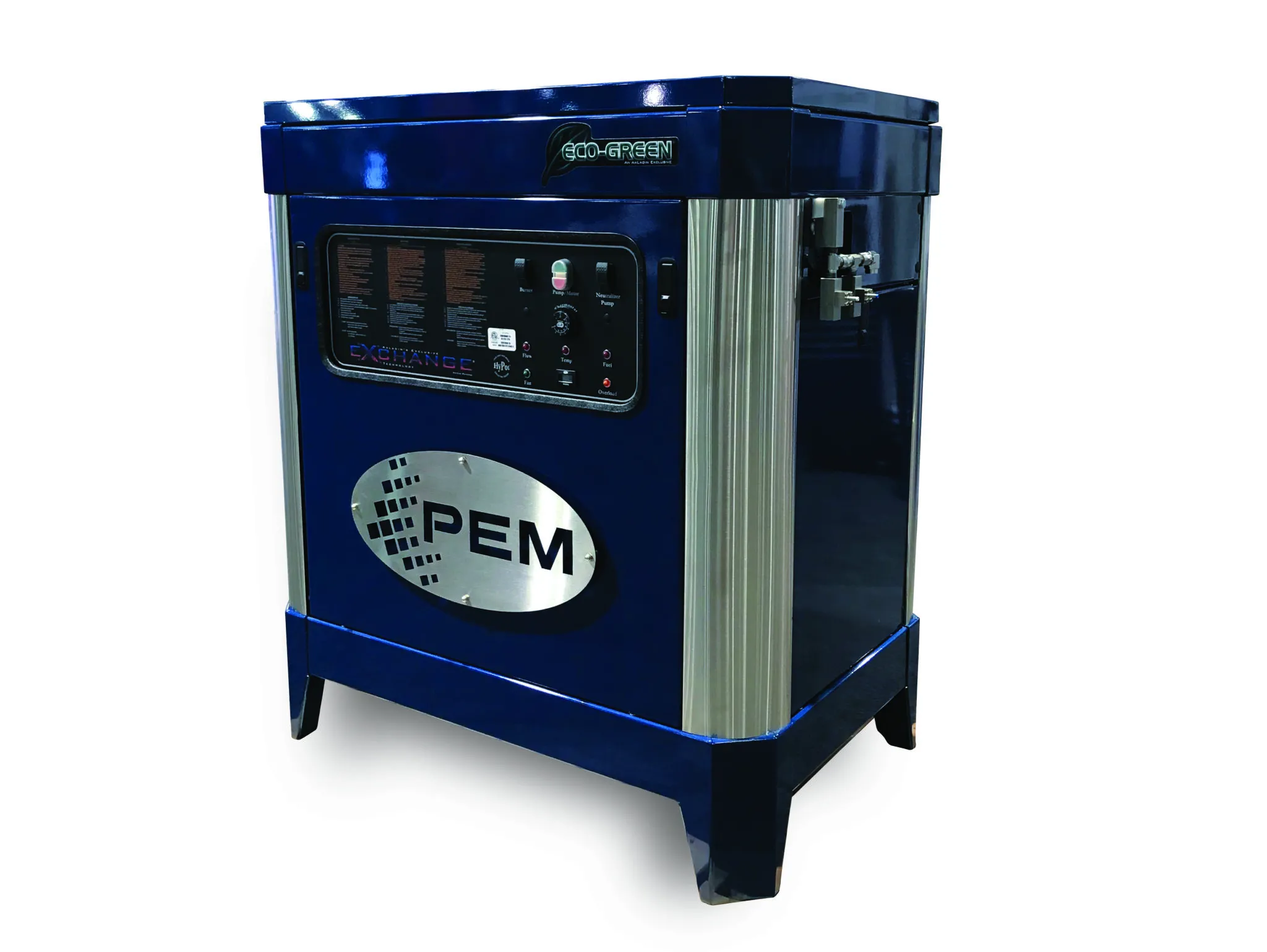

P-450 Manual Pretreatment Application System
The SprayWand technology is designed for any OEM, fabricator of job shop that has a need for efficient metal cleaning and pretreatment process such as application or degreasers, alkalines, phosphates, zirconium's and seals
The new P-450 SprayWand offers the same SprayWand proven process with additional operational savings to increase the payback on your investment.

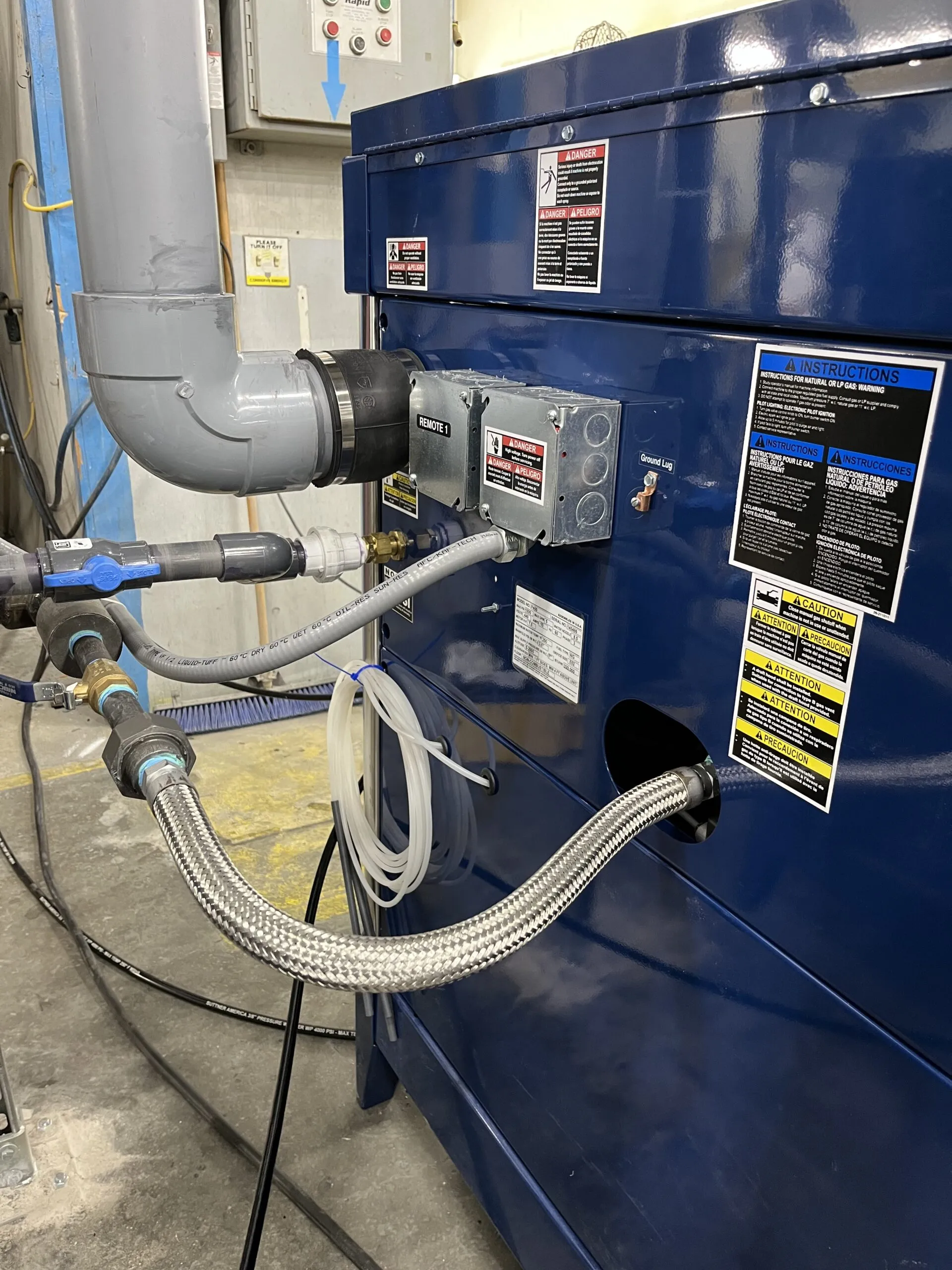

The P-450 SprayWand includes a radiator to take heat from the exhaust and preheat the water prior to entering the main coil. This allows for less BTU consumption and cooler exhaust. The exhaust feature includes a built in draft damper a fan assist for the 4" CPVC duct.
Advantages:
- New Energy Savings Technology
- 34% Less Fuel Consumption
- 4" PVC Exhaust Duct - Lower Energy Costs
- Reduced Emissions
- Exhaust Assist and Damper Built In
- ETL and CSA Listed

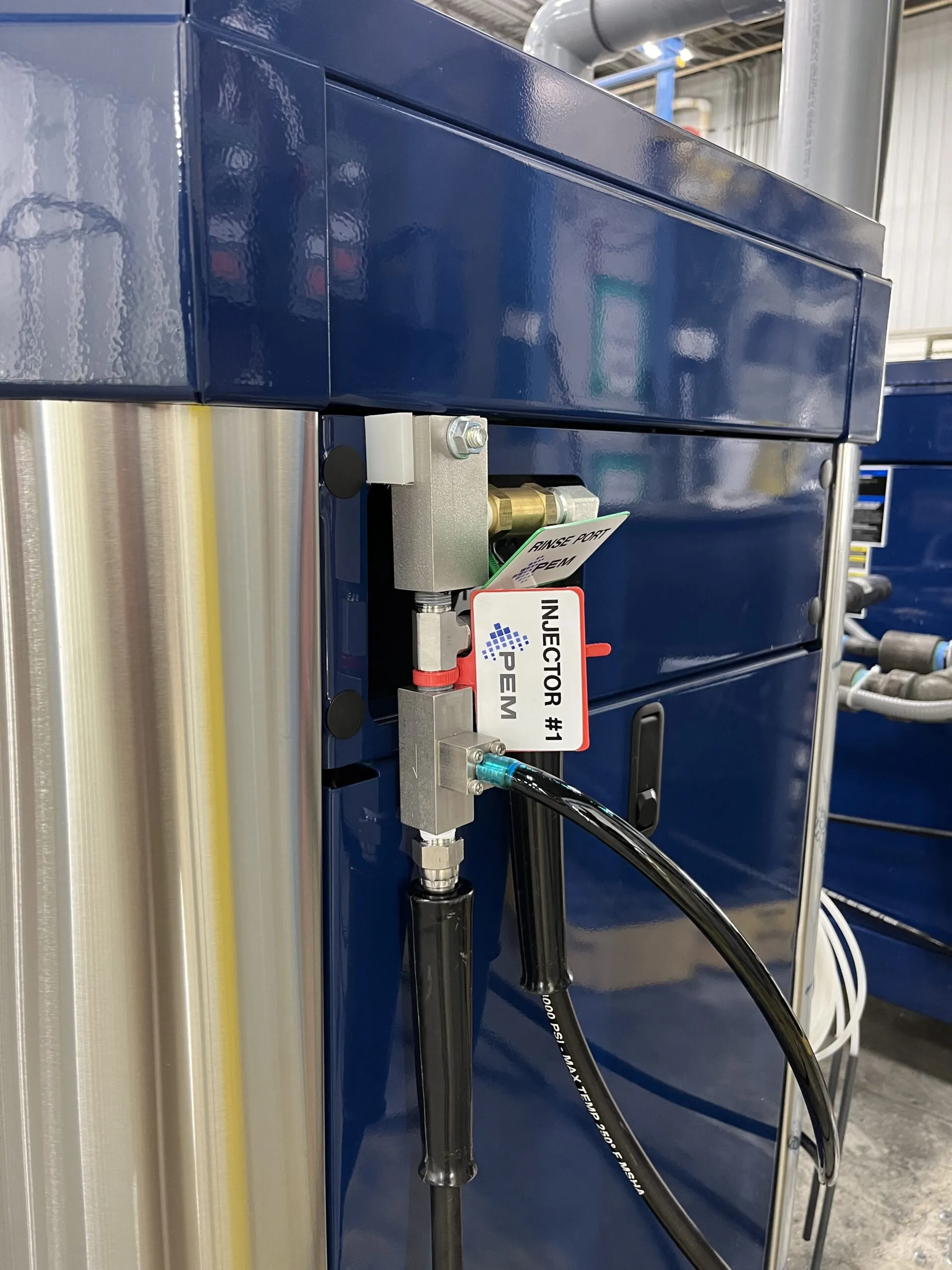

- SS Downstream Injection Systems
- Pump and Components Not Exposed To Harsh Chemicals
- Accurate Chemical Concentrations At Higher Pressures

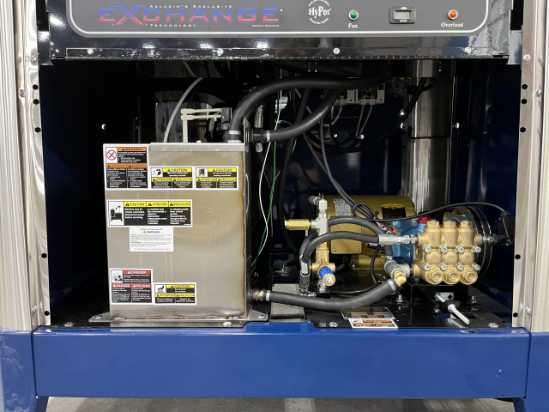

- NEMA Motors and CST Pumps
- Quality Components
- Beta Pumps For pH Adjust and Coil Conditioner Options
- Easy Installation
Specifications:
- Horsepower - 7.5
- Electrical - 208/230v Single Phase, 208-230/460v Three Phase
- Connection - 4 Wire Junction Box
- GPM - 5
- Pressure (PSI) - Pretreatment 1500 PSI / Rinse 1500 PSI
- Burner Input - 320,000 BTU
- Gas Connection - 3/4" NPT
- Fuel Consumption - Natural Gas 7-9" WC or 11" WC LP Gas
- Ducting - 4" or 5" CPVC
- Water Connection - Standard Garden Hose , Female Swivel
- Dimensions - 48"L x 34"W x 53" h
Please Print, Fill Out and Return The Specification Sheet Below For A Formal Quote
*** Accessory and Add -On Options ***
PEM offers a variety of SprayWand options to help operators easily and efficiently prepare large and complex parts and assemblies for final metal finishing.

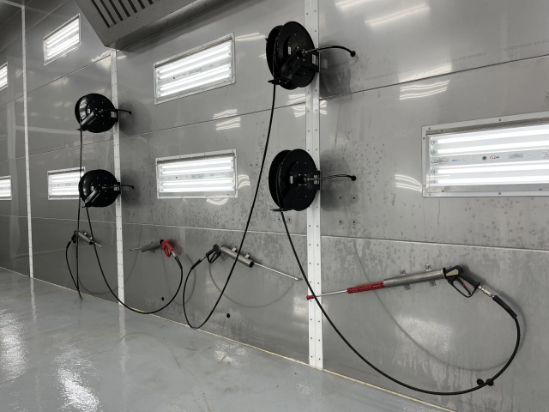

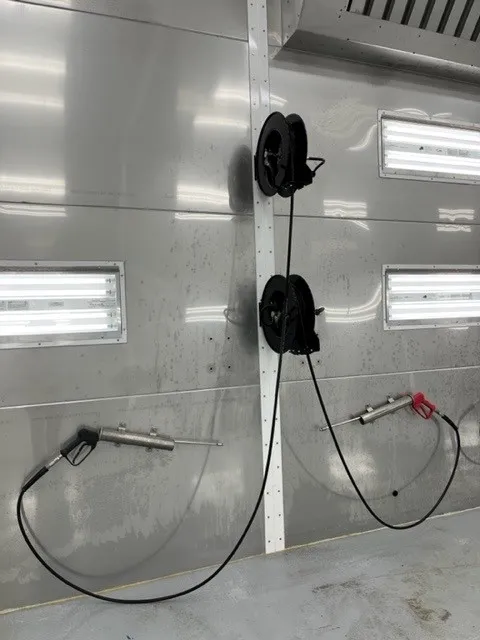

86020 OPTIONAL: HOSE REELS - 50' Hose max, SS Fittings
85063 OPTIONAL: JUMPER HOSE, 15' SS 3/8" Hose & Fittings, Injector to Hose Reel

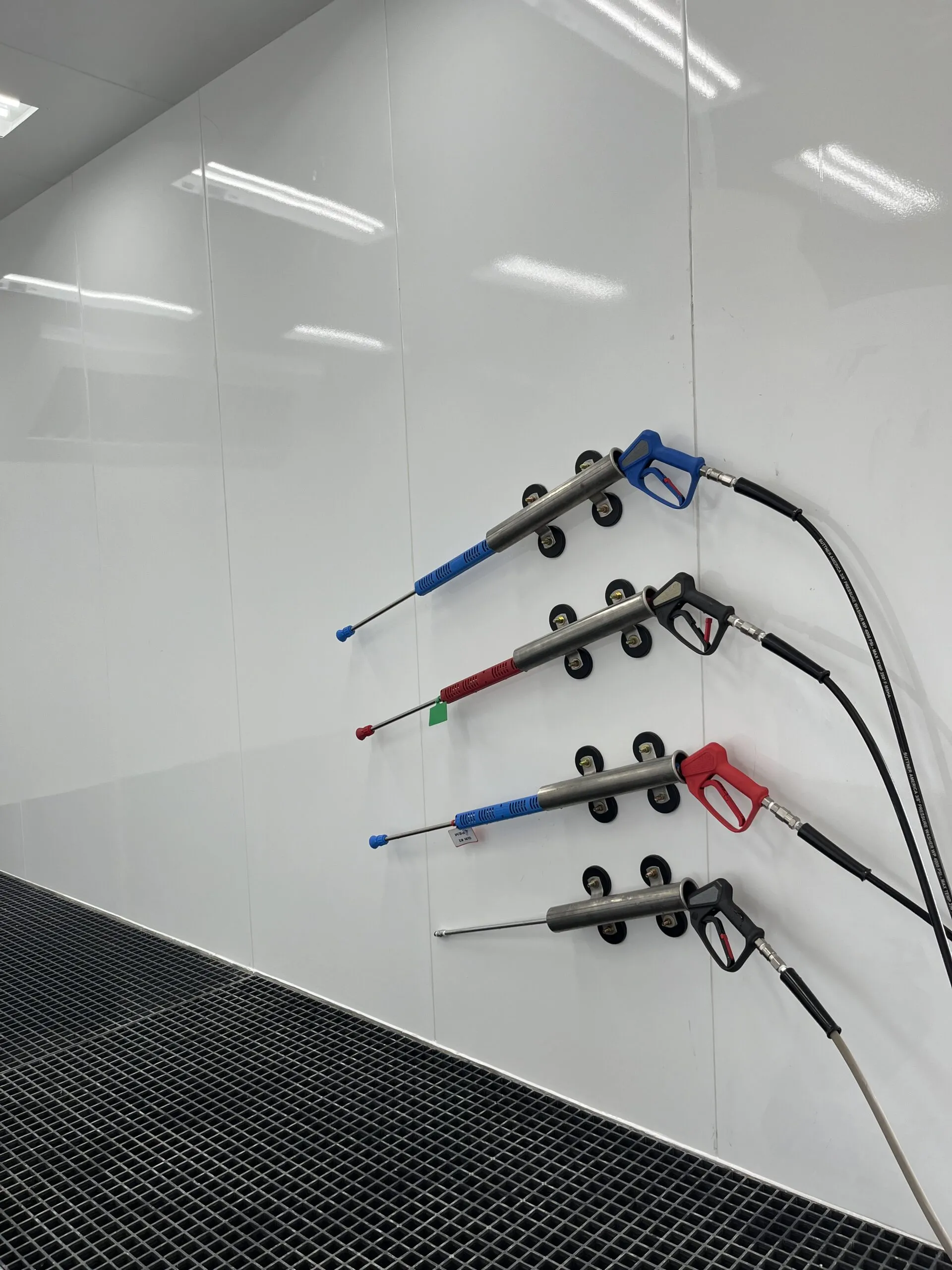

86003 OPTIONAL: GUN HOLDERS, SS
86017 OPTIONAL: BACKDRAFT, AUTO DAMPER, 24V
93213 OPTIONAL: P-300 SprayWand with 1/2" STAINLESS STEEL 2 STAGE COIL
