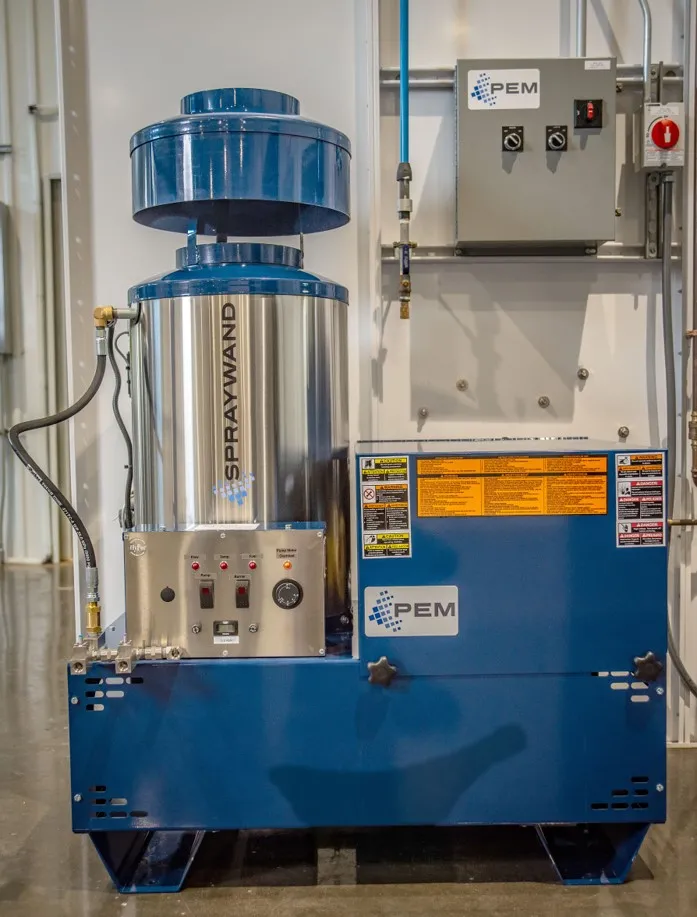

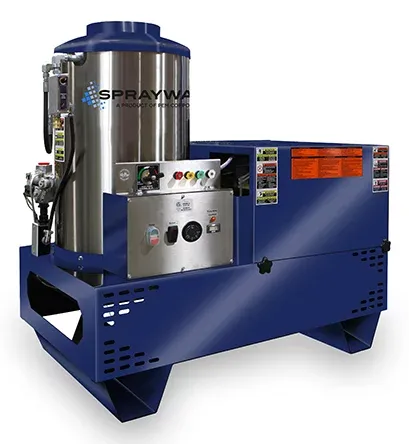

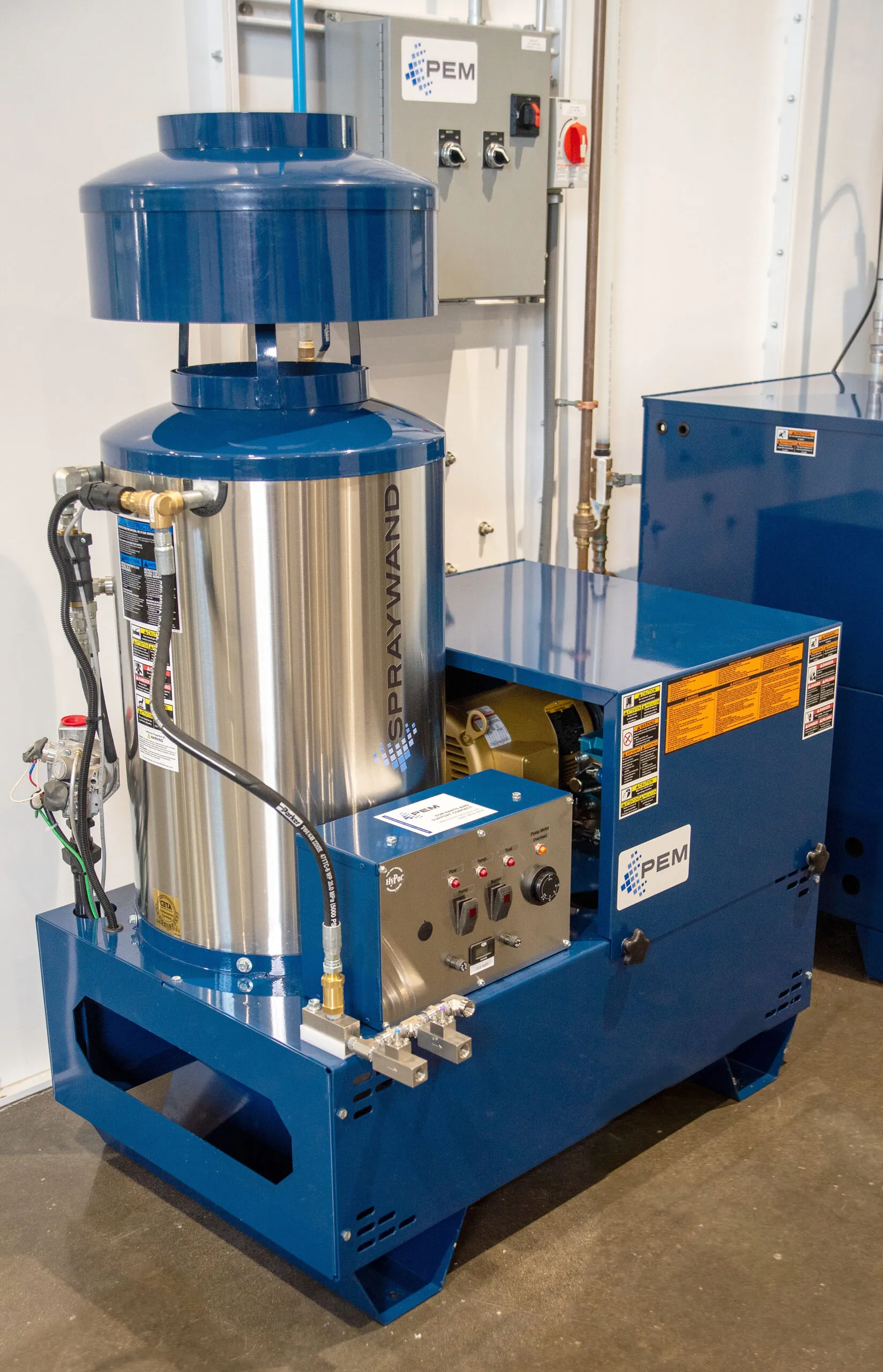

P-500 Manual Pretreatment Application System
The P-500 is manufactured with the same quality components and featured of the P-300. It offers you the same lower production expenses and improved product quality. Its just smaller. The P-500 delivers your pretreatment chemicals as required injection downstream with heated temperatures at high pressure for maximum cleaning. Creative Coating Solutions also offers solutions to elevate your system and store your hoses to prevent damage to your equipment.
Advantages:

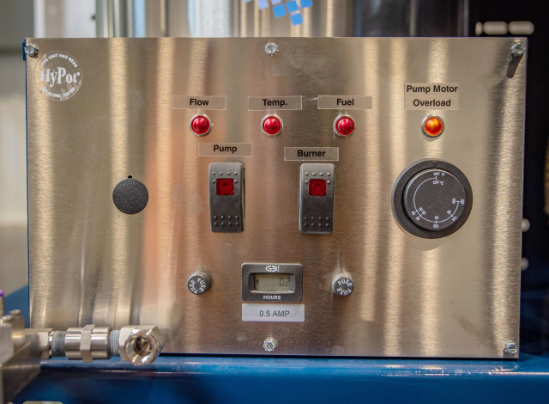

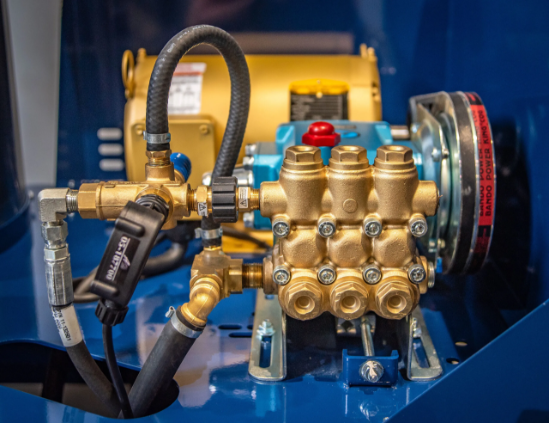

ETL and CSA ListedFixed Orifice InjectorsAdjustable Wash TemperaturesRedundant Safety FeaturesDownstream Injection Provides Better, Faster Cleaning - Pump Components Are Not Exposed To ChemicalsHigh Efficiency Two-Stage Coil Maximizes Heat TransferNaturally Aspirated Burner For Efficient CombustionEasy-To-Read Diagnostic PanelVersatile Design Offers Easy Setup For Any Pretreatment NeedNEMA Motors and CAT PumpsElectronic Ignition
Specifications:
- Horsepower - 7.5
- Electrical - 208v/230v Single Phase, 208-230/46v 3 Phase

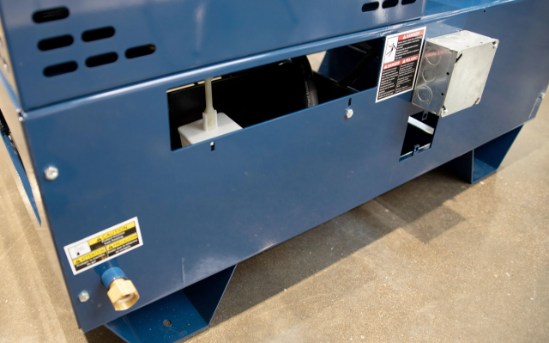

- Connection - 4 Wire Through Junction Box
- GPM- 5
- Pressure -Pretreatment 1500 PSI, Rinse 1500 PSI
- Burner Imput - 415000 BTU
- Gas Connection- 1" NPT
- Fuel Consumption - Natural Gas 7"-9" WC r 11" WC LP Gas
- Stack Size - 10"
- Water Connection - Standard Garden Hose, Female Swivel
- Nozzles - 15085 /4" NPT
- Dimensions45"L x 26"W x 48"H
- Weight - Dry 500lbs, Shopping 675lbs
Options:

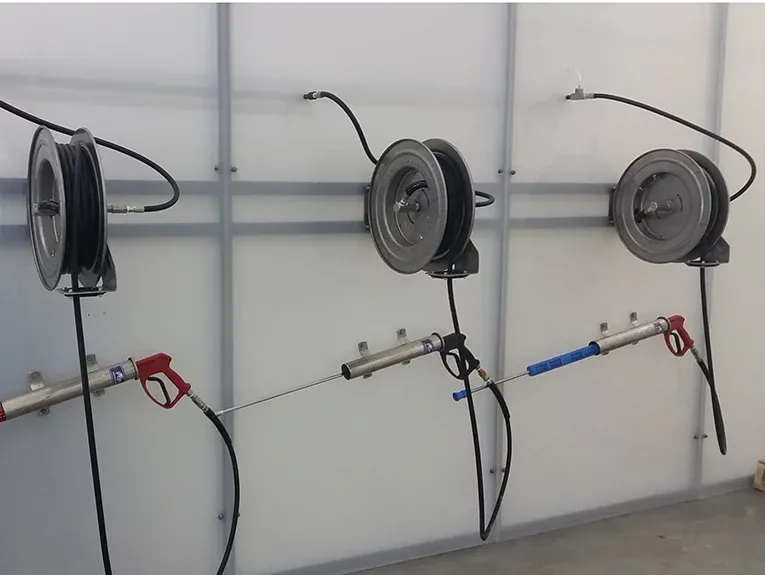

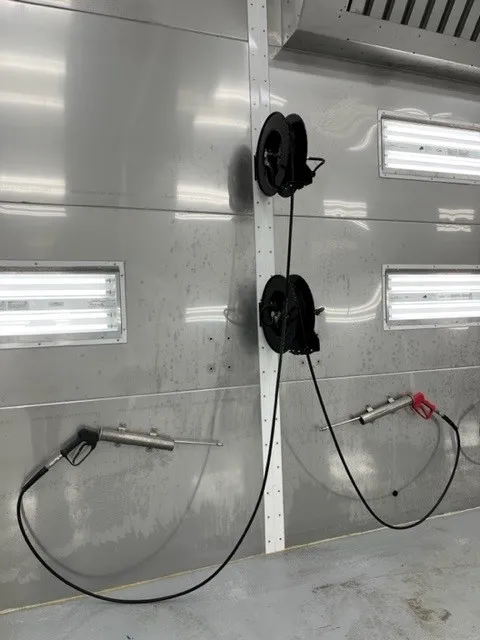

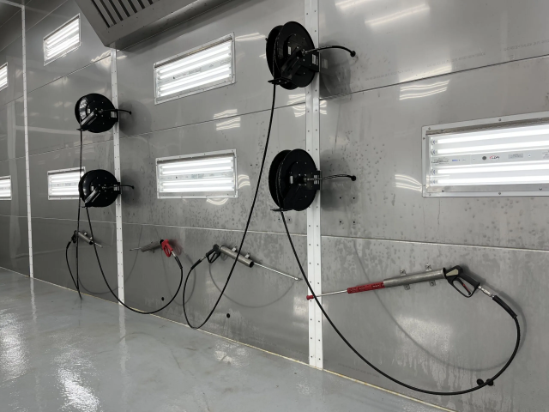

OPTIONAL: HOSE REELS - 50' Hose max, SS Fittings
OPTIONAL: JUMPER HOSE, 15' SS 3/8" Hose & Fittings, Injector to Hose Reel
OPTIONAL: GUN HOLDERS, SS
