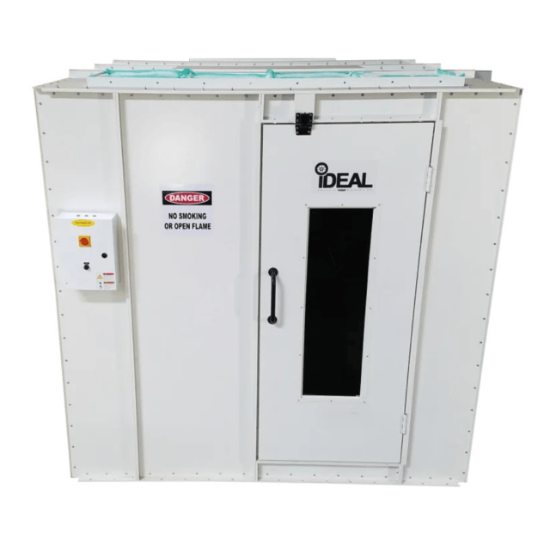

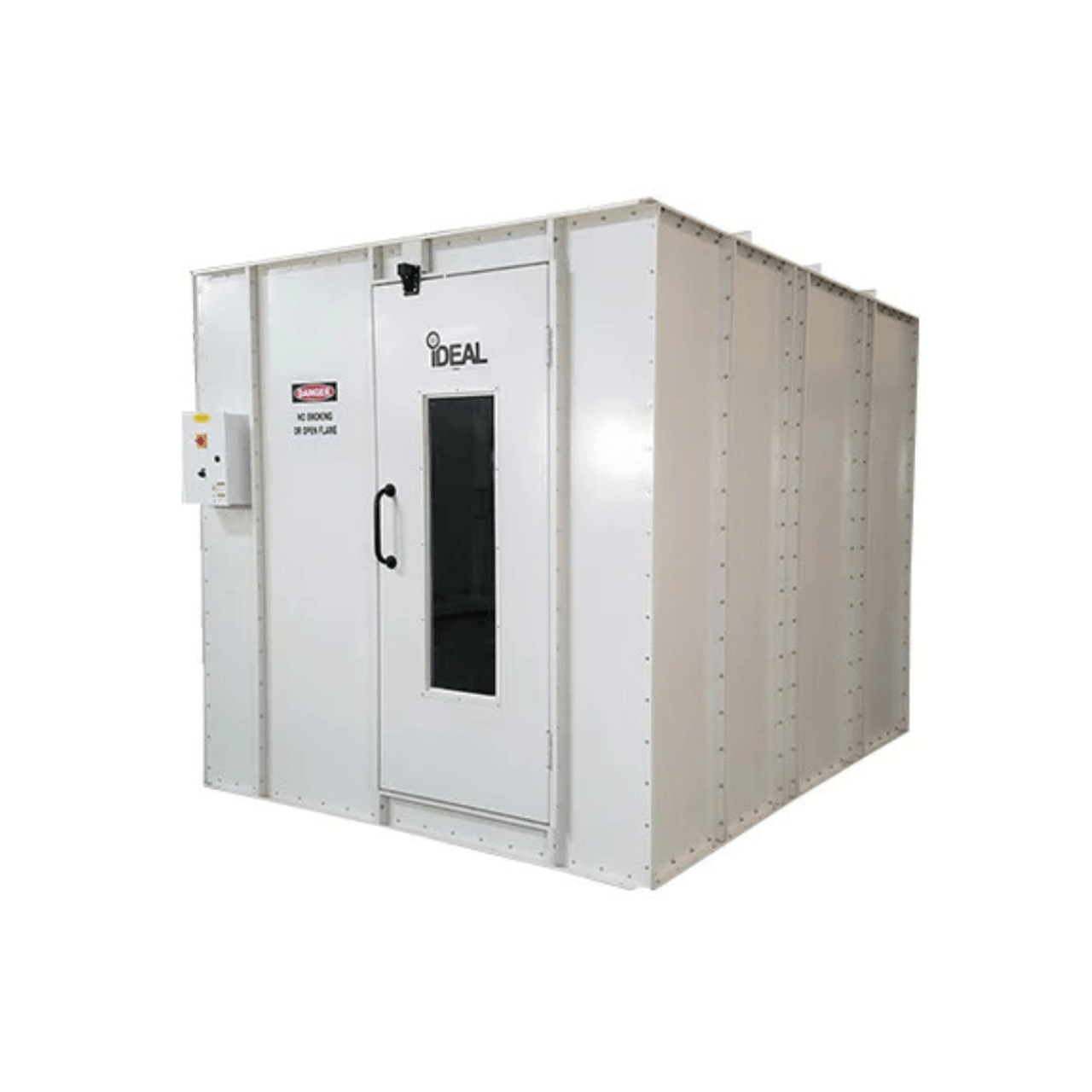

Industrial Paint Mixing Room

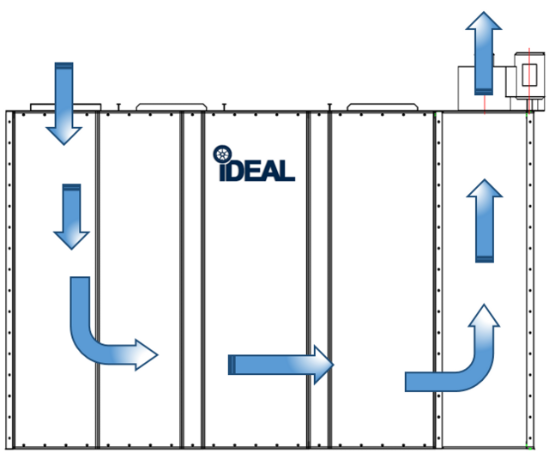

This paint mixing room is designed to provide superior lighting with a clean and controlled ventilated work area for safe paint mixing applications. Air flows through the ceiling intake filters towards one end of the room and downwards into the filtered exhaust plenum and is discharged upwards through the filtered exhaust fan and ducting. The unique design allows for different installation configurations as the personnel door can be placed in either the front or side of the mixing room. The fan and plenum chamber are purposely located outside of the mixing room to provide for lower decibel levels while working inside. The included bright white powder coated panels finish, deluxe control panel, premium filters and high quality tube-axial exhaust fan complete the package for a premium, high quality paint mixing room all an a great value setting your facility aside from your competition.
Features:
- Always in stock, Typically ships within 48 hours

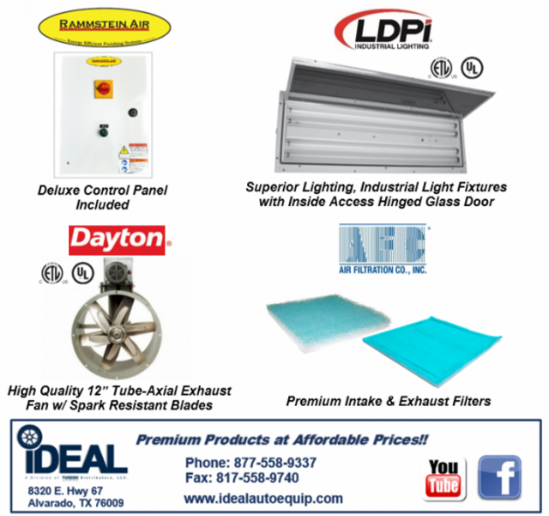

- Deluxe control panel included
- Durable bright white powder coated finish
- Optional door placement to the side or front of the room
- NEMA Rated 1/2 HP - 3 phase 230/460vac 60 Hz Motor
- Premium AFC intake and exhaust filters
- Superior lighting with 2ct LPDI Industrial Light Fixtures - UL & ETL CLS 1, Div. 2 (Group A,B,C & D)
- True daylight color with GE T8 48" florescent lamps, 32W - 2900 lumens, 5000K color temp
- All assembly hardware, Manometer and sealant included

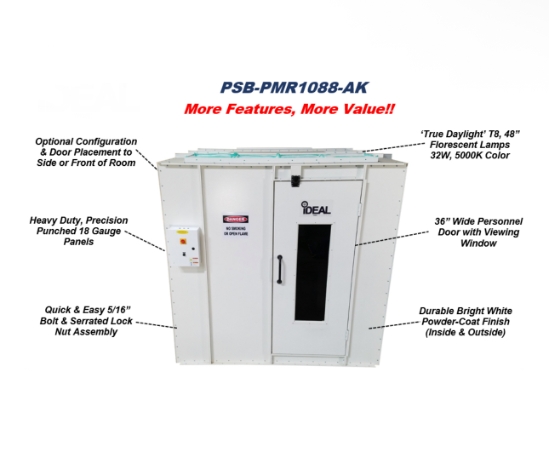

- Heavy duty precision punched 18 gauge panel construction
- 5/16" bold and serrated lock nut assembly
- Pre-hung personnel door with viewing window
- Meets and/or exceeds all applicable OSHA & NFPA 33 Standards and Regulations
- Easy to install/assemble, operate and maintain

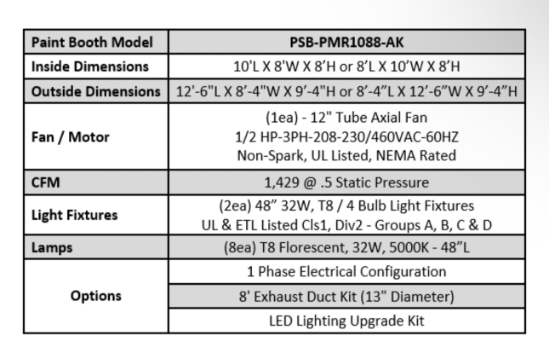

- Inside Dimensions: 10’L X 8’W X 8’H or 8’L X 10’W X 8’H
- Outside Dimensions: 12′-6″L X 8’-4″W X 9’-4″H or 8’-4”L X 12’-6”W X 9’-4”H
- UL listed Dayton 12" tube-axial exhaust fan w/ spark resistant fan blades
- Optimal air flow w/ CFM 1,429 @ .5 static pressure

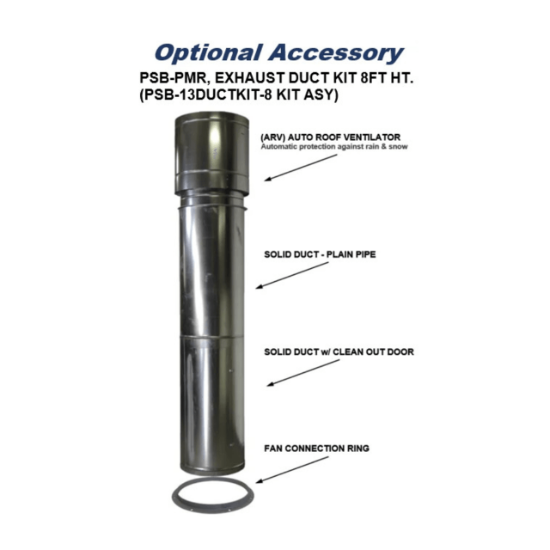

- Optional: 1PH electrical & PSB-13DUCTKIT-8 KIT ASY
