Semi / Side Down Draft Paint Spray Booth 48" Extension Panel Kit

Semi / Side Down Draft Paint Spray Booth 48" Extension Panel Kit

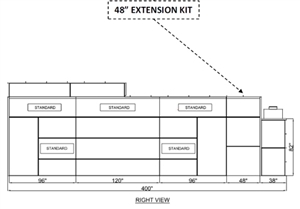

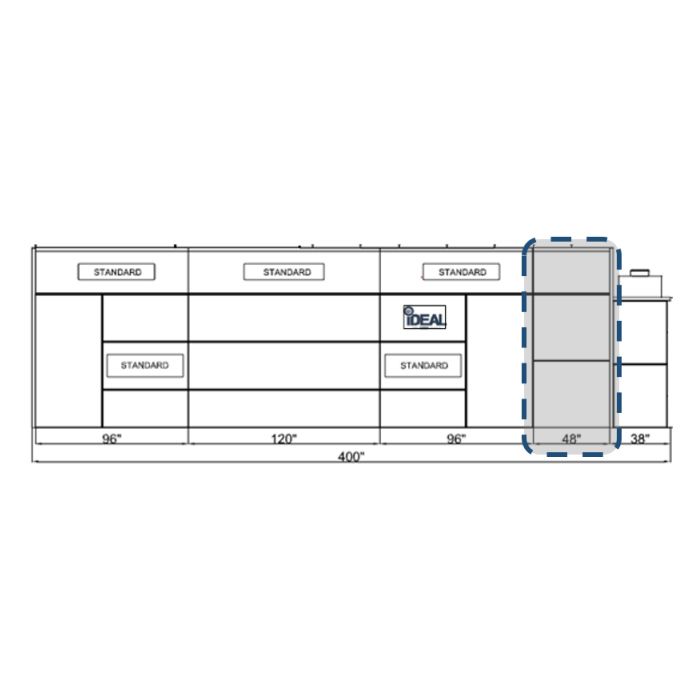

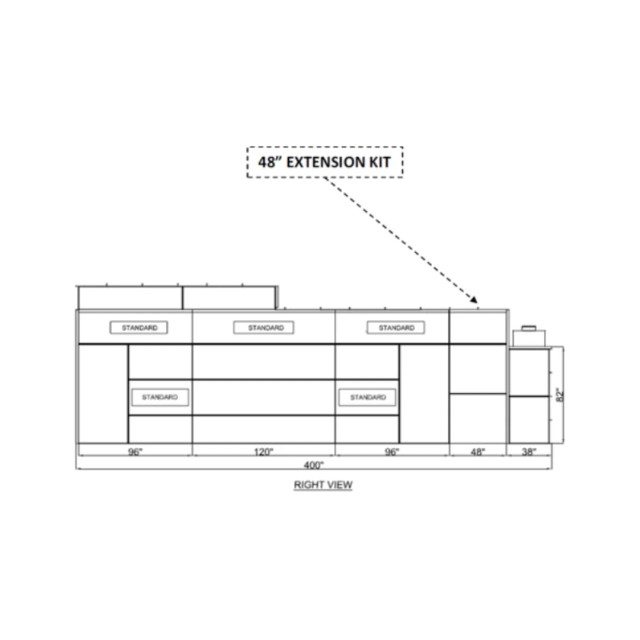

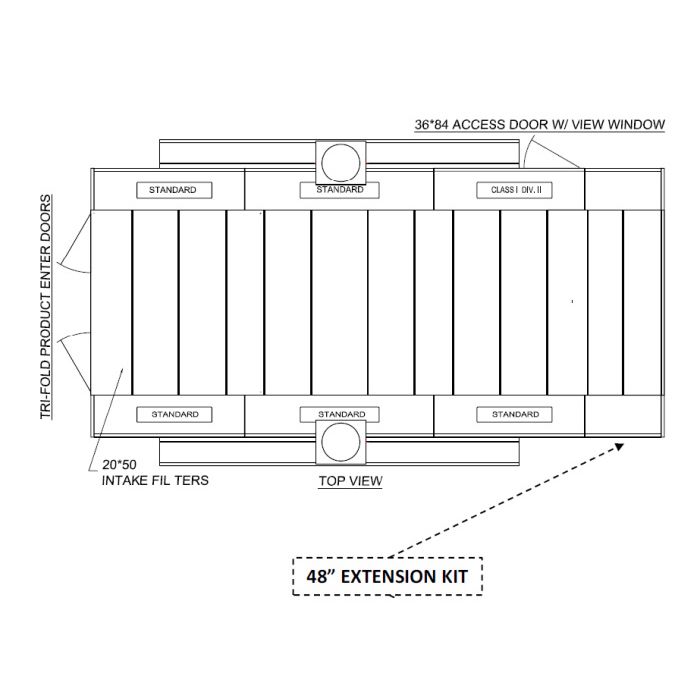

Our Side Down and Semi Down Draft Paint Booth 48"  Extension Panel Kit installs to the rear of the booth to increase booth length an additional 48". The solid extension is designed to be installed to the rear of the booth to increase the overall inside length to 3o'. The semi and side down draft extension kit includes all necessary assembly or installation hardware, There id not a provision for light installation on this extension.

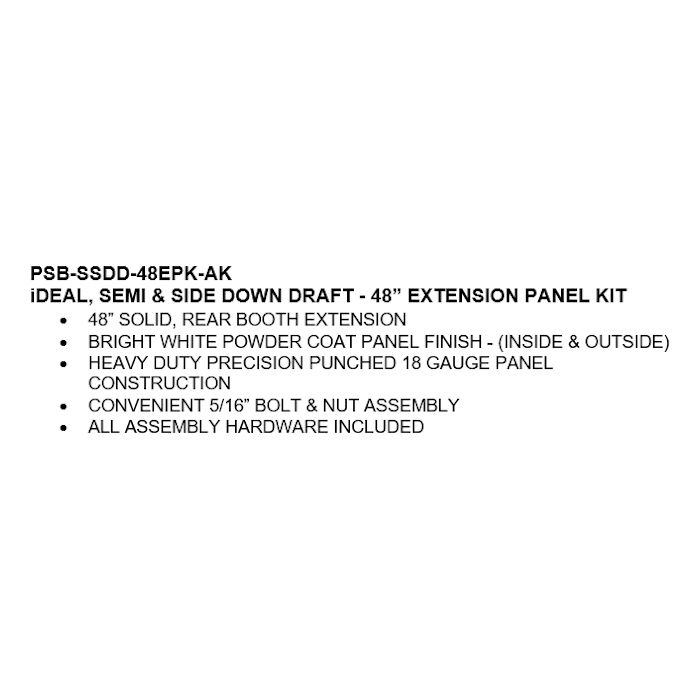

Features:

• 48" solid rear booth extension kit for PSB-SEMIDD and PSB-SDD models

• Extension panel kit increases overall inside length to 30'

• Bright white powder coated finish inside and outside

• Heavy duty precision punched 18 gauge panel construction

• Convenient 5/16 nut and bolt construction

• All assembly hardware included

• For use with PSB-SEMIDD26B Semi Down Draft Paint Spray Booth

• For use with PSB-SDD26B Side Down Draft Paint Spray Booth


Specifications:

• PSB-SDD26B with 48" solid extension panel kit
• Inside dimensions:30"L x 14'W x 9'3"H
• Outside Dimensions: 30'-4"L x 17'8'W x 9'5"H

____________

• PSB-SEMIDD26B with 48" solid extension panel kit
• Inside Dimensions: 30'L x 14'W x 9'3"H

• Outside Dimensions: 33'4"L x 14'4"W x 9'3"H

For Use With iDEAL Semi Downdraft Paint Spray Booth models:
PSB-SEMIDD26B-1PH
PSB-SEMIDD26B-3PH

For Use With iDEAL Side Downdraft Paint Spray Booth models:
PSB-SDD26B-1PH
PSB-SDD26B-3PH

Price shown is when purchased with a paint spray booth.
Please contact us for pricing when purchased separately.
