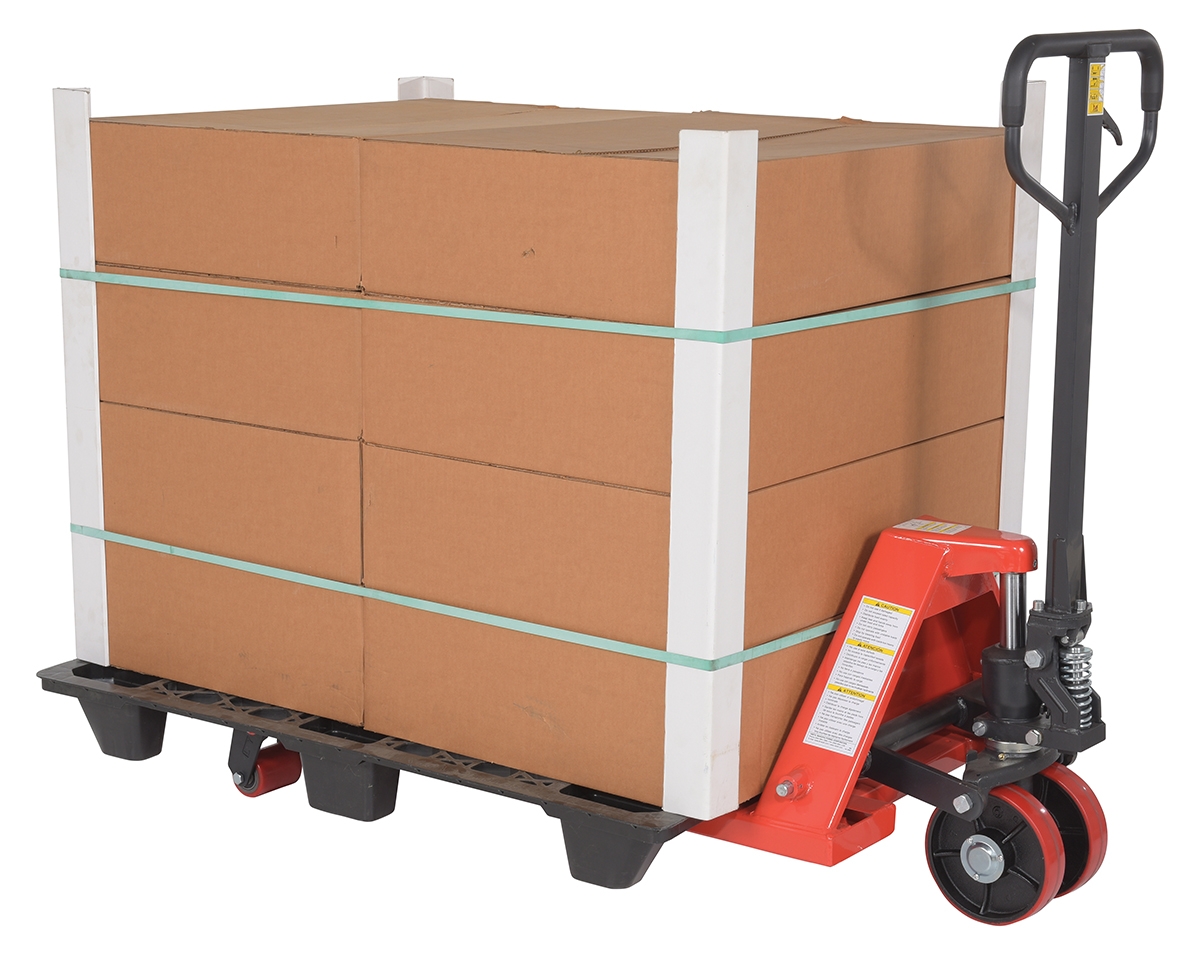

An economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two articulating steering wheels and two front load rollers. Ergonomic design requires only 75 pounds of pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Wheels are constructed of Poly-on-Steel unless otherwise noted. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. 7" wide forks are standard, except for model PM10-2245 which are 8-1/4" wide forks. Equipped with internally mounted solid steel adjustable push rods. Spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement. Chrome-plated hydraulic pump piston for long seal life.
Model PM10-2245 has Tow loops for simple towing of the truck. Pallet truck is rated for 5T capacity. A full capacity 5T load can be pulled/pushed manually for short distance, but for longer distance it needs to be towed.
Model PM5-2748-FP raises and lowers with a foot pump mechanism.
