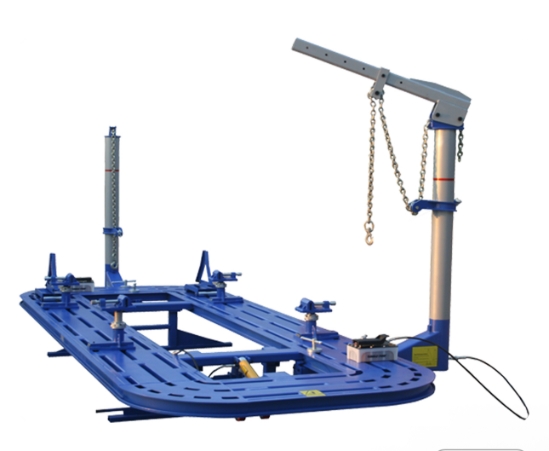

Steel Platform Frame Straightener

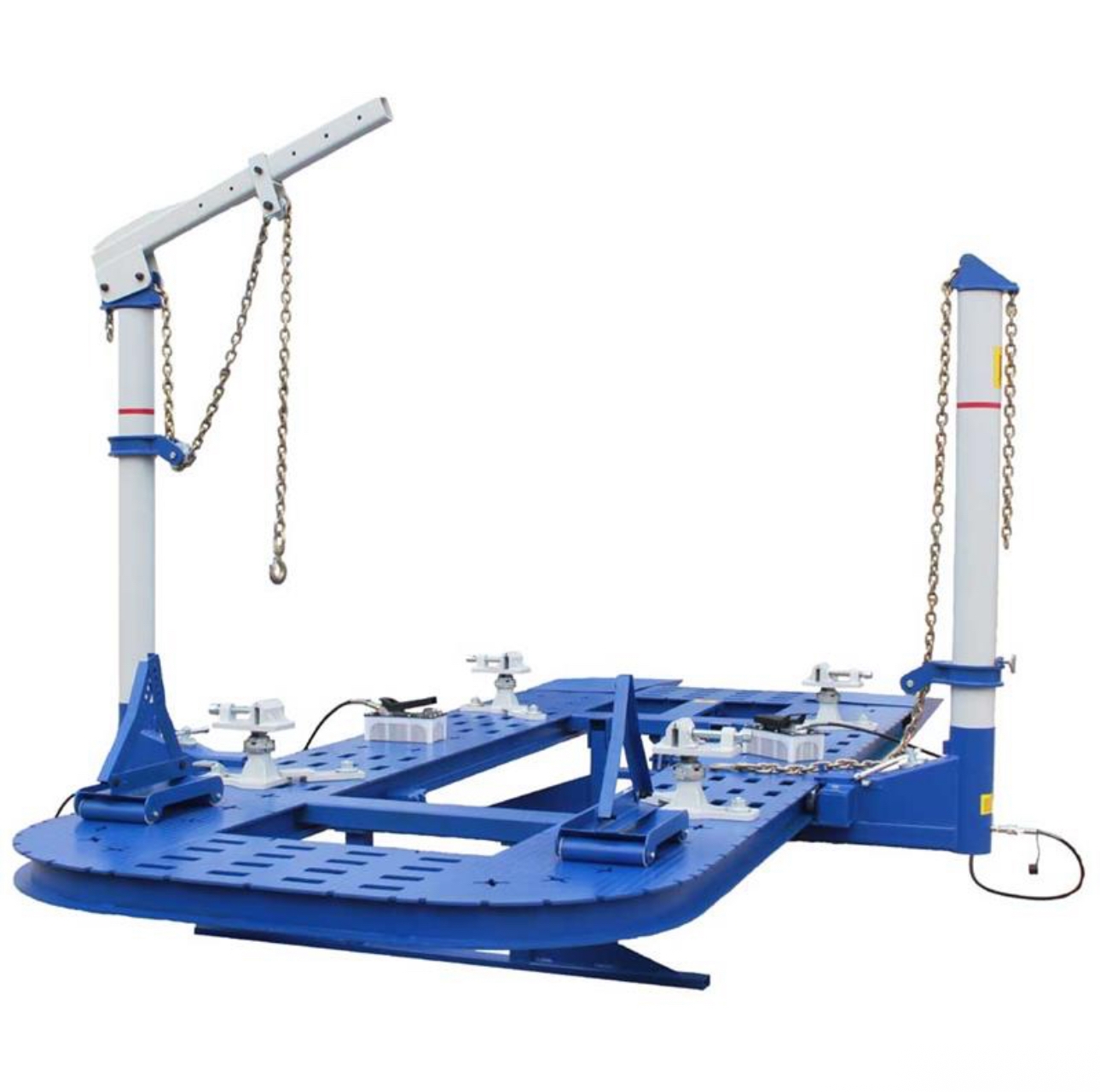

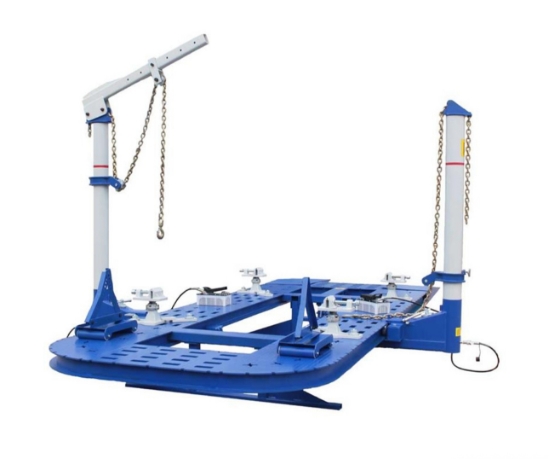

This 18' Tilt Deck / Steel Plate Platform Frame Rack Machine is a high quality, durable frame straightening machines designed to accommodate Full-Frame and Uni-Body type of vehicles with 7,700 lbs. lifting capacity. The twin 10-Ton Pulling Towers incorporate 'Clear-Floor' 360°pulling capability with multiple, Precision cut Tie Down Hole locations and A Universal Anchoring System with adjustable height pinch weld clamping assemblies. The FR-77 series also comes standard with Pull Chains & Hooks, Overhead Boom / Pull Tower Extension, Universal Wheel Stands & Vehicle Dollies.
THIS IS A SPECIAL ORDER ITEM - LEAD TIME IS 12 WEEKS

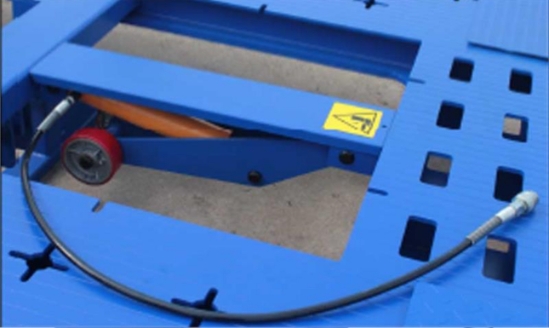

 | Hydraulic Tilt Deck Operation with 7,700 lbs. Capacity
Quick Disconnect Hydraulic Fitting and Hose Connections
|
 | Clear Floor
360 Degree Pulling Capability with Universal Anchoring System |
 | Clamp Assemblies
(4) Adjustable Height Pinch Weld Clamp Assemblies |
Features:

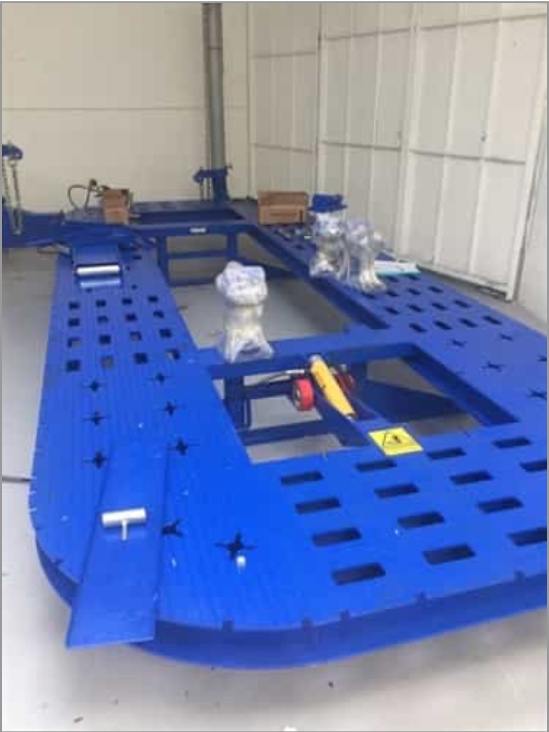

- Durable heavy duty plate steel deck construction
- Designed to service Full-Frame or Uni-Body type of vehicles
- Hydraulic tilt deck operations with 7,700 lbs. capacity
- Clear floor, 360 degree pulling capacity
- Universal anchoring system with adjustable height pinch weld assemblies
- Multi Tie-Down 'Precision Cut' hole locations

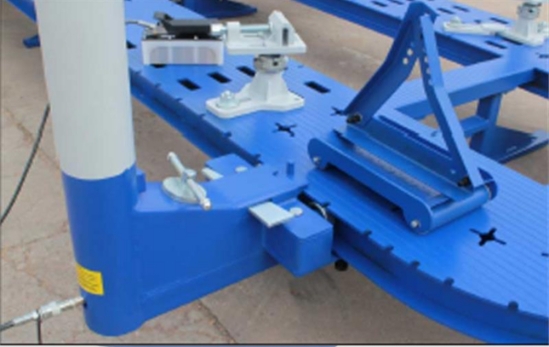

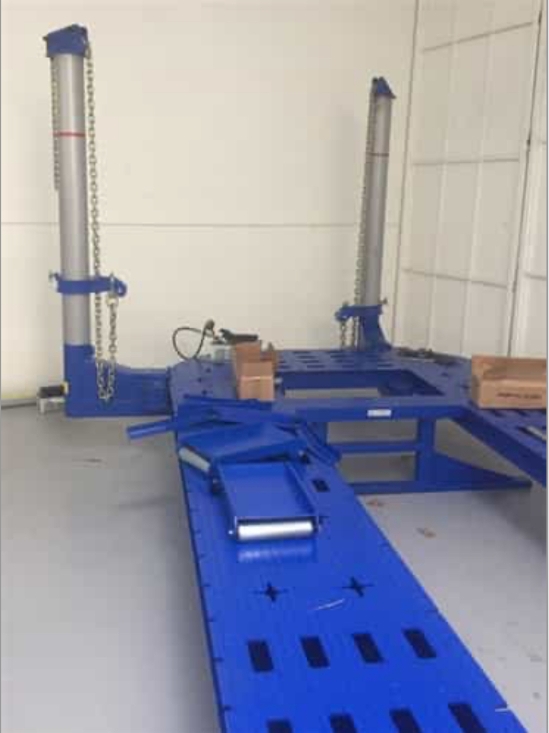

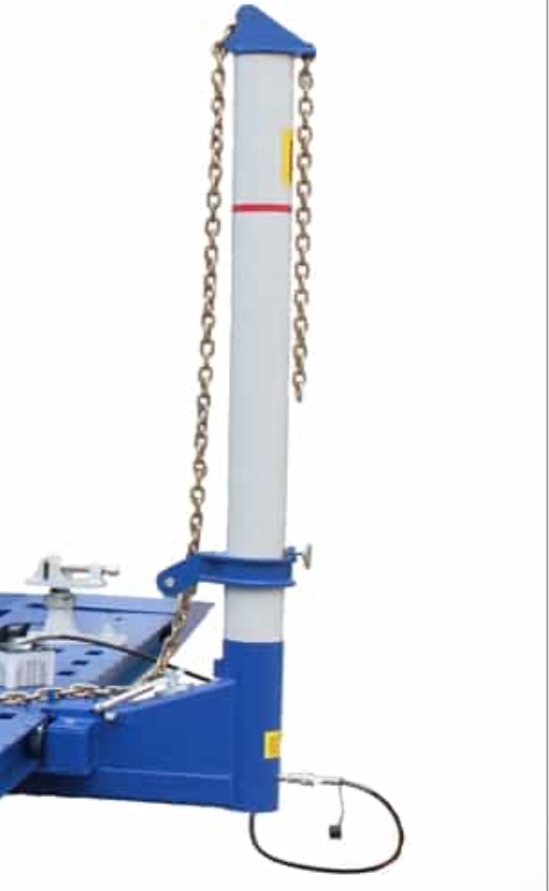

- (2ct)10 ton pulling towers with telescoping tower heads
- Adjustable tower collars

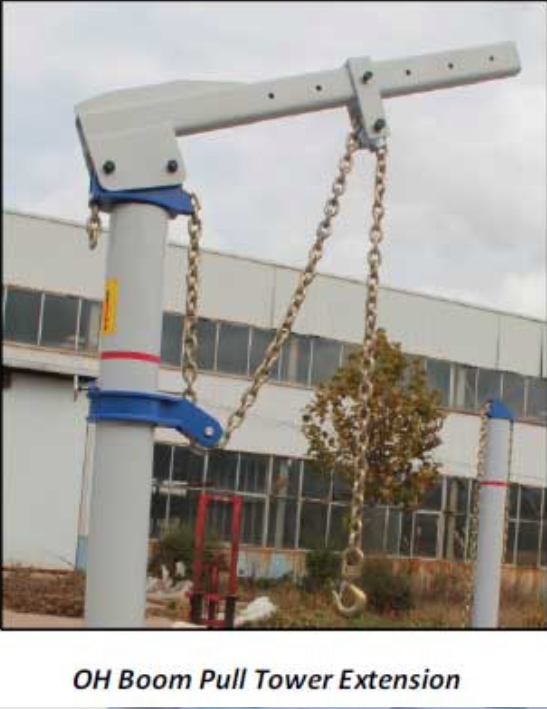

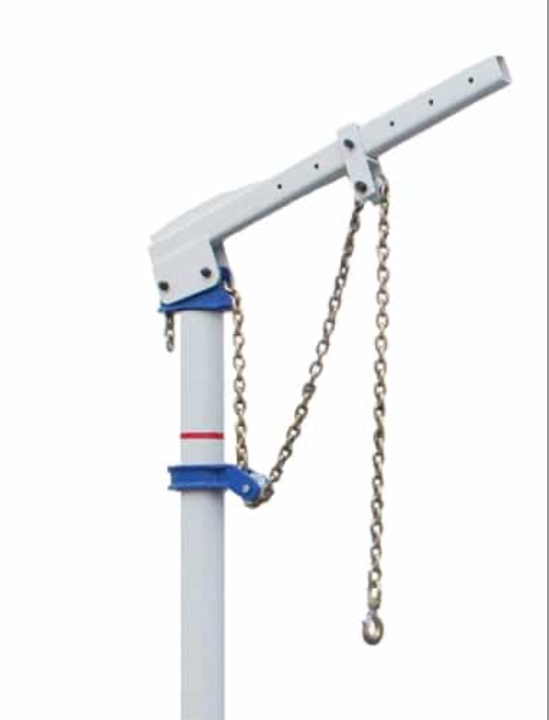

- Overhead boom pull tower extension
- Quick disconnect hydrauic fittings and hose connection
- (2ct) 10' pulling chains with hooks
- (2ct) High quality air/hydraulic pumps with pressure gauges
Accessories Included:

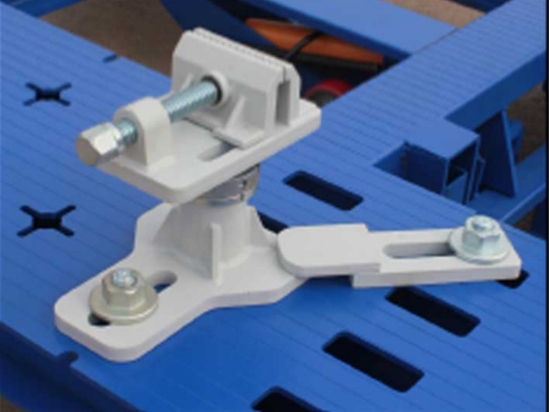

- (4ct) Adjustable height pinch weld clamp assemblies
- (2ct) Pull towers with telescoping tower heads
- (2ct) Pull chains and hooks
- (2ct) Drive-on ramps
- (2ct) High quality air/hydraulic pumps with pressure gauge
- Quick disconnect hydraulic fitting and hose connections

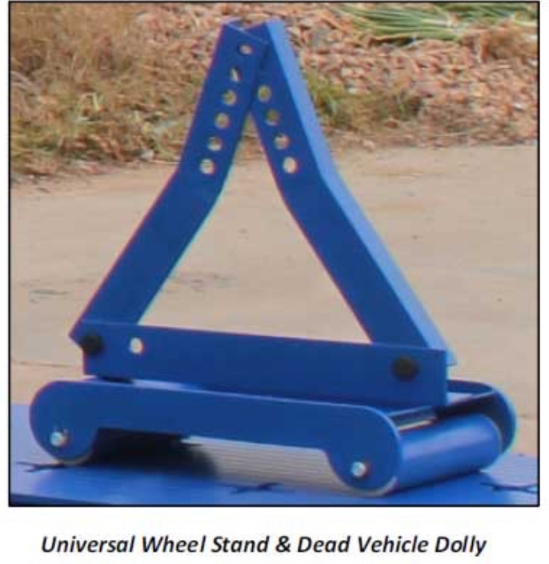

- Universal wheel stands and dead vehicle dolly
Specifications:
- Deck Design: Steel Plate
- Lifting Capacity: 7,700 LBS
- Deck Length: 18' (5500mm)
- Deck Width: 82.6" (2100mm)
- Deck Height: 19.7" (500mm)
- Pull Force Per Toer: 10-Ton (100 KN)
- Hydraulic Pressure: 10,000 PSI (70 MPa)
- Post Working Range: 360°
- Required Air Pressure: 100-120PSI (0.6 - 0.8 MPa)
- Shipping Weight: 5,071 lbs.
